SINOTRUK HOWO 4x4 ALL WHEEL-DRIVE TRACTOR TRUCK EUROII/III LHD RHD 260-420HP

Product Details:

Place of Origin:	CHINA - CNHTC
Brand Name:	SINOTRUK
Certification:	ISO 9001-2000
Model Number:	ZZ4187M3517C1

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	Negotiable
Packaging Details:	Nude
Delivery Time:	Within 25-30 days after the receipt of the deposit
Payment Terms:	L/C, T/T, T/T, L/C
Supply Ability:	100 units per week

Contact Now

Detailed Product Description

Highlight:	Prime Mover Trailer

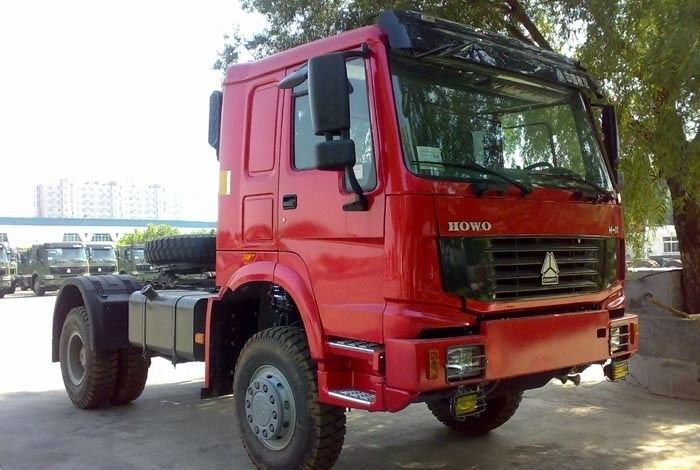

4x4 SINOTRUK HOWO ALL WHEEL-DRIVE TRACTOR TRUCK

Model		ZZ4187M3517C1
Dimension(lenght x width x height)(mm)		6110X2496X2958
Gross weight (kg)		18000
Total weight(kg)		7100
Max speed (km/h)		102
Wheelbase(mm)		3500
Engine	Mode	WD615.97C
	Rated engine power(kW/r/min)	221/1900
	Max torque (N.m/r/min)	1340/1200~1500
Clutch		φ430mm diaphragm spring clutch
Gearbox	Mode	HW13710
	Ratio	10.73 7.98 5.91 4.38 3.29 2.45 1.82 1.35 1.00 0.75 R1 10.49 R2 2.39
Drive axle		HW1249 single rear axle ,i=3.91
Steering		ZF8098
Transfer case	mode	1200
	High-grade/low-grade ratio	1.00/1.75
Brake type		service braking; dual circuit compressed air brake; parking brake(hand brake),spring energy air cut brake
Cab		HOWO76 cab
Electric system		HOWO electric system ,24V,negarive grounded
Tire		12.00-20
Fuel tank(L)		400
Option engine model		WD615.92C,WD615.97C
