Laboratory clean room

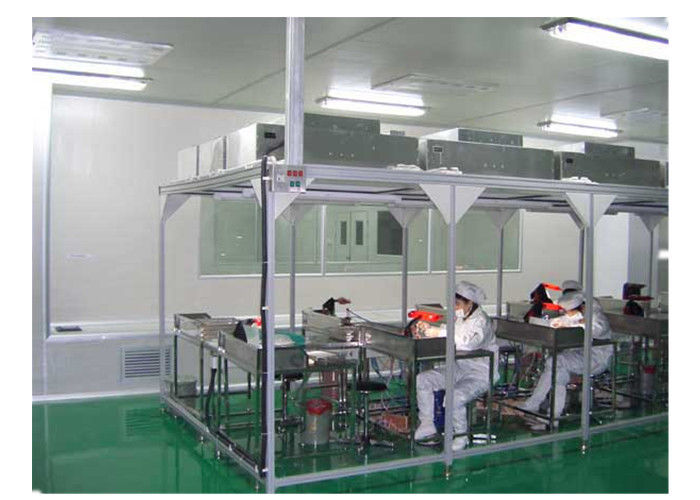

Aerospace / Electronics Softwall Clean Room Chamber With HEPA Air Filter 110V / 60HZ

A fan filter unit is a motorised unit which supplies clean, filtered air to a cleanroom. Air is drawn via the fan, through a pre-filter and then through a HEPA or ULPA filter which filters the sub-micron particles ensuring a clean and processed air supply. Using FFUs to provide localised clean air is a more energy efficient route than using a traditional Air Handling Unit (AHU) and is a more frequently adopted approach in modern cleanroom design.

Applications:

 1:Food industry,

 2: aerospace,

 3: life sciences,

 4: biotechnology,

 5: medical devices,

 6:plastic injection module,

 7: electronics assembly

  8: hospital pharmacy


Operating features

1: The ceiling enables flexible placement of fan filter unit, the empty bays cover by powder coated steel panels.
2: the construction utilizing full welded, reinforced, steel tubular sections. The frame is finished with an abrasion-resistance oven-baked powder coat, it is free-standing not require any suspending ceiling supports
3: the PVC anti-static curtain door allowing for easy passage of material and personnel in and out of the clean area. The curtain terminated at a specific distance above the floor to allow for exhaust of clean air out of the clean room.
4: Control box can rapid start up the fan filter unit and lighting.
5: Fan filter unit is the energy efficient external rotor motor design reduces operating costs and has extremely low noise and vibration levels, improving the working conditions in the clean room.
6: the high quality mini-pleats HEPA filter utilizing an improved mini-pleated separation technique to maximize surface area improves efficiency and extends the filter life.


Illustration:

1:  The frame is steel cube with milk powder coated.
2:  M support leg
3:  The wall made from clarity synthetic glass.
4:  FFU control box.
5:  FFU with HEPA filter and pre-filter
6:  Purification lamp
7:  PVC strip curtain
8:  Purification rank class100-1000 (FS209E Stander)




Technical Parameter:



Customer’s design is available.
