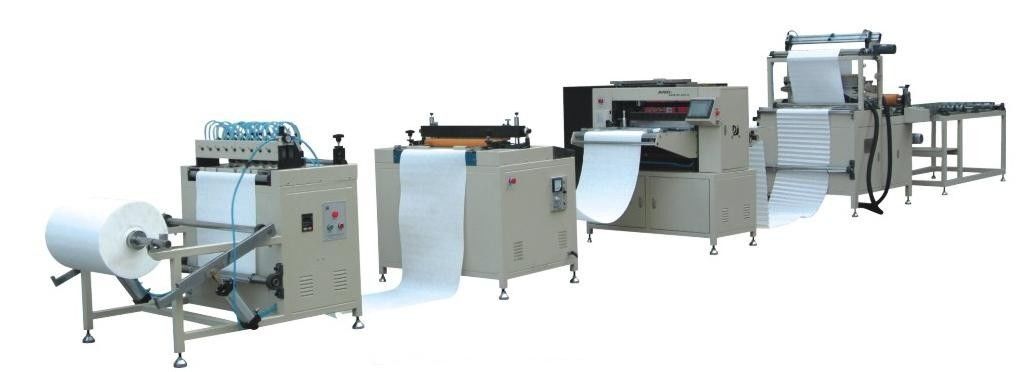

PP Air Filter Production Line with Gluing Machine , 8mm - 55mm Height

Consists

1. Auto Paper De-coiler
2. Pre-slitting Conveyor
3. Marker
4. Automatic Counter
5. Filter Paper Pleating Machine( equip with pre-heater and monitor)
6. Gluing Machine
7. Convey Belt

Specification

Model 55-600-II Pre-slitter

Marker

Pleater

Feature

1. The pre-slitting machine can accurately and freely adjust the cutting dimensions through frequency converter speed regulation and cylinder blades in different filter sizes. It is simple operated but smooth and effective. After slitting the paper, the conveyor for feeding the filter paper runs in synchronism with the marking machine by equipping the infrared monitoring system.
2. The marking machine can mark in different pleat sizes, the marking distance can be set freely by the computer screen, and accurately marking distance will be appeared with the step motor loading.
3. The pleater uses upper and lower blades to alternately finish the folding, and then different pleating heights are acquired evenly and accurately by automatically adjusting the blades distance.
4.  After marking, the filter paper will be pleated and pre-heated.
5.  The machine is also suitable for folding the iron wire fabric and non-woven fabric of by  hydraulic filter, even the multilayer folding.
6. The gluing machine, conveyer belt and the hot melt applicator are all controlled by the PLC  and monitor which is simple operation and fast speed
