Customized PU Panel Air Filter Rotary Pleating Machine 350mm Width

Customized PU Panel Air Filter Rotary Pleating Machine 350mm Width

    • Customized PU Panel Air Filter Rotary Pleating Machine 350mm Width
    • Customized PU Panel Air Filter Rotary Pleating Machine 350mm Width
    • Customized PU Panel Air Filter Rotary Pleating Machine 350mm Width
  • Customized PU Panel Air Filter Rotary Pleating Machine 350mm Width

    Product Details:

    Place of Origin: wenzhou, China
    Brand Name: CHANGJIANG
    Certification: CE,ISO 9001
    Model Number: CJPG-350

    Payment & Shipping Terms:

    Minimum Order Quantity: 1SET
    Packaging Details: PLYWOOD CASES
    Delivery Time: 50DAYS
    Payment Terms: 30% T/T payment in advance, 70% T/T payment before shipment
    Contact Now
    Detailed Product Description

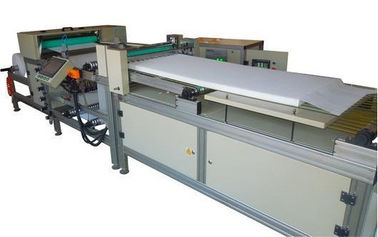

    Customized PU Panel Air Filter Rotary Pleating Machine 350mm Width



    Quick Detail:



    -  PU Air Filter Pleating Machine

    -  Rotary Machine

    -  350mm Width



    Consists



    1.  Paper De-coiler

    2.  Heater

    3.  Water Steam Device

    4.  Pleating Machine

    5.  Hot-melt Unit

    6.  Belt Conveyer

    7.  Automatic Counting



    Specification



    Width 90mm-320mm
    Pleating Height 20-58mm
    Speed 5-25m/min( adjustable)
    Temperature Range 0-300℃
    Heater Power 8.5KW
    Transmission Power of Pleater 0.75KW
    Conveyer Belt Transmission Power 0.25kw
    Working Air Pressure 0.6Mpa
    Power Supply 380V/50HZ
    M/C Weight 1100KG
    M/C Size 7500*950*1750





    Features



    1. The temperature can be predetermined in accordance with the requirement of the technological  process, when the pleating machine runs and the heater will star to work automatically.

    2.  lt quickly; the glue dispensing quantity can be easily controlled by frequency converter.

    3.  Both impression and bubble formation are finished on the identical pairs of rollers with high precision.

    4.  The work speed of the machine and transmission speed of conveyer belt are controlled by computer,    and can be easily adjustable.

    5. The rubber hose and nozzle are independently temperature controlled.



    Applications

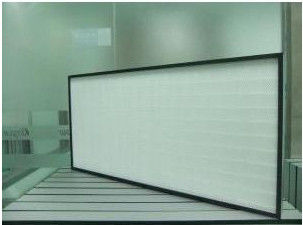

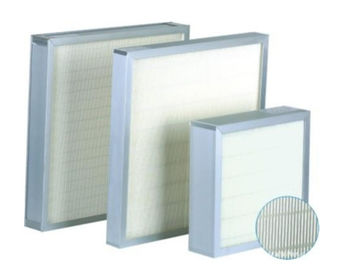

    It is technically used for manufacturing the car panel filter.



    Competitive Advantage:



    -  Fast speed

    -  Good looking of filter surface.

    -  High efficiency

    -  Korea hot melts applicator
