Water Steam Filter Making Machine , Round Panel Air Filter Rotary Pleating Machine

Water Steam Filter Making Machine , Round Panel Air Filter Rotary Pleating Machine

    • Water Steam Filter Making Machine , Round Panel Air Filter Rotary Pleating Machine
    • Water Steam Filter Making Machine , Round Panel Air Filter Rotary Pleating Machine
  • Water Steam Filter Making Machine , Round Panel Air Filter Rotary Pleating Machine

    Product Details:

    Place of Origin: wenzhou, China
    Brand Name: CHANGJIANG
    Certification: CE,ISO 9001
    Model Number: CJPG-350

    Payment & Shipping Terms:

    Minimum Order Quantity: 1SET
    Packaging Details: PLYWOOD CASES
    Delivery Time: 50DAYS
    Payment Terms: 30% T/T payment in advance, 70% T/T payment before shipment
    Contact Now
    Detailed Product Description

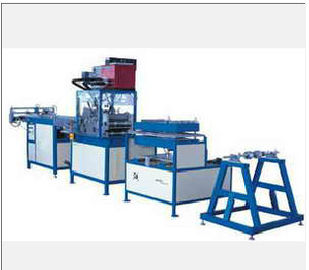

    Water Steam Filter Making Machine , Round Panel Air Filter Rotary Pleating Machine







    Quick Detail:



    -  Round Panel Air Filter Pleating Machine

    -  Rotary Machine

    -  350mm Width

    - With Water Steam

    - With Heating System





    Consists



    1.  Automatic Counting

    2.  Paper De-coiler

    3.  Pleating Machine

    4.  Heater

    5.  Hot-melt Unit

    6.  Water Steam Device

    7.  Belt Conveyer





    Specification



    Width 90mm-320mm
    Pleating Height 20-58mm
    Speed 5-25m/min( adjustable)
    Temperature Range 0-300℃
    Heater Power 8.5KW
    Transmission Power of Pleater 0.75KW
    Conveyer Belt Transmission Power 0.25kw
    Working Air Pressure 0.6Mpa
    Power Supply 380V/50HZ
    M/C Weight 1100KG
    M/C Size 7500*950*1750





    Features



    1.  lt quickly; the glue dispensing quantity can be easily controlled by frequency converter.

    2. The temperature can be predetermined in accordance with the requirement of the technological process, when the pleating machine runs and the heater will star to work automatically.

    3.  Both the work speed of the machine and transmission speed of conveyer belt are controlled by computer, and can be easily adjustable.

    4.  Pressure control unit in glue feeding circuit to ensure the circuit safety.

    5.  Adopts the water steam device, which is advantageous to prevent the paper from breaking when it is marked by rollers.

    6.  Both impression and bubble formation are finished on the identical pairs of rollers with high precision.

    7.  Both the rubber hose and nozzle are independently temperature controlled.





    Applications

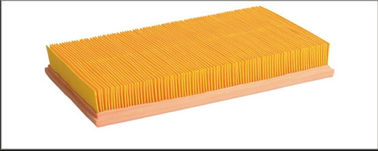

    It is technically used for manufacturing the car panel air filter.



    Competitive Advantage:



    -  Fast speed

    -  Good looking of filter surface.

    -  High efficiency

    -  Korea hot melts applicator
