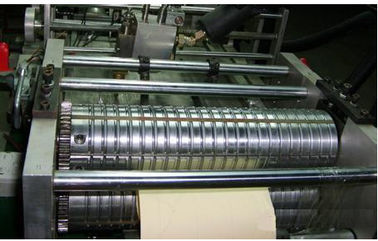

Round Panel Air Filter Making Machine 350mm Rotary Pleating Machine

Round Panel Air Filter Making Machine 350mm Rotary Pleating Machine

  • Round Panel Air Filter Making Machine 350mm Rotary Pleating Machine
Round Panel Air Filter Making Machine 350mm Rotary Pleating Machine
Product Details:
Place of Origin: wenzhou, China
Brand Name: CHANGJIANG
Certification: CE,ISO 9001
Model Number: CJPG-350
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Packaging Details: PLYWOOD CASES
Delivery Time: 50DAYS
Payment Terms: 30% T/T payment in advance, 70% T/T payment before shipment
Contact Now
Detailed Product Description
High Light:

Pleater Machine

,

Filter Machines



Round Panel Air Filter Making Machine 350mm Rotary Pleating Machine





Quick Detail:



-  Round Panel Air Filter Pleating Machine

-  Rotary Machine

-  350mm Width

-  With Water Steam

-  With Heating System





Consists



1.  Automatic Counting

2.  Paper De-coiler

3.  Pleating Machine

4.  Heater

5.  Hot-melt Unit

6.  Water Steam Device

7.  Belt Conveyer





Specification



Width 90mm-320mm
Pleating Height 20-58mm
Speed 5-25m/min( adjustable)
Temperature Range 0-300℃
Heater Power 8.5KW
Transmission Power of Pleater 0.75KW
Conveyer Belt Transmission Power 0.25kw
Working Air Pressure 0.6Mpa
Power Supply 380V/50HZ
M/C Weight 1100KG
M/C Size 7500*950*1750





Features



1.  lt quickly; the glue dispensing quantity can be easily controlled by frequency converter.

2. The temperature can be predetermined in accordance with the requirement of the technological process, when the pleating machine runs and the heater will star to work automatically.

3.  Both the work speed of the machine and transmission speed of conveyer belt are controlled by computer, and can be easily adjustable.

4.  Pressure control unit in glue feeding circuit to ensure the circuit safety.

5.  Adopts the water steam device, which is advantageous to prevent the paper from breaking when it is marked by rollers.

6.  Both impression and bubble formation are finished on the identical pairs of rollers with high precision.

7.  Both the rubber hose and nozzle are independently temperature controlled.





Applications



It is technically used for manufacturing the car panel air filter.



Competitive Advantage:



-  Fast speed

-  Good looking of filter surface.

-  High efficiency

-  Korea hot melts applicator
