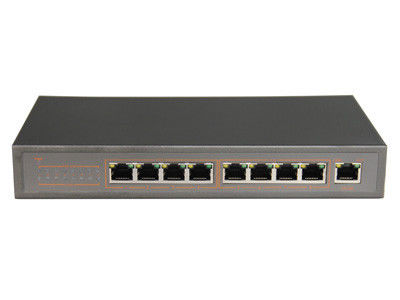

Reliable CCTV Camera Spare Parts , Compact 8 Ports POE Switch
Introduction:
The PoE switch provides power and data from a single point,using Power over Ethernet(PoE)over a single Cat-5 cable.LS5000 series can be used for any 10/100Mbps link and supply industry-standard IEEE 802.3af power.Advanced auto-sensing algorithm gives power to 802.3af end devices,In addition,the PoE seitch automatically determines PoE requirements,speed,duplex,and cable type using AutoUplink.Easy to operate and reliable.
The PoE switch is ideal for powering PoE devices such as IP cameras,WLAN access points,IP phones,office access control systems,and other PD devices and offers a line of high quality products that provide a total solution for ethernet application in different environments.
Key Features:
• Fully IEEE802.3af/IEEE802.3at standard compliant
• Support PoE power up to 15.3W/25.5W for each PoE ports
• Auto detect powered device(PD)
• Long distance PoE data transmission.(80m)
• Safe and reliable power to most of PoE end device
• Lighting-proof and Compact design
• Plug & Play.No configuration required
• Reliable and great value
|
Technology
|
|
Netword Standards
|
IEEE 802.3i 10BASE-T
IEEE 802.3u 100BASE-Tx
IEEE 802.3x Flow Control
IEEE 802.3af/at Power over Ethernet
|
|
PoE power
|
15.4W/25.5W per port(IEEE802.3af/IEEE802.3at)
Wiring:Data & power provided over pairs 1/2 and 3/6 or 4/5(+) and 7/8(-)
Cable:UPT cat.5 or higher
|
|
Processing types
|
Store-and-forward
Half-duplex back pressure and IEEE802.3x full-duplex flow control
|
|
Address database Table Size
|
8000MAC address
|
|
Buffer memory
|
48Kb embedded memory per unit
|
|
Netword Latency
|
Less than 20μs for 64-byte frames in Store-and-forward mode for 100Mbps to 100Mbps transmission
|
|
Power
|
|
Input
|
48VDC input
|
|
PoE power consumption
|
15.4W/25.5W per port(IEEE802.3af/IEEE802.3at)
|
|
Overload current protection
|
Present
|
|
Mechanical
|
|
Casing
|
Metal case
|
|
Dimension
|
215(L) * 106(W) * 33(H)mm
|
|
Weight
|
0.63KG
|
|
Installation
|
Rack mounting
|
|
Interface
|
|
LED Indicators
|
System:Power,PoE Maximum power
Per port:Link.Activity,.Speed,PoE active,PoE error
|
|
Environment specification
|
|
Operating temperature
|
0-55°C(32-104°F)
|
|
Storage temperature
|
-10-70°C(14-158°F)
|
|
Operating humidity
|
90% maximum relative humidity,non-condensing
|
|
Storage humidity
|
95% maximum relative humidity,non-condensing
|
|
Regulatory Approval
|
|
ISO
|
Manufactured in ISO9001 facility
|
|
Safety
|
CE/RoHS/FCC
|
Introduction:
BOSCOM TECHNOLOGY CO., LIMITED is a professional designer, manufacturer and exporter of professional high end, CCTV cameras, we introduce
technology and management from Taiwan, combine the Mainland, providing super high quality products at
competitive price.
We have high-tech facilities like dust-free room, dark room (simulate outdoor surrounding with no light reflection );
we use high -tech equipments like vector scope and wave oscilloscope; standard FL pattern box; high resolution
monitor constant temperature oven; light wave length and light intensity testing instrument etc. To ensure
production efficiency, and product guaranteed quality under 1‰. And we offer an industry leading with CE,
FCC and Rohs etc. Certificate.
BOSCOM not only designs and produces under our own brand "BOSCOM", but also offers OEM service for
other brands, with more than 200 elitists working in a 1500 square meters workshop, we is growing rapidly
as come out top corporation in China security industry.
Warranty:
◆ We guarantee all products are sold new.
◆ Full life warranty.
◆ Broken product we will replace new or refund providing there is no evidence of customer misuse or
alteration in two months from purchase day.
◆ Over two months, we confirm the broken situation first, then maintain or replacing accessories for customer.
Especial free service:
◆We can test the samples for you in China mainland, and will feedback real test result on time. Avoid you paid lots
of sample charge but without good effect.
◆We can process shipment together, collect or allocate from/to different supplier. Avoid you shipping lots of goods
& faulty items from/to diff supplier.
◆We can check the supplier or pay money for you, avoid you pay money to a unknown supplier who can not be
trust.
◆We can offer telephone, e-mail and network conversation technical support on products purchased. We can
working-out engineering project, answer the technique question.
Consignment:
We stock over 50 models and available for immediate delivery, other product delivery time need 3-4 days only. We
will use Fast courier service, such as FEDEX, TNT, DHL etc. You may submit your own courier account no. Or
advise you want courier, as: airway or sea way. You normally can expect to receive your items within 1-7 working
days.
