Steel Cage C3 C0 51306 Single Row Thrust Bearing For Auto Spare Parts

Steel Cage C3 C0 51306 Single Row Thrust Bearing For Auto Spare Parts

  • Steel Cage C3 C0 51306 Single Row Thrust Bearing For Auto Spare Parts
  • Steel Cage C3 C0 51306 Single Row Thrust Bearing For Auto Spare Parts
Steel Cage C3 C0 51306 Single Row Thrust Bearing For Auto Spare Parts
Product Details:
Place of Origin: Jiangsu , China
Brand Name: LBLS
Certification: SGS
Model Number: 51306
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: Negotiation
Packaging Details: Standard packaging or as customer's request
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50,000pcs per month
Contact Now
Detailed Product Description
The Number Of Rows: Single Material: Bearing Steel
Rolling Body: Ball Bearings Outer Dimension: Small (28-55mm)
Spherical: Non-Aligning Bearings Load Direction: Thrust Bearing
Separated: Separated Size: 30*60*21mm
Hs Code: 8482104000 Export Market: Globle
Mass: 0.265kg Type: Ball
Structure: Deep Groove Certification: ISO9001
High Light:

metal Bearing

,

Industrial Bearing



Auto Spare Parts , Thrust Ball Bearing 51306 Chrome Steel  P0 , P4 , P5 , P6



Specifications :



Model Number

51306

Structure

Thrust

Type

Ball

Bore Size

30(mm)

Outside Diameter

60(mm)

Width

21(mm)

Material

Bearing steel (gcr15)

Features  High quality and high speed
Seals Type Open

Cage material

 Nylon , steel , brass

Clearance

 C0 , C2 , C3 , C4 , C5

Precision Rating

 P0 , p6

Greese

 As you requirement

Number of Row

 Single Row



Steel Cage C3 C0 51306 Single Row Thrust Bearing For Auto Spare Parts 0Steel Cage C3 C0 51306 Single Row Thrust Bearing For Auto Spare Parts 1



Descriptions :



Model Number: 51306
Structure: Thrust
Type: Ball
Bore Size: 30 mm
Outside Diameter: 60 mm
Precision Rating: P0, P4, P5, P6,
Number of Row: Single Row

Packing: As Requirement
Place of Origin: Jiangsu China (Mainland)
HS Code: 8482104000
Production Capacity: 50000 PCS/ Month

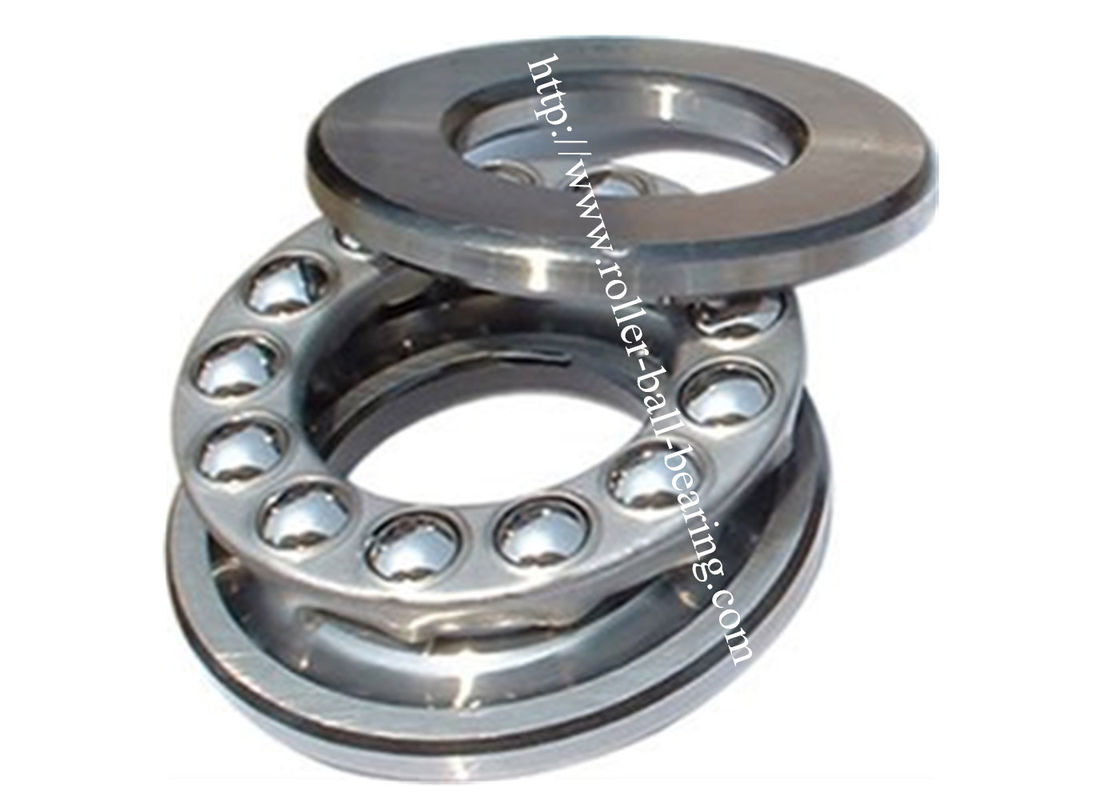

Thrust ball bearings consist of two precision chrome steel washers (ring) and a ball complement spaced by bronze retainer. They can be supplied with or without radius ball grooves in the rings. Thrust bearings are used under purely axial loads. Thrust ball bearings can handle loads in the axial direction only.

Bearing rings mounted on the shaft are called shaft washers, and those mounted in the housing are called housing washers. Both washers contain raceways for the balls. Thrust ball bearings are available as both single and bi-directional types.

The bi-directional thrust bearing incorporates a third washer and an additional set of balls. This center washer is located in the axial direction by a shaft shoulder and sleeve. Care must be taken in handling to prevent damage to the separable rings and ball assemblies.

Thrust bearings are used to support axial loads, such as vertical shafts. Spherical, conical or cylindrical rollers are used; And non rolling element bearings such as hydrostatic or magnetic bearings see some use where particularly heavy loads or low friction is needed.


Application

Heavy machinery (construction and mining machines), rolling mills, gear boxes and shaker screens

Certifications

 ISO 9001:2008

Brand Name

LBLS

Service

 LBLS service and design service

Delivery Detail

 Within 3-5 days after your payment

Package

 Standard packaging or as customer's request

Sample

 Free provide

Payment A

30% T/T deposit,the balance be paid before shipping

Payment B

 100% L/C at sight

Payment C

Small order by Express



Features



1. High precision, good quality


2. Long life


3. Low noise


4. Reasonable price


5. Best after sales service



511series products Info



Product Details


1.

Products Name:

Thrust Ball Bearing

2.

Structure:

Thrust

3.

Type :

Ball
d 30mm
D 60mm
H 21mm
weight 0.267kg

4.

RingMaterial:

Chrome steel-GCr15, high Carbon steel-GCR11,Stainless steel-440C,304 316

5.

PrecisionRating

P0,P6,P5,P4

6

Seals Type

RS, 2RS, R2, Z, 2Z, 2RZ etc

7

Vibration

V1, V2, V3, V4

8

Brands:
LBLS

9

Model


51100series; 23000B series etc.The same size can be made of different materials,

including:
Stainless Steel thrust ball bearings
Chrome Steel  thrust ball bearings
Ceramic  thrust ball bearings


10

Certificate

ISO9001:2000

11.

Features


Thrust ball bearings consist of two precision washers (rings) and a ball complement

 spaced by retainer.

 They can besupplied with or without radius ball grooves in the rings.

Thrust ball bearings are used under purely axial loads, and its speed is limited.

According to the capability it falls into Single Direction Thrust Ball Bearings and

 Double Direction Thrust Ball Bearings,
our thrust ball bearings are the particular type of the Single Direction Thrust Ball

Bearings.




12.

Application


 RC models, Automotive, electric motors, home appliances, construction machinery

, transmission shafts, gear shafts,
pups, Bicycle and various kinds of  professional machinery.





13.

Delivery Time

1-30days

14.

Package


1.Commercial packaging : plastic bag to color box to cartons and paked

in plywood case or pallet before shipment.
2.Industrial packaging : polybag , blank box , carton .
3.Other packaging : as to customers' requirement .


15.

Price

FOB,CFR ,CIF Price

16.

Payment Terms

1. 100% irrevocable L/C at sight 2.T/T



Other sizes available , as follows :



The bearing Type Specifications Cage Material
New model Old model d*D*B(mm)
51100 8100 10*24*9 Steel
51101 8101 12*26*9 Steel
51102 8102 15*28*9 Steel
517/15.2ZHV 98102 15.2*30.4*10 Steel
51103 8103 17*30*9 Steel
51104 8104 20*35*10 Steel
51105 8105 25*42*11 Steel
51106 8106 30*47*11 Steel
51107 8107 35*52*12 Steel
KOW51107 108107 35*55 Steel
51108 8108 40*60*13 Steel
51109 8109 45*65*14 Steel
KOW51109 108109   Steel
LIW51109 208109 45*65*10.57 Steel
51110 8110 50*70*14 Steel
51111 8111 55*78*16 Steel
51112 8112 60*85*17 Steel
51113 8113 65*90*17 Steel
51114 8114 70*95*18 Steel
51115 8115 75*110*19 Steel
51116 8116 80*105*19 Steel
51117 8117 85*110*19 Steel
51118 8118 90*120*22 Steel
51119 8119   Steel
51120 8120 100*130*25 Steel
51122 8122 110*145*25 Steel
51124 8124 120*155*25 Steel
51126 8126 130*170*30 Steel
51128 8128 140*180*31 Steel
