Beijing Automobile Spare Part Co.,Ltd.
High quality, Best service,Reasonable price.
Place of Origin: | China |
Brand Name: | LEI HUI |
Certification: | ISO9001 |
Model Number: | 6203 |
Minimum Order Quantity: | 1PC |
---|---|
Price: | negotiation |
Packaging Details: | Middle box+Outer carton |
Delivery Time: | According to your order |
Payment Terms: | T/T |
Supply Ability: | 500,000-1,000,000PCS/Year |
Vibration: | Z1V1,Z2V2,Z3V3 | Cage: | Stamping Steel,Brass,Nylon |
---|---|---|---|
Material: | Gcr15,Stainless Steel,Carton Steel,Plastic,Ceramic | Precision Rating: | P0,P6,P5 |
Clearance: | C0 C1 C2 C3 | Sealed Type: | 2Z,2RS,RS |
Vibration: | Z1V1,Z2V2,Z3V3 | ||
High Light: | single row deep groove ball bearing,precision ball bearings |

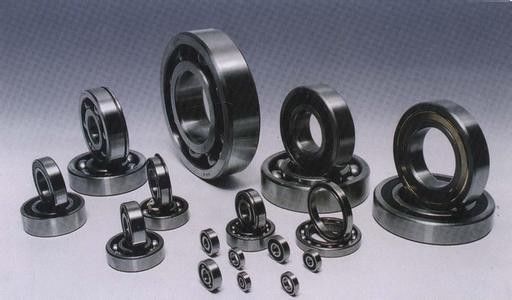

Vehicle Spare Parts Gcr15 6203 - 2RS Ball Bearing for transmission
Description:
Deep groove ball bearing is a kind of the most common rolling bearing. The basic type of deep groove ball bearing is composed of an outer ring, a ring, a group of steel ball and a group of retainers. Deep groove ball bearing has a single row and double row two types, and also has sealed bearing and open bearing, open refers to the bearing without sealing structure,sealing type deep groove ball into the dust seal and oil seal. Dust seal cover material for steel plate stamping, plays only a simple prevent dust from entering the bearing raceway. Oil proof type contact type oil seal, can effectively prevent bearing grease inside the spillover.
Applications:
Deep groove ball bearing can be used for transmission, instruments and meters, electric machinery, household electrical appliances, internal combustion engines, transportation vehicles, agricultural machinery, construction machinery, engineering machinery, roller skate,yo-yo etc.
Specifications:
New model | Diameter | Weight | ||
d (mm) |
D (mm) |
B (mm) |
W (kg) |
|
6200 | 10 | 30 | 9 | 0.031 |
6201 | 12 | 32 | 10 | 0.036 |
6202 | 15 | 35 | 11 | 0.043 |
6203 | 17 | 40 | 12 | 0.065 |
6204 | 20 | 47 | 14 | 0.104 |
6205 | 25 | 52 | 15 | 0.147 |
6206 | 30 | 62 | 16 | 0.205 |
6207 | 35 | 72 | 17 | 0.285 |
6208 | 40 | 80 | 18 | 0.37 |
6209 | 45 | 85 | 19 | 0.408 |
6210 | 50 | 90 | 20 | 0.46 |
6211 | 55 | 100 | 21 | 0.60 |
6212 | 60 | 110 | 22 | 0.8 |
6213 | 65 | 120 | 23 | 1.05 |
6214 | 70 | 125 | 24 | 1.13 |
6215 | 75 | 130 | 25 | 1.16 |
6216 | 80 | 140 | 26 | 1.49 |
6217 | 85 | 150 | 28 | 1.81 |
deep groove ball bearing
6000series
6000,6001,6002,6003,6004,6005,6006,6007,6008,6009,6010,6011,6012,6013,6014,6015,6016,6017,
6018,
6200series
6200,6201,6202,6203,6204,6205,6206,6207,6208,6209,6210,6211,6212,6213,6214,6215,6216,
6300series
6300,6301,6302,6303,6304,6305,6306,6307,6308,6309,6310,6311,6312,6313,6314,6315,
6400series
6403,6404,6405,6406,6407,6408,6409,6410,6411,6412,6413,6414,6415,6416,6417,6418,6419,6420
Thin-section deep groove ball bearings
6700ZZS,6800ZZ,63800ZZ,6900ZZ,6701ZZS,6801ZZ,63801ZZ,6901ZZ,6702ZZS,6802ZZ,63802ZZ,6902ZZ,
6703ZZS,6803ZZ,63803ZZ,6903ZZ,6704ZZS,6804ZZ,63804ZZ,6904ZZ,6805ZZ,63805ZZ,6905ZZ,6806ZZ,
3806ZZ,6906ZZ,6807ZZ,6907ZZ,6808ZZ,6908ZZ,6809ZZ,6909ZZ,6810ZZ,6910ZZ,6811ZZ,6911ZZ,6812ZZ,
6912ZZ,6813ZZ,6913ZZ,6814ZZ,6914ZZ,6815ZZ,6915ZZ,6816ZZ,6916ZZ,6817ZZ,6917ZZ,6818ZZ,6918ZZ
16000series
16001,16002,16003,16004,16005,16006,16007,16008,16009,16010,16011,16012,16013,16014,16015,
16016,16017,16018,16019,16020,
Inch R-series
R156,R166,R3,R3A,R168,R188,R4,R4A,R6,R1212ZZ,R8ZZ,RLS4ZZ,RMS4ZZ,R1458ZZ,R10ZZ,RLS5ZZ,
RMS5ZZ,R1634ZZ,R12ZZ,RLS6ZZ,RMS6ZZ,R14ZZ,RLS7ZZ,RMS7ZZ,R16ZZ,RLS8ZZ,RMS8ZZ,R18ZZ,
RLS9ZZ,RMS9ZZ,R20ZZ,RLS10ZZ,RMS10ZZ,R22ZZ,RLS11ZZ,R24ZZ,RLS12ZZ,
1600series
1601,1602,1603,1604,1605,1606,1607,1614,1615,1616,1620,1621,1622,1623,1628,1630,1633,1635,
Double row (4200A,4300A)
4200,4201,4202,4203,4204,4205,4206,4207,4208,4228,4210,4301,4302,4303,4304,4305,4306,4307,
4308,4309,4310
W6000,W6200,W6300 series
W6000,W6001,W6002,W6003,W6004,W6005,W6006,W6007,W6200,W6201,W6202,W6203,W6204,
W6205,W6206,W6207,W6208,W6209,W6210,W6211,W6300,W6301,W6302,W6303,W6304,W6305,
W6306,W6307,W6308,W6309,
62200 series
62200,62201,62202,62203,62204,62205,62206,62207,62208,62209,62210,62211,62212,62213,62214,
62215,62216,62217,62218,62219,62220,
62300 series
62300,62301,62302,62303,62304,62305,62306,62307,62308,62309,62310,2311,62312,62313,62314,
62315,62316,62317,62318,62319,
85000,86000 series
87500,87501,87502,87503,87504,87505,87506,87507,87508,87509,87510,87602,87603,87604,87605,
87606,87607,87608,87609,
60/** 62/** 63/** W*** series
60/22,60/28,60/32,62/22,62/28,62/32,63/22,63/28,63/32,279,317,319,348,382,98205,98206,98305,W204,W205,6303ZZV,6204ZZV,6005ZZV,6505,6908,
Competitive advantages:
Our company product and export bearings for 20years,so we have a deep knowledge of bearing.we can guarantee the quality and the price ,and we ensure our production can meet your requirement. In addition ,we can manufacture the production according your requirement.
Our company main production:
Deep Groove Ball Bearing / Angular Contact Ball Bearing/ Taper Roller Bearing/ Spherical Roller Bearing /Cylindrical Roller Bearing / Thrust Ball Bearing /Thrust Roller Bearing /Self-aligning ball bearing/Self-aligning roller bearing/Pillow Block Bearing /Needle Roller Bearing /Tracking Roller Bearing/ Auto Bearing Etc.
Welcome to inquire bearing.
Your inquiry related to our product & price will be replied within 24 hours.
