Beijing Automobile Spare Part Co.,Ltd.
High quality, Best service,Reasonable price.
Place of Origin: | China |
Brand Name: | MW |
Certification: | ISO |
Model Number: | 5, 25H, 25SH |
Minimum Order Quantity: | 1000m |
---|---|
Price: | Negotiation |
Packaging Details: | Standard sea worthy package |
Delivery Time: | Negotiation |
Payment Terms: | T/T, L/C |
Supply Ability: | 1000000M/week |
High Light: | automatic transmission components,precision transmission parts |
---|

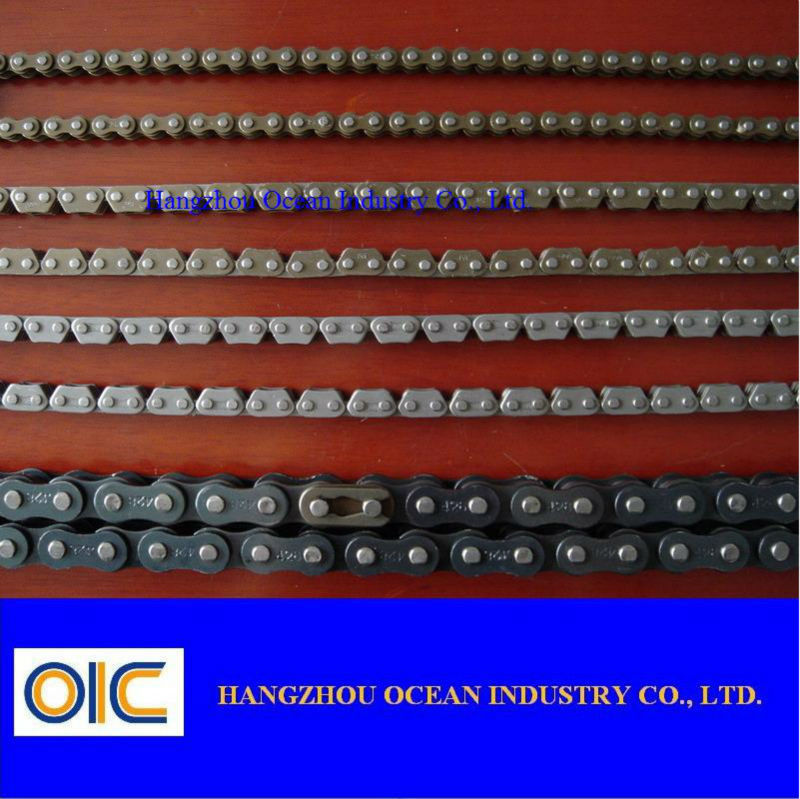

OEM Transmission Spare Parts , Stainless Steel Motorcycle Drive Chain
Quick Detail:
Motorcycle chain
40Mn material
ANSI, BS, DIN and JIS etc standard
With high quality and competitive price
Prompt delivery
Packing as per customer’s demand.
Description:
1) Material: 40Mn
2) Color: nature, black, blue, yellow
3) Advanced heat treatment process, mesh belt conveyor furnace use, chain dry machine
4) Standard: ISO/ DIN /ANSI
5) Pre stretch and anti fatigue to make chain life longer
6) Manufacture and OEM
7) Packing : 1pc/pp bag, white or color inner box, then pack in standard export carton or wooden case, also can packing as your requirement
Our main products as the following:
1) Motorcycle timing chains: 25, 25H, 25SH
2) Motorcycle driven chains: 415,415H,415P,420,420H,420P,428,428H,428P,520,520H,520P,530,530H,530P,630 and series of super reinforced chain.
3) Motorcycle O-ring chain: 520-O,525-O,530-O,420H-O,428H-O,520H-O,525H-O,530H-O
4) Motorcycle HD Non-O-ring chain: 428HD,520HD,525HD,530HD,630HD
5) Motorcycle Super O-ring chain: 520-SO,525-SO,530-SO,420H-SO,428H-SO,520H-SO,525H-SO,530H-SO
6) Motorcyle silent chain: CL04A2x3, CL04A3x4, CL04A4x5, CL04A2x3, CL04A3x4, CL04A4x5
7) Automotive engine timing roller chain: 06BT-1,06BT-2,06BN-1,06BH-1,06BH-2,06BH.a-2,05E-1,05H-1,05H-2,05BT-1,05BT-2
8) Automotive engine timing bush chain: 04M-1,04M-2,219HT-1,T8F-1,05CT-1,05D-2,C06C-2,06CT-1,06CN-1,06CB-1,06CG-1,06CT-2,06CT.a-2,06CN.a-2,06D-2
9) Automotive engine timing slient chain: SCR04F-9,SCR04G-9,SCR04H-9,SCR04E-9,CL04H-9,CL04Y-9,CL04F-9,SC03-8,SCR05F-8,SCR05-9,SCR05-15,SCR06E-8
Applications:
Our motorcycle chain are use in all kinds of motorbike like Honda, Yamaha, Suzuki, Kawasaki and so on .
Specification:
ZHC Chain No. |
Pitch |
Roller diameter |
Width between inner plates |
Pin diameter |
Pin length |
Inner plate depth |
Plate thickness |
Ultimate tensile strength |
Average tensile strength |
Fatigue |
|
p |
d1 max |
b1 min |
Ld2 max |
max |
Lc max |
h2 max |
T1 |
Q min |
Q0 |
amx |
|
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
kn |
kn |
kgf |
|
06B |
9.525 |
6.35 |
5.72 |
3.28 |
13.2 |
14.2 |
8.2 |
1.3 |
9 |
10 |
|
415 |
12.7 |
7.75 |
4.88 |
3.96 |
12.5 |
13.9 |
10.4 |
1.3 |
11.6 |
12.5 |
380 |
415H |
12.7 |
7.75 |
4.88 |
3.96 |
13.1 |
14.5 |
11.5 |
1.5 |
15.6 |
16.1 |
380 |
420 |
12.7 |
7.77 |
6.35 |
3.96 |
14.5 |
16.1 |
12 |
1.5 |
16 |
16.5 |
380 |
420H |
12.7 |
7.77 |
6.35 |
3.96 |
15.7 |
17.4 |
12 |
1.8 |
17 |
17.5 |
380 |
428 |
12.7 |
8.51 |
7.75 |
4.45 |
16.5 |
18.05 |
12 |
1.6 |
17.8 |
18.5 |
380 |
428H |
12.7 |
8.51 |
7.75 |
4.45 |
18.3 |
19.08 |
12 |
2.03 |
20.6 |
21.1 |
450 |
428HG |
12.7 |
8.51 |
7.75 |
4.51 |
18.9 |
20.1 |
12.3 |
2 |
20.6 |
21.5 |
450 |
520 |
15.875 |
10.16 |
6.35 |
5.08 |
17.7 |
19 |
15 |
2 |
26.5 |
29.5 |
650 |
520H |
15.875 |
10.16 |
6.35 |
5.24 |
18.9 |
20.5 |
15 |
2.42 |
30 |
31 |
700 |
525 |
15.875 |
10.16 |
7.94 |
5.08 |
18.8 |
20.5 |
15 |
2.03 |
26.6 |
29 |
650 |
525H |
15.875 |
10.16 |
7.74 |
5.24 |
20.4 |
22.2 |
15 |
2.42 |
30 |
31 |
700 |
530 |
15.875 |
10.16 |
9.4 |
5.08 |
20.9 |
22.2 |
15 |
2 |
26.5 |
29.7 |
650 |
530H |
15.875 |
10.16 |
9.4 |
5.08 |
21.9 |
24.2 |
15 |
2.42 |
30 |
31.5 |
700 |
630 |
19.05 |
11.91 |
9.4 |
5.94 |
22.2 |
24 |
18 |
2.4 |
35 |
37 |
800 |
Competitive Advantage:
More than 20 years advanced technology and experience of us will give strong support for the motorcycle chain you need. We will understand your need of product quickly, and give quick respond and good service. A lot of cases of our products will show you that it worth your trust.
Under the full quality control system, our products go through the precise product line and strict testing process. We have excellent working flow and standard to ensure stability, products reliable enough for using.
Take our scale economy, raw material superiority, and sincerity for clients to account, our price do have a great competitiveness. They are good value and cost effective than your imagine.
We sincerely hope establishing long and friendly business relations with clients from all over the world. Our goal is not just providing product, but also providing a complete solution including product design, tooling, fabrication and service for our customers to achieve their upmost satisfaction.
