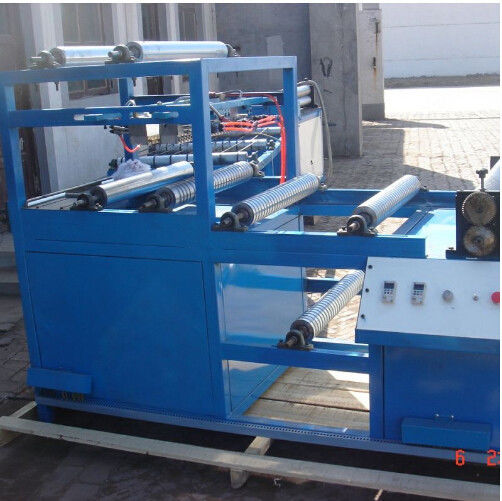

Full-Auto Combined HEPA Pleating Machine with Hot Melt Applicator ,Pleating Height 100-300mm

Full-Auto Combined HEPA Pleating Machine with Hot Melt Applicator ,Pleating Height 100-300mm

Full-Auto Combined HEPA Pleating Machine with Hot Melt Applicator ,Pleating Height 100-300mm

Product Details:

Place of Origin: Wenzhou, China
Brand Name: CHANGJIANG
Certification: CE ISO9001
Model Number: CJWG-1300-II

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Packaging Details: Standard export package
Delivery Time: 30 Days after deposit
Payment Terms: 30% T/T payment in advance, 70% T/T payment before shipment
Contact Now
Detailed Product Description
Usage: Fiber Glass Mini Pleating Nozzles: 48PCS
Hotmelt Tank: Customized Machine Width: 1300mm
Material: Stainless Steel Pleating Height: 100-300mm

Full-Auto Combined HEPA Pleating Machine with Hot Melt Applicator ,Pleating Height 100-300mm





General Description


1.The production line is customized to pleat the filter media with hot melt dispensing at the same time by servo motor control.

2.This machine combines the rotary pleating and knife pleating together to ensure a good pleating to all kinds of material;


Machine Components


1. De-coiler
2. Online slitting device
3. Pre-marking device
4. Hot melt system
5. Knife pleating system
6. Collecting system

Specifications

1. De-coiler


A. Working width: 1200mm;
B. Shaft with locking bolts: 65mm diameter;
C. Max load: 150kg;
D. Max roll diameter: 1000mm
E. Motor driven (customized): 0.75Kw
F. Tension control device
G. Machine weight: 300Kg
H. Machine size: 1300mm*950mm*1300mm

2. Online slitting device


A. Working width: 1200mm
B. Six pneumatic slitting knives (two with round blades and four with notch blades)
C. Pressure: 0.6Mpa
D. Adjustable slitting width
E. Speed: 0.5m-12m/min (adjustable);
F. Machine weight: 350Kg
G. Machine size: 1000mm*1500mm*1100mm

3. Pre-marking device-equipped with hot melt system together


A. Working width: 1200mm
B. Marking distance: 100-300mm;
C. Motor power: 3.75Kw
D. Machine weight: 400kg

4. Hot melt system


A. Tank capacity: 60L (two sets)
B. Hose length: 3.6m-four units
C. Motor Power: 400W
D. Melting power: 8Kw
E. Melting speed: 45kg/h;
F. Max dispensing quantity: 1000g/min;
G. Gear pump: 12cc/rev;
H. Max RPM of pump: 45RPM;
I. Max melting temperature: 230 degree
J. Hot melt type: PE/EVA/PP/PO
K. 48 nozzles each side; Each nozzle has a separate module and one set of modules are controlled by four solenoid valves (MAC USA);
L. Gluing option: Two sides; One side; Continuously, intermittently; Auto; Manual;
M. Nozzle size: 0.8mm
N. 0.6Mpa pressure;
O. Machine weight: 450kg/set;
P. Machine size: 1200mm*1600mm*1700mm

5. Knife pleating system


A. Pleating height: 100-300mm (servo control-auto adjustment)
B. Speed: 0-150pleats/min (adjustable)
C. Motor power: 3.75Kw
D. Heating power: 4Kw (pre and post heating-aluminum plate)
E. Heating temperature: 20-200 degree (adjustable)
F. Air pressure: 0.6Mpa;
G. Servo motor control;
H. With counting function
I. PLC touch screen;
J. Machine weight: 1950kg
K. Machine size: 1670mm*1720mm*1240mm (L*W*H)


6. Collecting system


A. Width: 1225mm
B. Length: 3m
C. Motor power: 0.75Kw

Notes for specifications:


1. Machine frame: Extruded aluminum and steel plate;
2. Power supply: 380V/3PHASE/50Hz
