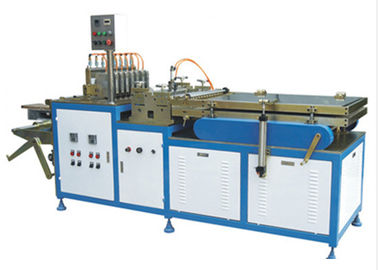

Customized 800mm Rotary Filter Making Machine with Gear Collecting

Customized 800mm Rotary Filter Making Machine with Gear Collecting

    • Customized 800mm Rotary Filter Making Machine with Gear Collecting
    • Customized 800mm Rotary Filter Making Machine with Gear Collecting
  • Customized 800mm Rotary Filter Making Machine with Gear Collecting

    Product Details:

    Place of Origin: wenzhou,China
    Brand Name: CHANGJIANG
    Certification: CE,ISO9001
    Model Number: CJGT-600N

    Payment & Shipping Terms:

    Minimum Order Quantity: 1SET
    Packaging Details: PLYWOOD CASES
    Delivery Time: 30DAYS
    Payment Terms: 30%T/T deposit, 70% T/T balance payment before shipment
    Detailed Product Description

    Customized 800mm Rotary Filter Making Machine with Gear Collecting







    Consists



    1.  Auto Paper de-coil

    2.  Paper pre-slitting

    3.  Auto counter

    4.  Pre-heat Fold Device before Pleated

    5.  Roller and gear collecting machine

    6.  Pleated paper heat forming and conveyer device

    7.  Conveyer Device



    Specifications:



    Product capability 0-30m/min
    Max width 420mm
    Min width 30mm
    Max pleat height 50mm
    Min pleat height: 12mm
    Temp. control 0-300℃
    Main power 12kw
    Working air pressure 0.6MPA
    Power supply 380V/50HZ
    M/C weight 1000kg
    M/C dimension 6000*970*1200mm





    Features



    1.  The pre-slitter uses pneumatic cutting round knife, which is adjusted simply and pressed evenly.

    2. This machine equips the pre-heating and water steam device to prevent the paper breaking when roller marking,

    3.  This machine equips the gear collecting system, so to faster the pleating speed and well pleated the paper.

    4.  The rollers can be made with bubbled type or the pleat-lock type, which is used to maintenance the certain distance between two pleats.

    5.  This high automatic machine has the process of the auto counting, pleating pre-heating and forming

    6.  This machine is computer control and simple operation.



    Applications



    This machine is used for pleating and forming ECO filter element



    Customized 800mm Rotary Filter Making Machine with Gear Collecting
