Beijing Automobile Spare Part Co.,Ltd.
High quality, Best service,Reasonable price.
Place of Origin: | Wenzhou, China |
Brand Name: | CHANGJIANG |
Certification: | CE ISO9001 |
Model Number: | CJCZ55-1050 |
Minimum Order Quantity: | 1 SET |
---|---|
Price: | Negotiable |
Packaging Details: | Standard export package |
Delivery Time: | 30 Days after deposit |
Payment Terms: | 30% T/T payment in advance, 70% T/T payment before shipment |
Supply Ability: | Engineers available to service machinery overseas |
High Light: | Filter Machines,Filter Machinery |
---|

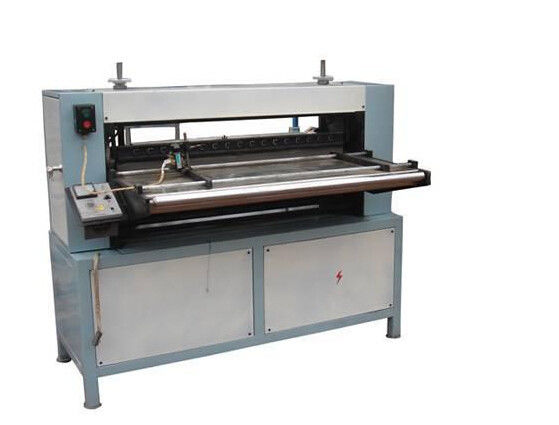

Mechanical Controlled Knife Filter Pleating Machine with Pre - Heater
Feature
1 Many kinds of media can be pleated with this machine.
2 Heat system helps to fix the shape of the pleated media.
3 Pleats counting and marking are optional.
4 Two options for pleat height: 8mm ~ 55mm or 12mm ~ 96 mm.
Specification
Model 55-1050-II Pleaing Machine
Max Width | 1050mm |
Adjustable pleating height | 8-55mm |
Pleating speed | 0-200pleats/min (adjustable) |
Power supply | 380V/50HZ |
Motor Power | 0.75KW |
Heater power | 2kw |
Heating Temp | Normal temperature-200℃ |
Working air pressure | 0.6Mpa |
M/C weight | 500kg |
M/C size | 1670×1200×1240mm |
Components
1 Media roll control system, including air bulking roller and tension brake control system.
2 Guiding tension device
3 Speed control with frequency converter.
4 Specific gear transmission
5 Wear resistant cam unit
6 Alloy steel pleating knives
7 Adjustment unit of pleat height and heat system
8 Outlet guiding table
9 Electric cabinet
10 Pleats counting
11 Slitting and marking function are optional
Applications
1. The production line is applied to auto Tri-filter industry, hydraulic pressure, purification and water treatment industries etc.
2. Furthermore, we can customize the paper-pleating production line of different specifications (machine width and pleat height, this pleating machine also can pleat “M” type).
