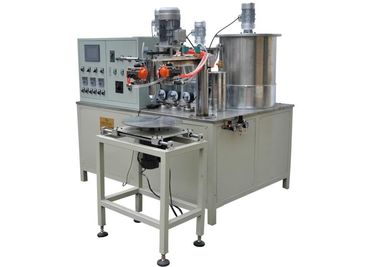

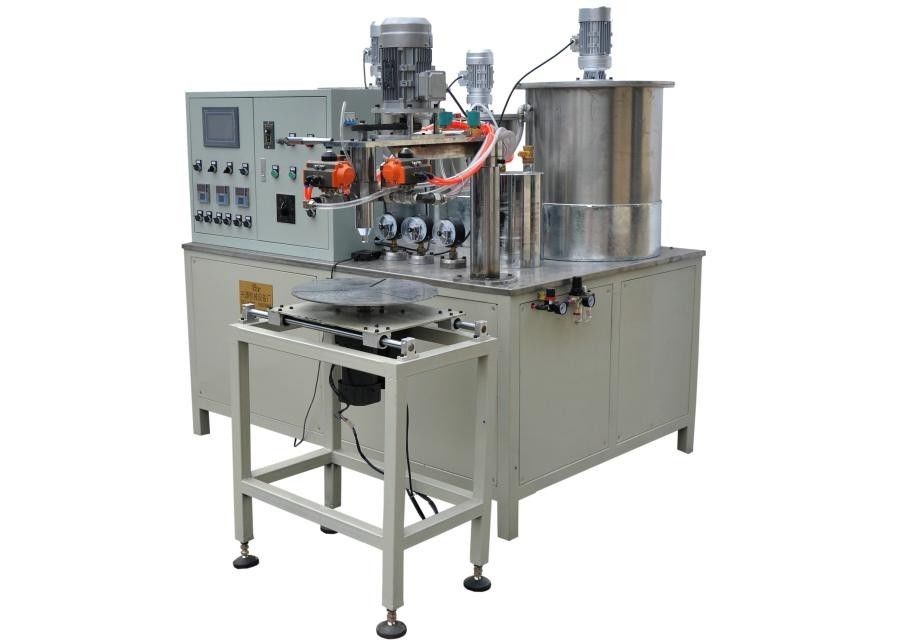

Full-Auto Casting Machine On Seal Packing In Filter Element

Full-Auto Casting Machine On Seal Packing In Filter Element

Full-Auto Casting Machine On Seal Packing In Filter Element

Product Details:

Place of Origin: Wenzhou, China
Brand Name: CHANGJIANG
Certification: CE ISO9001
Model Number: CJPU-20

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Packaging Details: Standard export package
Delivery Time: 30 Days after deposit
Payment Terms: 30% T/T payment in advance, 70% T/T payment before shipment
Contact Now
Detailed Product Description
Usage: PU Caping Injecting Function: Pour PU For Auto Air Filter And Industry Filter
Feature: High- Precision Gear Pump Overall Output: 0.3~1.2kg/min
Design Mixture Ratio: A:B=100:25 Controller: X-Y Axial Square Revolving Working Table

Full-Auto Casting Machine On Seal Packing In Filter Element





Specification



1.overall output:0.3~1.2kg/min=5~20g/s design mixture ratio: A:B=100:25

2. Automatic-shift extent on the pouring nozzle after operation: 450mm

3. Max size on quadrate gluing: 400*300mm (L*w)

4. Max size on circular auto gluing: Φ350mm

5. M/C power: 11.5Kw

6. Power supply: 380/50HZ

7. Pressure: 0.6~0.8Mpa



Materials Requirements:



Group

Max ratio

Output ml/min

Temp.℃

Viscosity CPS

A(polybasic alcohol)

100

240~1200

20~25

~2000

B(isocyanate)

25~35

96~480

20~25

<1000





 Spare Parts





Material / specifications

QTY

Orgin

A tank(polybasic alcohol)

stainless steel(304)inner tank

100L(φ500×500)

1

China

Electric heating tube

stainless steel 1.5KW

2

mechanical seal

stainless steelф25

1

Mixed Motor

CV-400-23   0.4KW

2

Canister lamp glass mirror

ф80×10

1

feeding

φ100

1

air-vent

stainless steel valve½”

1

Insulation

stainless steel valve ½”

2

Feeding

stainless steel valve 1½”

1

Feeding back

stainless steel valve 1”

1

B tank(isocyanate)

stainless steel(304)inner tank

100L(φ500×500)

1

Electric heating tube

stainless steel 1.5KW

2

mechanical seal

stainless steelф25

1

Mixed Motor

CV-400-23   0.4KW

1

Canister lamp glass mirror

ф80×10

1

feeding

φ100

1

air-vent

stainless steel valve½”

1

Insulation

stainless steel valve ½”

2

Feeding

stainless steel valve 1½”

1

Feeding back

stainless steel valve 1”

1

metering pump

Slow-speed, high-accurate flow-control pump  A pump

GJ6

1

Japan KDK

Slow-speed, high-accurate flow-control pump  B pump

GJ2.4

1

A metering pump with variable speed motor

MBW07-Y0.55-C5-4P(40-200rpm)

1

China

B metering pump with variable speed motor

MBW07-Y0.37-C5-4P(40-200rpm)

1

nozzle

Mixed Motor

Y90S-2-(1.5KW)

1

axle bearing

axle 204(ф20/ф47×14)

1

Sweden

frequency converter

2.2KW

1

China



Mixed head

ф38

3

Controller

Digital temperature control(0-200℃)

BT107/108T

2

digit - display manometer(0-10Mpa)

DT-2

2

Digital tachometer(0~9999.9rpm)

CSY-2

2

15 inch LCD screen



1

computer control card



1

Square working table

L400×W500(mm)



servo motor

400W

2

Panasonic



switch power supply

S-100-24

1

China



Switch

DZ47-60

40A

1

DZ47-60

3P 10A

2

DZ47-60

3P15A

2

DZ47-60

3P 25A

2

DZ47-60

1P10A

2

DZ108-20

2.5-4A

3

DZ108-20

1.6-2.5A

3

contactor

CJX1-9/22

9A

10

CJX1-22/22

22A

2

CJX1-63/22

40A

1



intermediate relay



1
