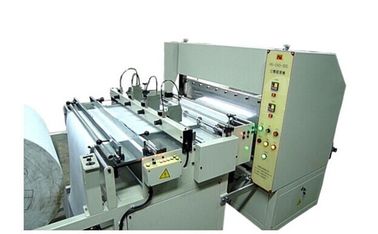

Stainless Steel Cristal Filter Making Machine , 10 - 105mm Height

Stainless Steel Cristal Filter Making Machine , 10 - 105mm Height

  • Stainless Steel Cristal Filter Making Machine , 10 - 105mm Height
Stainless Steel Cristal Filter Making Machine , 10 - 105mm Height
Product Details:
Place of Origin: wenzhou,China
Brand Name: CHANGJIANG
Certification: CE,ISO9001
Model Number: CJWG-630
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: 25,000-45,000USD
Packaging Details: plywood cases
Delivery Time: 45days
Payment Terms: 30% T/T deposit, 70% T/T before shipment
Contact Now
Detailed Product Description
High Light:

Filter Machines

,

Filter Machine Manufacturers



Stainless Steel Cristal Filter Making Machine , 10 - 105mm Height





General Description



This machine is professionally designed and used for mini pleating and hot melt dispensing on the fiber glass or polypropylene, and is able to match different specifications of the filter elements, which is characterized with high productive efficient and simple operation.





Specification



Diameter of Element ≤600mm
Pleating Height Range 10mm-105mm(any six sizes among these ranges)
Product Speed 4-10m/min
The Interval of Gluing 25.4mm
The number of the Gluing 2*26line
Power Supply 380V/50HZ
Main Power 16kw
Working Air Pressure 0.6MPa
M/C Weight 700kg
Hot Melt M/C Dimension 900*1000*1500
M/C Dimension 7500*1050*1500





Feature

  1. Both the fiber glass pleating and hot melts dispensing on the same machine. The long conveyer belt and cooling fans are adopted after the pleating system. So to fast drying the hot melt and cut any length.
  2. The main machine, conveyer belt and the hot melt applicator are all controlled by the PLC and monitor which is simple operation and fast speed.
  3. The travel distance of two pleats can be adjusted among certain scopes while hot melt dispensing, which avails the dryness and humidity of the hot melt and good for firmly folded.





Description



  1.  This machine equips the cutting and trimming device, which us used to meet different filter    specifications.

 2.  This production line is stainless steel body and aluminum frame, which is strong, nice and long life.

 3.  Six sets of rollers circling placed on one machine, which is easily to be changed and to meet different specifications.

 4.  The hot melt melting very fast and the hot melt dispensing amount can be adjusted by the frequency  converter.

 5.  High Productive efficiency and good smoothness.





Note



Furthermore, we can customize the paper pleating production line of different specifications.
