CE Approval Oil Filter Machine Manufacturers , Pleating Height 8mm - 55mm

CE Approval Oil Filter Machine Manufacturers , Pleating Height 8mm - 55mm

  • CE Approval Oil Filter Machine Manufacturers , Pleating Height 8mm - 55mm
  • CE Approval Oil Filter Machine Manufacturers , Pleating Height 8mm - 55mm
  • CE Approval Oil Filter Machine Manufacturers , Pleating Height 8mm - 55mm
  • CE Approval Oil Filter Machine Manufacturers , Pleating Height 8mm - 55mm
CE Approval Oil Filter Machine Manufacturers , Pleating Height 8mm - 55mm
Product Details:
Place of Origin: Wenzhou, China
Brand Name: CHANGJIANG
Certification: CE ISO9001
Model Number: CJCZ55-1050-II
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: Standard export package
Delivery Time: 30 Days after deposit
Payment Terms: 30% T/T payment in advance, 70% T/T payment before shipment
Contact Now
Detailed Product Description
High Light:

Pleater Machine

,

Filter Machine Manufacturers



CE Approval Oil Filter Machine Manufacturers , Pleating Height 8mm - 55mm





Quick Detail:



Type Knife Pleating Machine

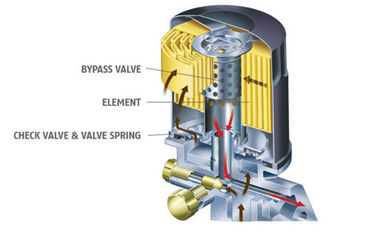

Applications Pleating for oil filter, air filter, fuel filter
Package Standard Export Plywood cases
Certificate CE ISO 9001
After-Sales service Engineers available to service machinery overseas
Delivery Time 20 days after got Your down payment
Payment Term 30% T/T payment in advance, 70% T/T payment before shipment

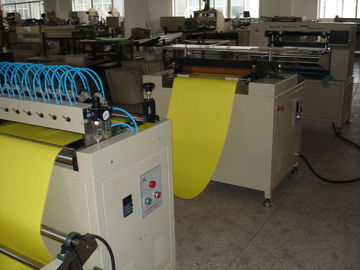

Consists



  1. Auto Paper De-coiler
  2. Pre-slitting Conveyor
  3. Marker
  4. Automatic Counter
  5. Filter Paper Pleating Machine( equip with pre-heater and monitor)





Specification



Model 55-1050-II Pre-slitter



Speed 0.5m/min-12m/min(adjustable)
Adjustable width 32-1050mm
Power supply 220V/50HZ
Motor power 0.75kw
Working air pressure 0.6Mpa
M/C weight 300KG
M/C sizes 1100×1300×1100mm



Marker



Max width for marker 1050mm
Adjustable marking distance 8-55mm
Power supply 380V/50HZ
Motor power 0.75kw
M/C weight 300KG
M/C size 1080×750×1100mm



Pleater



Max Width 1050mm
Adjustable pleating height 8-55mm
Pleating speed 0-200pleats/min (adjustable)
Power supply 380V/50HZ
Motor Power 0.75KW
Heater power 2kw
Heating Temp Normal temperature-200℃
Working air pressure 0.6Mpa
M/C weight 500kg
M/C size 1670×1200×1240mm





Feature



  1. The pre-slitting machine can accurately and freely adjust the cutting dimensions through frequency converter speed regulation and cylinder blades in different filter sizes. It is simple operated but smooth and effective. After slitting the paper, the conveyor for feeding the filter paper runs in synchronism with the marking machine by equipping the infrared monitoring system.
  2. The marking machine can mark in different pleat sizes, the marking distance can be set freely by the computer screen, and accurately marking distance will be appeared with the step motor loading.
  3. The pleater uses upper and lower blades to alternately finish the folding, and then different pleating heights are acquired evenly and accurately by automatically adjusting the blades distance.
  4. After marking, the filter paper will be pleated and pre-heated.

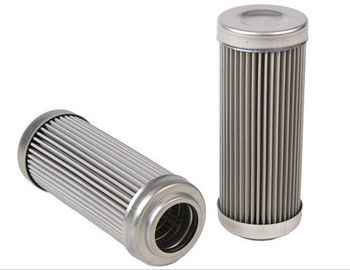

  5. The machine is also suitable for folding the iron wire fabric and non-woven fabric of by hydraulic filter, even the multilayer folding.





Applications



1. The production line is applied to auto Tri-filter industry, hydraulic pressure, purification and water treatment industries etc.

2. Furthermore, we can customize the paper-pleating production line of different specifications (machine width and pleat height, this pleating machine also can pleat “M” type).
