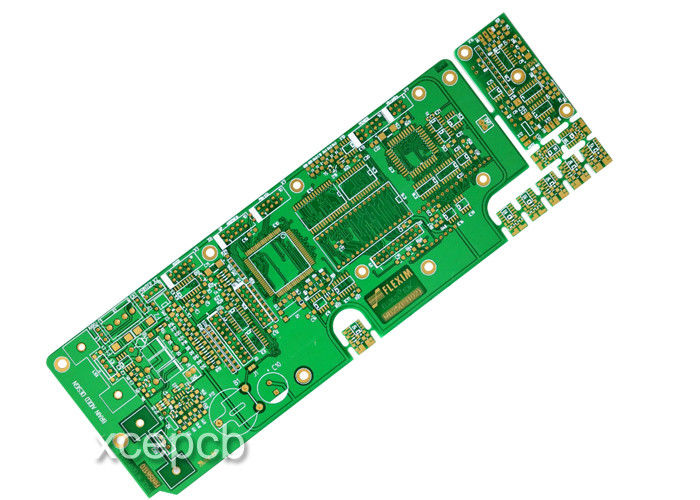

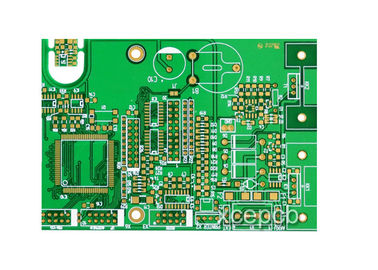

8 Layer Multilayer PCB Board High Precision Circuit Fabricator
Specification:
|
Brand
|
XCE
|
Layer
|
8
|
|
Board THK
|
1.6mm
|
Model
|
XCEM
|
|
Surface finish
|
Immersion gold
|
Size
|
20*6cm
|
|
Copper THK
|
1OZ
|
Origin
|
China
|
Quick detail:
- Base material: FR4
- Color:Green solder mask,
- Color:white silk screen
- Packaging Details:Follow customer's spec.
- Delivery Detail:within 7 days
- Certificate:ISO9001, UL,ISO14001,SGS
Description:
Xinchenger Electronics co.,Ltd established in 2009,we have commited ourselves to manufacturing various
of hi-frequency microwave pcb and multi-layer board including fastest sample production.
we have accumulated abandunt experiences in the line of high frequency microwave business for
which widely apply to power divider,combiner,power amplifier,line amplifier,base station,RF antena,
4G antena so on and so forth.our company's sufficient stocks of hi-frequency pcb materials such as
Rogers,
TACONIC,Arlon,Isola,F4B,TP2,FR-4 (dielectric rage:2.2-16) mainly used in the area of high technologies
like communication device,Electronics,Aerospace,Military industry to meet our worldwide customers
with high quality.furthermore,we also keen on helping customers shorten the period of production
development and 24 hours of sample service is available.
Parameter:
|
Layer
|
2 to 28 layers
|
|
Material type
|
FR-4, CEM-1, CEM-3, High TG, FR4 Halogen Free, Rogers
|
|
Board thickness
|
1.6mm
|
|
Copper thickness
|
0.5 OZ to 7.0 OZ
|
|
Copper thickness in hole
|
>25.0 um (>1mil)
|
|
Size
|
- Max. Board Size: 23 × 25 (580mm×900mm)
|
|
- Min. Drilled Hole Size: 3mil (0.075mm)
|
|
- Min. Line Width: 3mil (0.075mm)
|
|
- Min. Line Spacing: 3mil (0.075mm)
|
|
Surface finishing
|
HASL / HASL lead free, HAL, Chemical tin, Chemical Gold, Immersion Silver/Gold, OSP, Gold plating
|
|
Tolerance
|
- Shape tolerance: ±0.13
|
|
- Hole tolerance: PTH: ±0.076
NPTH: ±0.05
|
|
Certificate
|
UL, ISO 9001, ISO 14001
|
|
Special requirements
|
Buried and blind vias+controlled impedance +BGA
|
|
Profiling
|
Punching, Routing, V-CUT, Beveling
|
|
Provides OEM services to all sorts of printed circuit board assembly as well as electronic encased
products.
|
Advantage:
Sufficient rogers material raw,promopt response and delivery time.
Crossed blind vias is available
Application:
High technology field such as professional electronic equipment (computers, military equipment)
Aerospace communication and so on.
