tractor trailer trucks

Overall Length

9500mm-13000mm

Overall Wide

2500mm

Overall Height

3800mm-3990mm

Tare Weight

About7500KGS-15000KGS

Total Volume

30m³-68m³

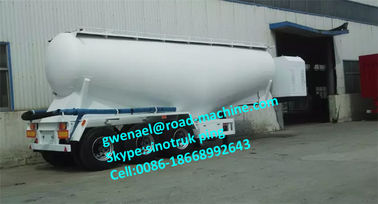

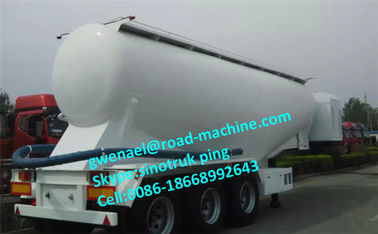

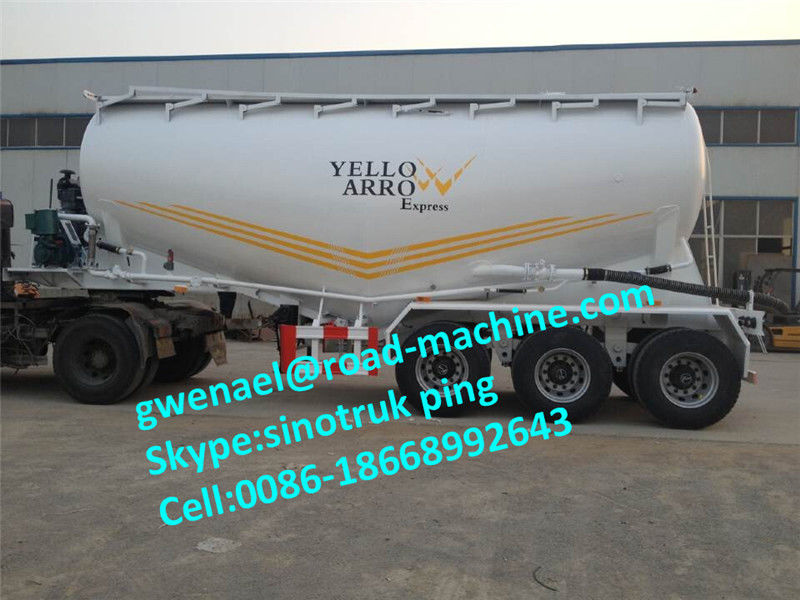

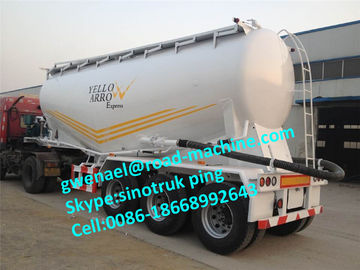

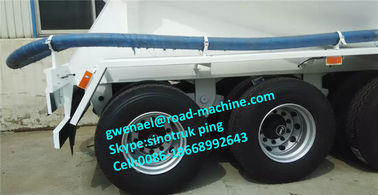

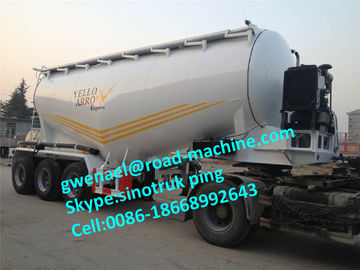

Photo for reference,We can also manufacturer the bulk cement semi trailer according to your special requirements.

Tanker Body

Shape

Optional (One Silo with V type or two,Three Silo Design)

Ratedwork Pressure

0.2MPa

Tanker Body

5mm or 6mm/Q235carbon steel

Diesel Engine

KEFA4102/4105 or other brand

End plate

5mm or 6mm/Q235carbon steel

Compressor

BOHAI 12 m³/14 m³ or other brand

Manhole Cover

Cobon steel 500mm

Discharging Valve

Diameter is 3 or 4 inch

Discharging Pipe

3 or 4 inch rubber hose,1pcs,6m/each

Cat Walk

With(Common or special design)

Chassis

Axles

2 or 3 axles, 13T/16T,BPW/FUWA/HUAJING brand

Main Beam

Q345carbon steel ,Welding Design

Support Legs

JOST(D200T) or China brand 28T

Suspension

Mechanical suspension/Germany or America type/Air Suspension

Leaf Spring

90(W)mm*13(Thickness)*10 Layer or other

Braking

System

WABCO RE6 relay valve; T30/30+T30 Spring brake chamber,45L air chamber

Tire

12.00R22.5/315 80R22.5/11.00R20/12.00R20 Brand can be optional

Rim

9.00-22.5/8.00-20/8.5-20 China Brand

King Pin

JOST 2.00 or 3.5 inch bolt-in king pin

ABS

Optional

Painting

Complete chassis sand blasting to clean rust,1 coat of anticorrosive prime,2 coats of final paint

Accessories

One tool box

Shipping Terms

By Bulk Cargo,RORO or 40HQ Containers
