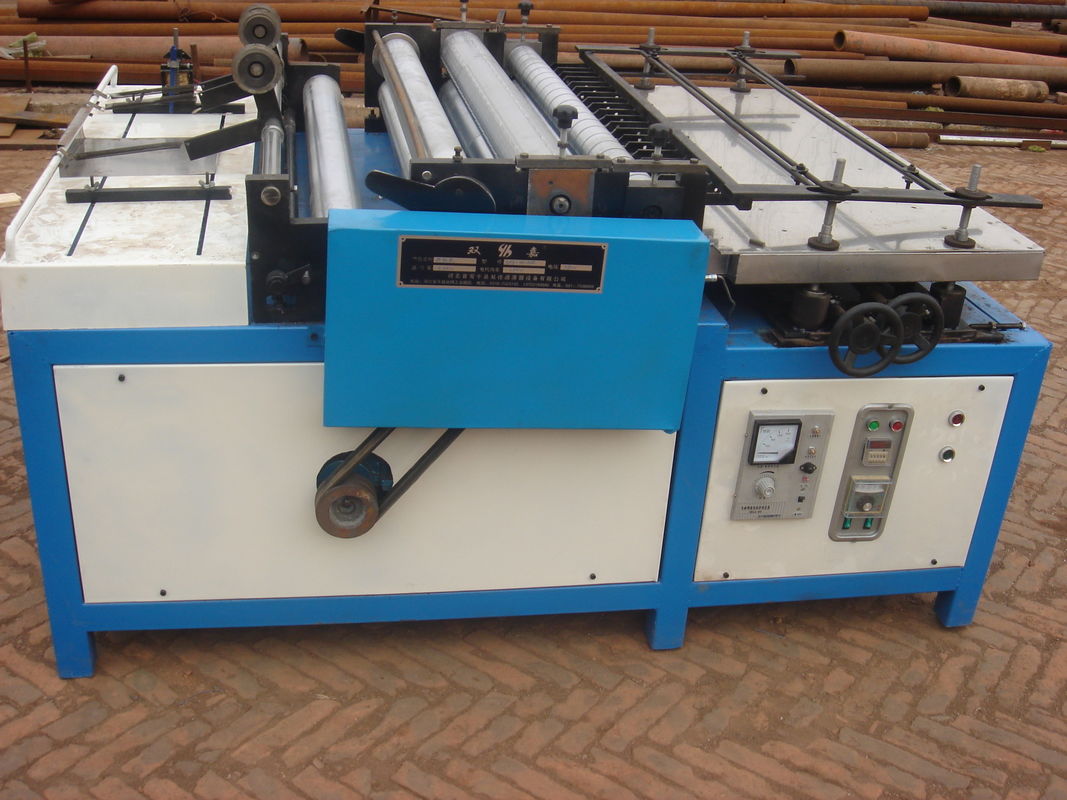

Rotary Pleating Machine-ZZHG-3A 650Type

Rotary Pleating Machine-ZZHG-3A 650Type
Rotary Pleating Machine-ZZHG-3A 650Type Rotary Pleating Machine-ZZHG-3A 650Type

Large Image :  Rotary Pleating Machine-ZZHG-3A 650Type

Product Details:

Detailed Product Description

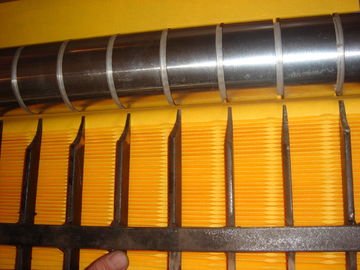

We produce and export filter paper folding machines. The folding height of filter paper is adjustable by changing folding rollers. Different folding height needs different folding rollers. One folding roller can do one folding height. It's equipped with automatic pre-slitting, folding system, electric (after) heating system, automatic counter system. According to customer's demands, main machine, supplement part (for Transferring the paper), working platform, decoiler (paper roll holder)  can separately be ordered. This machine can be made as customer's requirements.



ZzHG-3A 650Type Filter Paper Pleating machine

1. Pleating speed: 5 - 40M/min.         2. Max. pleating width: 620mm

3. Pleating height: 8 - 72mm              4. All speed adjustable motor
5. Power: 1.5KW   380V                    6. Heater temperature: 0°C - 200°C
7. Count marker   8. Pre-slitter   9. Tension rollers   10. Paper feeder rollers  11.Marking rollers  12. Traction rollers  13. Paper collecting   14. Motor controller   15.Counter   16. Heater controller
17. Machine weight: 400KG
18. Machine dimension: 1800mm x 1180mm x 900mm
