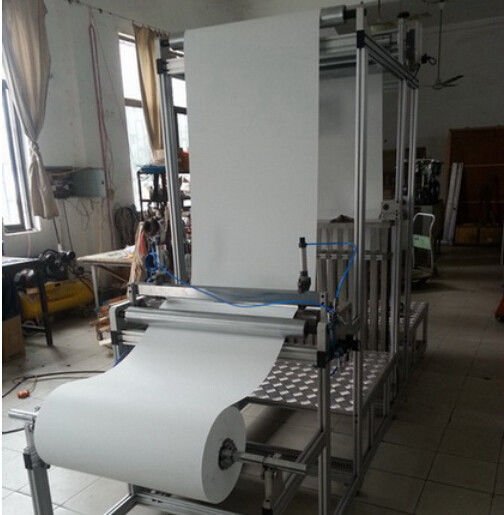

Separated Glass Fiber Pleating Machine , Pleating Height 50-292mm

General Description

This machine is used for pleating the glass fiber for HEPA filter with aluminum separator.

Specifications

Filter Sizes:

1.Max width: 762mm
   Min width: 305mm
   Max height 915mm
   Min height 305mm

2. Max pleating speed: 15m/min (adjustable)

3. Production efficiency: 8-15 packs/hour (610*610*290mm)

4. Pleating height: 50-292mm, the servo motor is used, then, the size between 50-292mm can be input on the screen;

5. U profile size (alu spacer height): 3mm, 4mm, 5mm, 6mm, 8mm and 10mm, can be changed on the same roller; Only change U profile, no need to change rollers.

6. The sinking platform can move down automatically while folding;

7. The sinking platform is a U BOX with one side is fixed and the other side is open and the two sides where the operators working position can be adjustable from 50-292mm;

8. Slitting device: Equipped with two slitting knives;

9. Scoring rollers with changeable U profiles 3, 4, 5, 6, 8 and 10mm;

10. Auto counting of the pleats and can be displayed on PLC interface; With height control device by sensor;

11. Servo motor and PLC control;

12. Max machine working width: 800mm;

13. Motor power: 2Kw

14. Power supply: 380V/50Hz

15. Machine weight: 1200Kg

16. Machine size: 3500mm*1200mm*2450mm (L*W*H)
