single bag filter housing

BOCIN oil filtration Low flow rate vertical openings single bag Filter Housing

1, BOCIN bag filter

BOCIN Bag filter is widely applied in worldwide industries and forming standard manufacture.bag filter can be customer made to meet different application requirement according to BOCIN standard single filter or multiple bags filter.
BOCIN multiple bag filter is equipped with 1-40 bags for your options, filter housing is designed ,manufactured ,checked and accepted by GB150 or ASME ,U,U2 code.
BOCIN offers you the most optimized solution with diversification and advanced filter design, precision filter bags, automatic combination.

Material >>

The bag filter materials for housing can be made of high-quality stainless steel SS304(06Cr19Ni10), SS316L (022Cr17Ni12Mo2), carbon steel (16MnR),Hastelloy(C276), the filter can refer to steel made pressure vessel  GB150 for design, manufacturing and inspection.

Advantages >>

• System

BOCIN now is becoming a strong comprehensive ability and technology service filter supplier from a single filter supplier. Whatever you are, we can meet your fluid system requirement.

• Professional manufacture

BOCIN gets theGB150 and ASME manufacture license This can ensure bag filter reliability and safety for design and manufacture.

• Rich filtration experience

BOCIN has more than ten years filtration experience ,ever serviced for 25000 enterprises and could choose the correct and suitable solution in time per your condition.

• Strict quality standard

BOCIN filters are followed by ISO9001 quality standard meanwhile gets the CE certificate also can be inspected by German Rhine TUV .

• Individual service

BOCIN can fulfill your special requirement just like line fluorine and 2507 material or pressure more than 10 Mpa; we just want to satisfy you without MOQ requirement.

• Standardization

Single bag filter including all fitting are all standardized, we can manufacture 2000 sets each month meanwhile our stock can be at least 100 sets.

• Quick open structure

Easy operation and high efficiency bag filters are widely applied to high capacity and replacing bags frequently condition and also suitable for mass production and safe filtration.

• High performance structure

Suitable for harsh filtration requirement

BOCIN takes high standard to design and manufacture including its high preformace structure and fine cast parts.

• Filter sealing structure

Three point press rings ensures well sealing for filter housing and bags. Incidental tools make operation easy and simple.

• Most reasonable flow structure

Side in and bottom out design can ensure liquid discharge completely, meanwhile Tangent position outlet for your option.

• Filter bag

Multiple function bags for your options

Without silicone oil acupuncture blanket

Firmly welded structure

The filter material will not lose hair scattered

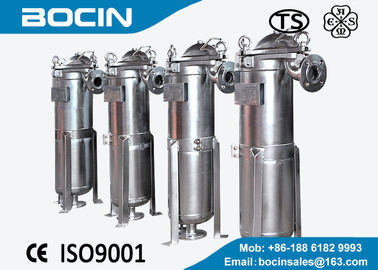

2,BOCIN single bag filter housing

Description >>

Bag filter is often characteristic of high flow rate and long service life. It consists of stainless steel housing, bag holder and filters.

The bag filter housing is made of SS304 or 316L. With different sizes, it is capable of holding 1 to 8 bags. The opening can be flange type or screw type.

Bags filter housing with capacities of up to 24 bags.

The cover flange adopt handwheel  and swing bolts ,open and close easily ,fast bag changeouts.

Positive o-ring sealing offers easy and safe operation.

Liquid bag Filter effectively removes dirt,pipe scale,and other contaminants from process liquids such as water, beverage,chemical and petroleum products. Bag filter can be used with the standard #1,#2,#3,#4 size bags or the standard perforated basket as a strainer. Mesh lined baskets are also available as an optional feature effective filtering area is rather big,achieving more efficient filtering result.Eye Bolt Closure System.The user friendly,cost effective bag filter housing for high volume,multiple applications and processes. The Max. flow of single unit are from 90 Cubic m/h to 1080 cubic m/h.

Model selection >>

single bag filter housing  Specification>>

SBF-KG series Clamp single bag filter >>

Clamp single bag filter is suitable for low pessure condition, which is an economic choice.

SBF-CJ series Side-in single bag filter >>

Side-in single bag filter is the standard type filter of BOCIN, with easy open type, which is commenly used in filtration field.

SBF-DR Top-in single bag filter >>

Top-in single bag filter has a very perfect sealing effect, the filter vessel is fully used by filtered liquid.

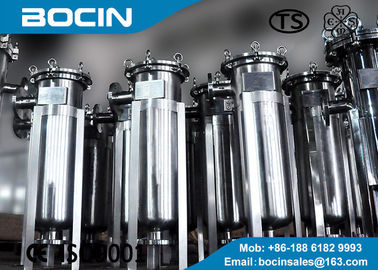

single bag filter housing  product show>>

3, BOCIN Bag filter Application

Automotive Filtration of pretreatment bath, filtration of E-Coat, topcoat and clearcoat, primer, paint ring line filters, parts cleaning fluids, drawing compounds, lubricants, metal working fluids and pump intake filters. Chemical Catalyst recovery, removal of pipe scale, polishing of aqueous process fluids, alkalis, acids and solvents, filtration of emulsions and dispersions, gel removal from resins. Activated carbon or catalyst removal in the fine chemicals industry is a typical example of a demanding application in chemical processing. BOCIN Filter Bags meet these application requirements for high filtration efficiency coupled with long service life and reliability. Electronics Wafer and chip processing, electronic etching baths, photo-chemical polishing and highpurity water filtration and prefiltration of various membrane filtration processes to improve their cost effectiveness. BOCIN Filter Bags demonstrate the required purity, efficiency and consistent performance. Food and Beverage Polishing filtration of wine, spirits and beer, removal of particles from edible oils, removal of carbon black from cellulose, slime removal in gelatins, liquid sugar, thick juice, corn syrup polishing, starch processing, milk processing and soft drinks. Many BOCIN Filter Bags conform to FDA and even EEC food processing standards and can meet the unique and varied demands of these applications. Metal Working Filtration of hydraulic oil, pretreatment system filtration, precious metal recovery, metal working fluids, and drawing compounds. Parts cleaning machines use our filter bags for minimizing residual dirt on parts. Petrochemicals Filtration of lube oils, fuel additives, enhanced oil recovery, filtration of amine solutions, filtration of glycol fluids, gas purification processes, distillation and cracking processes, amine washers, off-shore filter stations, oil drilling and injection fluids.   Paint and Lacquer Removal of agglomerates, removal of paint coagulates, solvent filtration, removal of storage contaminants, filling lines, and paint mixing lines, monomer purification.   Pharmaceutical Recovery of expensive active ingredients, catalyst re covery, active carbon purification and removal, filtration of gelatins, hormones, vitamin extracts, polishing of herbal mixtures, protein removal from plasma, filtration of saline solutions.   Resins, Plastics, Inks and Coatings Oil and polymer filtration, dispersions, polymerization batches, resins for can coatings, plastics compounding, printing ink, plastics processing, paper coatings, high purity ink-jet fluid filtration. Water Treatment Well water filtration, water treatment plants, silt removal, pipe scale removal, sand and algae removal from sea water, ion exchange resin recovery, calcium deposit removal, filtration of chemicals used for water treatment, dust removal from cooling tower installations. Surface water filtration is an area traditionally dominated by cartridge filtration. Now, the high efficiency and long life of INOCO High Performance Filter Bags are a cost-effective alternative to expensive cartridges.

4, BOCIN company capacity

BOCIN provide a wide range of filter and filter system for water filtration, oil production, processing; mining processing, liquefaction, transportation in natural gas industry around the world,used to remove pollutants in liquid or gas. With 18000 companies service experience in worldwide, leading filter laboratory, strong manufacturing capacity, we can provide you with excellent reliability and high performance products.
BOCIN all gas filtration and separation products are available with ASME "U" seal "U2", we can also accept BureauVeritas, TUV third-party certification.

5, Related products

1. MULTI BAG FILTER
2. CARTRIDGE FILTER
3. AIR FILTER
4. AUTOMATIC SELF CLEANING FILTER
5. BACK WASH FILTER
6. PIPELINE FILTER
7. BASKET FILTER
8. Y STRAINER
9. DUPLEX BAG FILTER
10. FILTER BAG

For more details pls contact BOCIN sales team.
