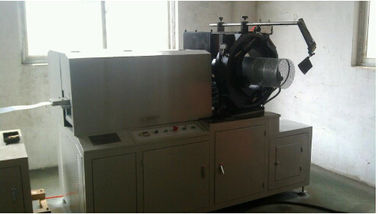

Round Air Duct Spiral Tube Making Machine Rotary Pleating Machine Customized

Product Details:

Place of Origin:	Wenzhou, China
Brand Name:	CHANGJIANG
Certification:	CE ISO9001
Model Number:	CJJY 109-500

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Packaging Details:	Standard export package
Delivery Time:	30 Days after deposit
Payment Terms:	30% T/T payment in advance, 70% T/T payment before shipment

Contact Now

Detailed Product Description

Function:	Big Mesh Spiral Making	Mesh Thickness:	0.35-0.8mm
Diameter:	90-500mm	Mesh Length:	Any Sizes
Material:	Stainless Steel	Width Of Strip:	65mm

Round Air Duct Spiral Tube Making Machine Rotary Pleating Machine Customized

Quick Detail:

Type	Oil Filter Tube Making Machine
Applications	For oil, fuel filter tube
Package	Standard Export Plywood cases
Certificate	CE ISO 9001
After-Sales service	Engineers available to service machinery overseas
Delivery Time	30 days after got Your down payment
Payment Term	30% T/T payment in advance, 70% T/T payment before shipment

Description:

This machine line is for producing round air duct for various uses, such as for HVAC round ducts, oval ducts, chimney flue, Oil filter etc.

Advantages

1.1 Special mould for various tube diameters, very easy to change and adjust, no needs crane or too much manpower.
1.2 Large diameter range
1.3 High speed synch flying slitter system.
1.4 PLC computer control, convenient operation
1.5 Light and small, suitable for site work.

Specification

2.1 Diameter of round tubes: 150mm ~ 500mm.
2.2 Max. Tube length: Unlimited.
2.3 Thickness of strip: 0.35 ~ 0.8mm
2.4 Width of strip: 65mm
2.5 Strip speed: 1~40m/min, adjustable
2.6 Suitable strip material: Aluminum, stainless steel, galvanized steel, etc.
2.7 Dimension: 2350mm x 2200mm x 1280mm
2.8 Weight: 1500kg
2.9 Power of main motor: 5.5kw, 380Volt, 50Hz/ 230V, 60Hz
