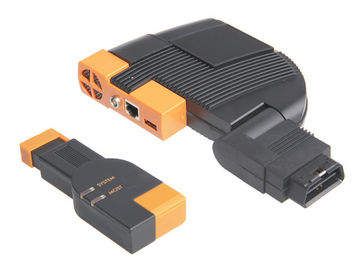

BMW ICOM V3.10 Auto Diagnostic Tools ISIS ISID BMW ICOM A+B+C BMW Diagnostic Tool
Best quality BMW ICOM A+B+C BMW ISIS ISID is the latest program, diagnose, coding and complete system, the full system replace DIS GT1/SSS/OPS and OPPS. All BMW series can be processed with the ICOM-A, B and C-modules.
Hardware: V3.10
BMW ICOM Description:
ICOM A: Vehicles with OBD capability (Connect to ISIS/SSS/ISID with LAN or WAN)
ICOM B: For programming with MOST port (Connect to MOST in vehicle / to ICOM-A with USB system
ICOM C: Older model series with diagnosis socket in engine compartment (OBD 2)
BMW ICOM ISIS Optional Information:
HS Code: 8708 Parts and Accessories of the Motor Vehicles BMW Group ISIS Next Generation Tools 3G 2008
3G Components:
Integrated Service Information Server (I S I S) two servers (one backup) + ISTA
Integrated Service Information Display (ISID) portable tablet device
Integrated Communication Optical Module (ICOM) set of vehicle interface devices-all models
Integrated Measurement Interface Box (IMIB) measurement interface device
Integrated Service Access Point (ISAP) for wireless connection to ISIS
FAQ:
Q1: What is BMW ICOM password when loading?
A1: Input "bmw" in lowercase letters when the BMW ICOM software starts, when password 1 and password 2 appear, input "BMW" in capital letters for password 1, and enter nothing in password 2.
Q2: What computer System BMW ICOM Software require? Does it need to work on VMware?
A2: BMW ICOM software moveable hard disk need to work on VMware. But the ICOM software we supply in the website is internal hard disk compatible with Lenovo and Dell and no need to work on VMware, it requires to have Intel Chip, at least 4G memory, do not have to be 64bit, the internal hard disk is used to replace the initial computer hard disk.
Q3: BMW ICOM software, which system is French?
A3: Bothe the diagnostic system (ISID) and the programming system (ISIS) are available with French. But the circuit diagram and maintenance database has to be English or German.
Q4: When I install BMW ICOM software in English, it works well, but when I choose Spanish, it display errors.
A4: it works well when choose English, German and Chinese. When choose the other language, you will get the same error.
Q5: BMW ICOM support calibration or reset air suspension?
A5: No, it doesn't do.
Q6: I have BMW ICOM hardware from you; can I use the BMW ICOM software from other sellers?
A6: Better use ICOM software from us, otherwise it may will not work.
Q7: Is your BMW ICOM software compatible with the original BMW ICOM?
A7: if you can deal with it, you can have a try, but we do not suggest you do that.
Q8: What computer system BMW ICOM ABC works on?
A8: BMW ICOM with moveable hard disk run with WIN 7, CPU i5 and 4GB memory at least. BMW ICOM with internal hard disk can be directly inserted into computer, and open computer to diagnose and program.
Q9: Can BMW ICOM (SP101) work with Rolls-Royce?
A9: yes, it can do, and no need to buy additional software.
Q10: The best quality BMW ICOM (item NO.SP101) software ISTA not working, the mouse can’t become “small hand” when I put it on ISTA.
A10: There are four reasons: 1) the computer system time is not set to the date of today, for example, today is 2013-4-5, and the computer time is not 2013-4-5; 2) The ACHI model is not set; 3) ICOM software is not compatible with your computer, better use ThinkPad X61 laptop with touch pen (Item No. SO106-C); 4) the driver installation cannot be automatically installed successfully and then it needs to be back to us to reinstall the software.
Q11: What need to be set when the BMW ICOM software install?
A11: in the moveable hard disk you can check the user manual; but the internal hard disk software need not set, just insert the hard disk and start the computer it will work.
Q12: Which device works with BMW motorcycle, type: R1200GS 2004-201, R1200GS 2004-2013 and BMW R1200R? Can BMW ICOM (item no SP110) do? If yes, does it need specific connector?
A12: Our hardware and software is compatible with your BMW motorcycle. But to make it work, it needs additional special interface-10pin cable for ICOM (item NO. SF115), we called it ICOM+D module, some customers use it and succeed, advice you have a try.
