Beijing Automobile Spare Part Co.,Ltd.
High quality, Best service,Reasonable price.
Place of Origin: | China |
Brand Name: | MW |
Certification: | ISO |
Model Number: | REB-A-04-06,REB-A-04-08,REB-A-04-10,REB-A-04-12,REB-A-04-16,REB-A-04-18 |
Minimum Order Quantity: | 100 Pieces |
---|---|
Price: | Negotiation |
Packaging Details: | As per customer's request |
Delivery Time: | Negotiation |
Payment Terms: | T/T, L/C |
Supply Ability: | 1000000Pieces /Week |
High Light: | automatic transmission components,precision transmission parts |
---|

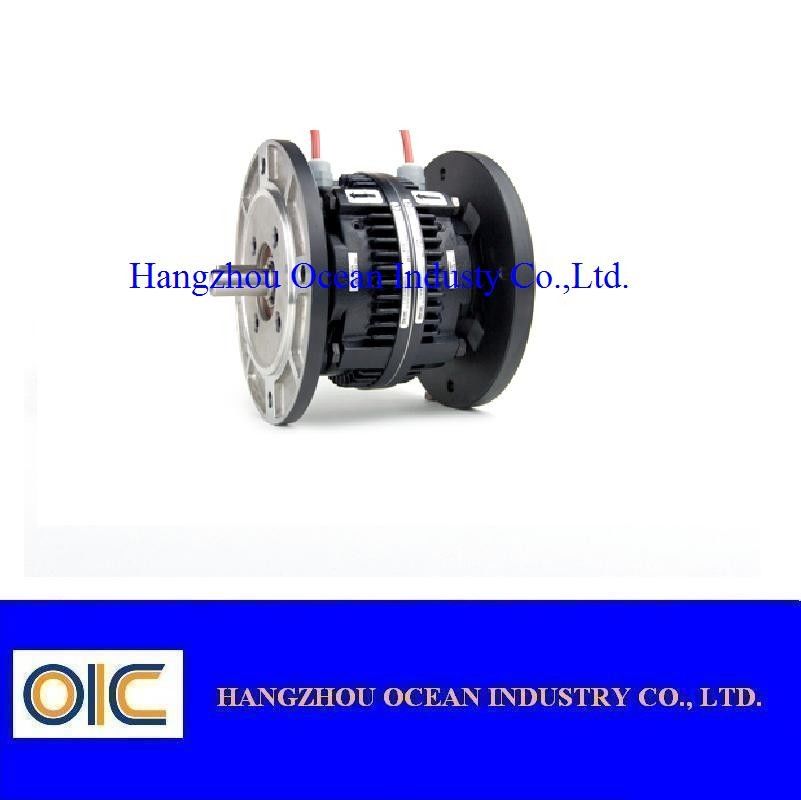

Electromagnetic Clutches And Brakes , REB-A-04-06,REB-A-04-08,REB-A-04-10,REB-A-04-12,REB-A-04-16,REB-A-04-18
Quick Detail:
Electromagnetic Clutches And Brakes, REB-A-04, Clutches And Brakes, One Way Clutch, Indexing Clutch
Standard and non-standard available
With high quality and competitive price
Prompt delivery
Packing as per customer’s demand.
Description:
Electromagnetic Clutches And Brakes, REB-A-04, Clutches And Brakes, One Way Clutch, Indexing Clutch
1, The brake force can be released by pulling the manual release lever in a braking or holding state
2, For both braking and holding
3, The braking torque adjusted in a wide range by rotating the torque adjusting ring, Minimum torque assured by a double braking construction
4, Quick response and high reliability when connecting and dis-connecting
5, Quiet operation, Dustproof cover, long life, easy to mount
We can also supply Electromagnetic Clutches And Brakes, REB-A-04, Clutches And Brakes, One Way Clutch, Indexing Clutch as below:
REB-A-04-06,REB-A-04-08,REB-A-04-10,REB-A-04-12,REB-A-04-16,REB-A-04-18
China manufacturer of Clutches and Brake;Clutch, Brakes, Pneumatic Clutches and Brakes, One way Clutch, Indexing Clutch, Friction Clutches, Friction Brakes, Tooth Clutch.
Applications:
Electromagnetic Clutches And Brakes, REB-A-04, Clutches And Brakes, One Way Clutch, Indexing Clutch is used in paper making, printing , plastic items, rubber industry, textile industry, printing and dyeing, wire and cable, metallurgy industry and tension control of winding and unwinding in roll material processing industry
Specification:
Size Code |
Friction Torque ( Kgf.m ) |
Excitation Voltage ( DC-V ) |
Braking Work |
Maximum Speed |
Weight |
||||
REB-A-04-06 |
0.5 |
24 |
48 |
96 |
20 |
3000 |
1 |
||
REB-A-04-08 |
0.9 |
24 |
48 |
96 |
25 |
3000 |
1.5 |
||
REB-A-04-10 |
1.7 |
24 |
48 |
96 |
30 |
3000 |
2.6 |
||
REB-A-04-12 |
3.5 |
24 |
48 |
96 |
40 |
3000 |
4.2 |
||
REB-A-04-14 |
7 |
24 |
48 |
96 |
50 |
3000 |
6 |
||
REB-A-04-16 |
9 |
24 |
48 |
96 |
55 |
3000 |
8.5 |
||
REB-A-04-18 |
16 |
24 |
48 |
96 |
85 |
1500 |
13 |
||
|
Dimensions for Installation (mm) |
||||||||
Size Code |
R |
S |
V |
T |
K |
OD |
C |
D |
BD |
L1 |
P |
L |
LTB |
L2 |
H |
E |
d |
B |
REB-A-04-06 |
95 |
23 |
8 |
1.5 |
4 |
83 |
30 |
20 |
11 |
6 |
18 |
18 |
48.5 |
34.5 |
13.5 |
87 |
4.5 |
72 |
REB-A-04-08 |
111 |
23 |
8 |
2 |
5 |
100 |
45 |
30 |
15 |
7 |
18 |
20 |
53.5 |
41 |
17 |
106 |
5.5 |
90 |
REB-A-04-10 |
129 |
23 |
10 |
2 |
5 |
125 |
56 |
40 |
15 |
9 |
25 |
20 |
64.5 |
48 |
18 |
132 |
6.6 |
112 |
REB-A-04-12 |
139 |
23 |
10 |
2 |
5 |
145 |
62 |
45 |
20 |
9 |
22 |
25 |
74 |
55 |
22 |
153 |
6.6 |
132 |
REB-A-04-14 |
161 |
32 |
12 |
3 |
7 |
160 |
74 |
55 |
25 |
11 |
29 |
30 |
84.5 |
64 |
30 |
167 |
9 |
145 |
REB-A-04-16 |
186 |
32 |
12 |
3 |
7 |
185 |
84 |
65 |
30 |
11 |
25 |
30 |
91.5 |
71 |
33 |
194 |
9 |
170 |
REB-A-04-18 |
242 |
32 |
14 |
3.5 |
10 |
212 |
100 |
75 |
40 |
11 |
29 |
35 |
107 |
83 |
37 |
221 |
9 |
196 |
Brakes and Clutch,Magnetic Brake And Clutch,electromagnetic clutch and brake combination,metal brake and clutch,brake and clutch lining rivets,Cheap designer brass brake and clutch lining rivets
Competitive Advantage:
More than 20 years advanced technology and experience of us will give strong support for the Electromagnetic Clutches And Brakes, REB-A-04, Clutches And Brakes, One Way Clutch, Indexing Clutch you need. We will understand your need of product quickly, and give quick respond and good service. A lot of cases of our products will show you that it worth your trust.
Under the full quality control system, our products go through the precise product line and strict testing process. We have excellent working flow and standard to ensure stability, products reliable enough for using.
Take our scale economy, raw material superiority, and sincerity for clients to account, our price have a great competitiveness. They are good value and cost effective than your imagine.
We sincerely hope establishing long and friendly business relations with clients from all over the world. Our goal is not just providing product, but also providing a complete solution including product design, tooling, fabrication and service for our customers to achieve their upmost satisfaction.
