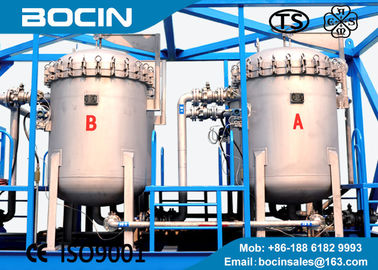

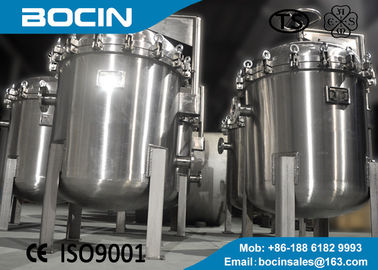

Medium precision stainless steel liquid Bag Filter Housing water filtration system

Top Entry Water Filter Housing For Chemical Filtration

Product Introduction:

UNITE standard top entry type single bag filter, simple in shape, with the most advanced precision casting top type filter structure, to optimize the best performance, to meet a variety of harsh working conditions, is currently the most popular and acclaimed single bag filter type.

Advantage:

1. The sealing effect is better, and the side leakage is avoided;
2. Large filtering area and high filtration efficiency;
3. The replacement bag is more convenient and quick, and the operation cost is lower;
4. Reasonable structure, more stable and reliable filtration;
5. The installation height can be adjusted to meet the specific requirements of the application space;
6. Personalized design, all for your sake.

Design standard:HG/T21637-1991

Shell material:CS,SS304,SS316L

Jointing:Thread or flange

Accuracy range:0.5~500μm

Work Pressure:0.1~1.0Mpa

Work Temp:-30~200℃

Surfacing: painting, sandblasting, polishing and so on

Shell material: 20#, 304, 316L, 2205,

2507.

Gasket: silicone rubber, butyl rubber,

PTFE rubber

Filter bag material: polyester,

polypropylene, nylon, PTFE, glass fiber
