High Precision Machined Pipe Welding Rollers Bed Pipe Tank Welding

High Precision Machined Pipe Welding Rollers Bed Pipe Tank Welding

    • High Precision Machined Pipe Welding Rollers Bed Pipe Tank Welding
    • High Precision Machined Pipe Welding Rollers Bed Pipe Tank Welding
  • High Precision Machined Pipe Welding Rollers Bed Pipe Tank Welding

    Product Details:

    Place of Origin: China
    Brand Name: Ronniewell
    Certification: CE,ISO,CSA
    Model Number: HGK40

    Payment & Shipping Terms:

    Minimum Order Quantity: 1set
    Price: Contact for detail
    Packaging Details: Mainframe naked, spare parts packed in case
    Delivery Time: 30working days
    Payment Terms: 30% TT in advance, 70% TT before the shipment
    Supply Ability: 45set/month
    Contact Now
    Detailed Product Description
    Function: Rotating Circular Job Usage: LS CS Seam Welding
    Application: Tank Pipe Boiler Fabrication Speed Control: Variable Frequency Drive
    Feature: Bolt Adjustable Voltagew: As Per Required

    High Precision Machined Pipe Welding Rollers Bed Pipe Tank Welding





    Brief introduction:

    Welding roller bed is mainly used for pipe tank CS(circumferential seam) LS(longitudinal seam) welding.





    Welding roller bed description:

    • Capacity of welding roller bed is various by models ranging from 5 tons to 1200 ton.  higher models are custom built upon request.

    • A motorized drive (power) unit & an idler supporting unit, 2 units consist of one set weldng roller bed.

    • The power unit is driven by a heavy duty AC motor.It is designed according to internationally proven specifications to ensure constant speed with outer balance load of 15%.

    • The heavy duty tyres are designed to 90 durable hardness with high stress rubber cushion mounts to absorb shock loads and prevent gear box damage.

    • The DC electronic function or Inverter comes with a remote control panel / operator pendant with interlocking reversing systems operating at temperatures in excess of 60%.





    Feature of welding roller bed:

    • Welding roller bed can adjust the center distance by reserved screw holes or lead screw in order to adapt to diameter of work piece.

    • Double-motor driven, the roller driver adopt cycloidal planetary gear reducer or worm reduction gear mode.

    • According to the customer’s requirements, the roller has three forms: sub-rubber tire roller, steel wheels, steel and plastic combination wheel.

    • It can joint control with other equipments.

    • The roller is mainly used for the welding and assembling of cylindrical roller shell. Also it can be used for cylindrical job polishing or painting.

    • The welding roller bed is widely used in wind power, pressure vessel, petrochemical, pipeline, steel structure, boiler, shipbuilding, welding repair industry.





    Function:

    • Forward/stop/reverse
    • Rotation speed
    • Driving vehicle forward/stop/reverse
    • Emergency-stop





    Main Technical Parameters

    Type

    Max. load (kg)

    Suitable size of job (mm)

    Wheel diameter and width (mm)

    Linear speed m/h)

    Motor power (Kw)

    Change
    Speed way

    PU wheel

    Metal wheel

    HGK 5

    5000

    Φ250-2300

    Φ250×100

    2×Φ240×20

    6-60

    2×0.37

    Veriable frequency stepless driving


    HGK10

    10000

    Φ320-2800

    Φ300×120

    2×Φ290×25

    6-60

    2×0.55

    HGK20

    20000

    Φ500-3500

    Φ350×120

    2×Φ340×30

    6-60

    2×1.1

    HGK40

    40000

    Φ600-4200

    Φ400×120

    2×Φ390×40

    6-60

    2×1.5

    HGK60

    60000

    Φ750-4800

    Φ450×120

    2×Φ440×50

    6-60

    2×2.2

    HGK80

    80000

    Φ850-5000

    Φ500×120

    2×Φ490×60

    6-60

    2×2.2

    HGK100

    100000

    Φ1000-5500

    Φ500×120

    2×Φ490×80

    6-60

    2×2.2

    HGK160

    160000

    Φ1100-6000

    /

    Φ620×220

    6-60

    2×3

    HGK250

    250000

    Φ1200-7000

    /

    Φ700×260

    6-60

    2×4

    HGK400

    400000

    Φ1300-7500

    /

    Φ800×320

    6-60

    2×5.5

    HGK600

    600000

    Φ1400-8500

    /

    Φ900×400

    6-60

    2×7.5





    Competitive Advantage:



    • Inverter and Main electric elements are Siemens/Schneider or equal brand.
    • Motor is UK brand Invertek.
    • VFD rotary speed control, improving the reliability of operation.
    • Steel or PU roller which can ensure a long time using (at least 2 years).
    • With lubrication system.
    • Accept testing before delivery.
    • Accept special design and custom.

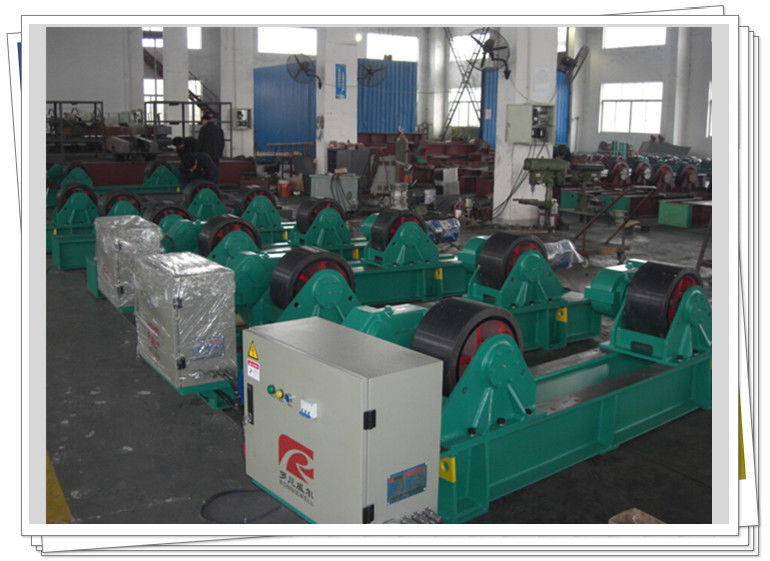

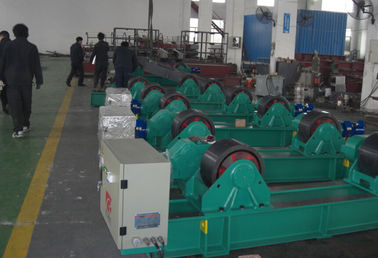

    Delivery picture:

    High Precision Machined Pipe Welding Rollers Bed Pipe Tank Welding





    Name of the machine:
    welding roller bed, pipe welding roller bed, pipe turning rolls, welding roller beds, welding roller, welding roller beds, pipe turning rolls, tube turning rolls, fit up rotator, self-aligned welding roller bed, self-aligning welding roller bed, self adjustable welding roller bed, self aligned roller stand, wheel frame, roller frame for wind tower welding, automatic adjustable welding pipe rotator, conventional welding roller bed, bolt adjustable welding roller bed, sand blasting rotator, painting rotator, 1+1 hydraulic fit up rotator, two in one fit up station
