8mm - 55mm Filter Pleating Machine For One-Layer / Multi-Layered Filter Media Pleating

8mm - 55mm Filter Pleating Machine For One-Layer / Multi-Layered Filter Media Pleating

    • 8mm - 55mm Filter Pleating  Machine For One-Layer / Multi-Layered Filter Media Pleating
    • 8mm - 55mm Filter Pleating  Machine For One-Layer / Multi-Layered Filter Media Pleating
  • 8mm - 55mm Filter Pleating  Machine For One-Layer / Multi-Layered Filter Media Pleating

    Product Details:

    Place of Origin: Wenzhou, China
    Brand Name: CHANGJIANG
    Certification: CE ISO9001
    Model Number: CJCZ55-600-II

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 SET
    Price: Negotiable
    Packaging Details: Standard export package
    Delivery Time: 30 Days after deposit
    Payment Terms: 30% T/T payment in advance, 70% T/T payment before shipment
    Contact Now
    Detailed Product Description

    8mm - 55mm Filter Pleating  Machine For One-Layer / Multi-Layered Filter Media Pleating



    Product Description

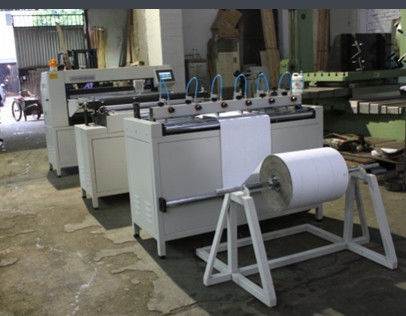

    1. Decoiler 2. Slitting machine 3. Marking machine 4. Pleating Machine

    1)This type of machine is capable for one-layer or multi-layered filter media pleating.

    2)It is well designed for filtration media, i. E, impregnated filter paper, glass fiber (HEPA Filters) synthetic media, various types of stainless steel wire mesh as well as combination of fabric and wire mesh duly stitched together.
    3)It can also pleat paper card board, copper, aluminium and other metallic foils as may be required.

    SLITTING MACHINE 1100 Type

    1. Paper feeding speed: 0.5 - 12m/min
    2. Width available: 35 - 1100mm
    3. Power: 0.75KW 380V
    4. Machine weight: 400KG
    5. Machine dimension: 1250mm x 680mm x 1120mm


    MARKING MACHINE 1100 Type

    1. Marking height: 8 - 55mm
    2. Width maximum: 1050mm
    3. Power: 1.5KW 380V
    4. Machine weight: 450KG
    5. Machine dimension: 1500mm x 850mm x 1200mm


    PLEATING MACHINE 1100 Type

    1. Pleating height: 5 - 55mm (or 15 -120mm)
    2. Layers pleated: 1 - 5 (Light type and strengthened type)
    3. Pleating speed: 20 - 150 pleats/min
    4. Max. Pleating width: 1100mm
    5. Thickness of material: 0.5 - 3mm
    6. Speed adjustable motor: 1.5KW
    7. Power: 1.5KW 380V Heater Power: 3KW Heat Temperature: 160° C
    8. Machine weight: 730KG
    9. Machine dimension: 1430mm x 1550mm x 1400mm



    8mm - 55mm Filter Pleating  Machine For One-Layer / Multi-Layered Filter Media Pleating
