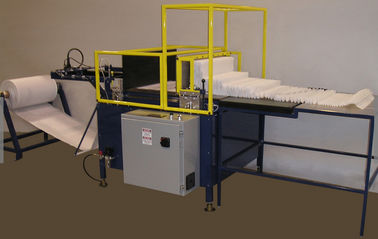

2 * 26 Line 380 Volt Mini Pleating Machine Air Filter Manufacturing Equipment

2 * 26 Line 380 Volt Mini Pleating Machine Air Filter Manufacturing Equipment

    • 2 * 26 Line 380 Volt Mini Pleating Machine Air Filter Manufacturing Equipment
  • 2 * 26 Line 380 Volt Mini Pleating Machine Air Filter Manufacturing Equipment

    Product Details:

    Place of Origin: wenzhou, China
    Brand Name: CHANGJIANG
    Certification: IE,ISO9001
    Model Number: CJWG-700

    Payment & Shipping Terms:

    Minimum Order Quantity: 1SET
    Packaging Details: PLYWOOD CASES
    Delivery Time: 50DAYS
    Payment Terms: 30% T/T deposit, 70% T/T before shipment
    Contact Now
    Detailed Product Description
    High Light:

    Filter Machinery

    ,

    Air Filter Manufacturing Equipment



    2 * 26 Line 380 Volt Mini Pleating Machine Air Filter Manufacturing Equipment





    Feature



    1. This machine equips the cutting and trimming device, which is used to meet different filter specifications.

    2. This production line is stainless steel body and aluminum frame, which is strong, nice and long life.

    3. Six sets of rollers circling placed on one machine, which is easily to be changed and to meet different specifications.

    4. The hot melt melting very fast and the hot melt dispensing amount can be adjusted by the frequency converter.

    5. High Productive efficiency and good smoothness.





    Specification



    Max. Width 700mm
    Pleating Height Range 20mm-100mm(any six sizes among these ranges)
    Product Speed 4-10m/min
    The Interval of Gluing 25.4mm
    The number of the Gluing 2*26line
    Power Supply 380V/50HZ
    Main Power 16kw
    Working Air Pressure 0.6MPa
    M/C Weight 700kg
    Hot Melt M/C Dimension 900*1000*1500
    M/C Dimension 7500*1050*1500





    Advantage



    1.Both the fiber glass pleating and hot melts dispensing on the same machine. The long conveyer belt and cooling fans are adopted after the pleating system. So to fast drying the hot melt and cut any length.

    2.The main machine, conveyer belt and the hot melt applicator are all controlled by the PLC and monitor which is simple operation and fast speed.

    3.The travel distance of two pleats can be adjusted among certain scopes while hot melt dispensing, which avails the dryness and humidity of the hot melt and good for firmly folded.





    Note



    Furthermore, we can customize the paper pleating production line of different specifications.
