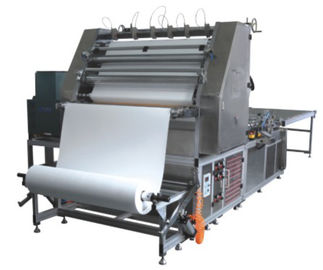

1300mm Width Rotary HEPA Air Filter Pleating Machine , Servo Motor Controlled

1300mm Width Rotary HEPA Air Filter Pleating Machine , Servo Motor Controlled

    • 1300mm Width Rotary HEPA Air Filter Pleating Machine , Servo Motor Controlled
    • 1300mm Width Rotary HEPA Air Filter Pleating Machine , Servo Motor Controlled
  • 1300mm Width Rotary HEPA Air Filter Pleating Machine , Servo Motor Controlled

    Product Details:

    Place of Origin: wenzhou,China
    Brand Name: CHANGJIANG
    Certification: CE,ISO9001
    Model Number: CJWG-1300-II

    Payment & Shipping Terms:

    Minimum Order Quantity: 1SET
    Packaging Details: PLYWOOD CASES
    Delivery Time: 60DAYS
    Payment Terms: 30% T/T deposit, 70% T/T before shipment
    Detailed Product Description



    1300mm Width Rotary HEPA Air Filter Pleating Machine , Servo Motor Controlled





    General Description

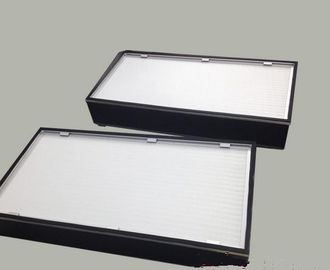

    This machine is professionally designed and used for mini pleating and hot melt dispensing on the fiber glass or polypropylene, and is able to match different specifications of the filter elements, which is characterized with high productive efficient and simple operation.





    Specification



    Max. Width 1300mm
    Pleating Height Range 20mm-100mm
    Product Speed 4-20m/min
    The Interval of Gluing 25.4mm
    The number of the Gluing 2*26line
    Power Supply 380V/50HZ
    Main Power 16kw
    Working Air Pressure 0.6MPa
    M/C Weight 1000kg
    Hot Melt M/C Dimension 900*1000*1500
    M/C Dimension 7500*1050*1500





    Feature



    1. The main machine, conveyer belt and the hot melt applicator are all controlled by the PLC and monitor which is simple operation and fast speed.

    2. Both the fiber glass pleating and hot melts dispensing on the same machine. The long conveyer belt and cooling fans are adopted after the pleating system. So to fast drying the hot melt and cut any length.

    3. The travel distance of two pleats can be adjusted among certain scopes while hot melt dispensing, which avails the dryness and humidity of the hot melt and good for firmly folded.





    Description



    1. The hot melt melting very fast and the hot melt dispensing amount can be adjusted by the frequency converter.

    2. This production line is stainless steel body and aluminum frame, which is strong, nice and long life.

    3. This machine equips the cutting and trimming device, which is used to meet different filter specifications.

    4. High Productive efficiency and good smoothness.
