Rotary Pleater Machine Filter Manufacturing Equipment for Polypropylene Air Filter

Rotary Pleater Machine Filter Manufacturing Equipment for Polypropylene Air Filter

    • Rotary Pleater Machine Filter Manufacturing Equipment for Polypropylene Air Filter
    • Rotary Pleater Machine Filter Manufacturing Equipment for Polypropylene Air Filter
    • Rotary Pleater Machine Filter Manufacturing Equipment for Polypropylene Air Filter
    • Rotary Pleater Machine Filter Manufacturing Equipment for Polypropylene Air Filter
  • Rotary Pleater Machine Filter Manufacturing Equipment for Polypropylene Air Filter

    Product Details:

    Place of Origin: Wenzhou, China
    Brand Name: CHANGJIANG
    Certification: CE ISO9001
    Model Number: CJWG-700-II

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 SET
    Price: Negotiable
    Packaging Details: Standard export package
    Delivery Time: 30 Days after deposit
    Payment Terms: 30% T/T payment in advance, 70% T/T payment before shipment
    Supply Ability: Engineers available to service machinery overseas
    Contact Now
    Detailed Product Description

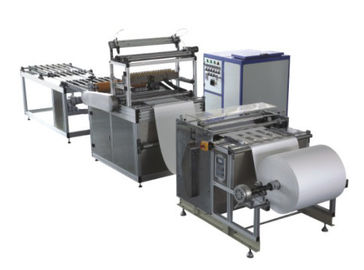

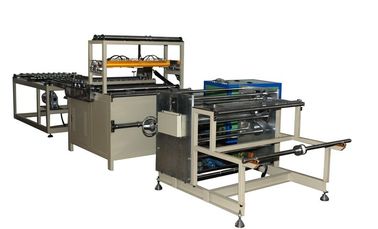

    Rotary Pleater Machine Filter Manufacturing Equipment for Polypropylene Air Filter





    General Description

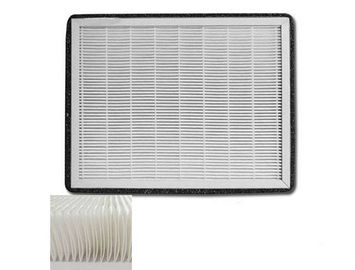

    • This pleating machine is professionally designed and used for mini pleating and hot melt dispensing on  the fiber glass or polypropylene.
    • It is able to match different specifications of the filter elements, which is characterized with high productive efficient and simple operation.



    Feature



    1. Both the fiber glass pleating and hot melts dispensing on the same machine. The long conveyer belt and cooling fans are adopted after the pleating system. So to fast drying the hot melt and cut any length.
    2. The main machine, conveyer belt and the hot melt applicator are all controlled by the PLC and monitor which is simple operation and fast speed.
    3. The travel distance of two pleats can be adjusted among certain scopes while hot melt dispensing, which avails the dryness and humidity of the hot melt and good for firmly folded.



    Specification



    Max. Width 700mm
    Pleating Height Range 20mm-100mm(any six sizes among these ranges)
    Product Speed 4-10m/min
    The Interval of Gluing 25.4mm
    The number of the Gluing 2*26line
    Power Supply 380V/50HZ
    Main Power 16kw
    Working Air Pressure 0.6MPa
    M/C Weight 700kg
    Hot Melt M/C Dimension 900*1000*1500
    M/C Dimension 7500*1050*1500





    Description



    1.  This machine equips the cutting and trimming device, which us used to meet different filter specifications.

    2.  This production line is stainless steel body and aluminum frame, which is strong, nice and long life.

    3.  Six sets of rollers circling placed on one machine, which is easily to be changed and to meet different  specifications.

    4.  The hot melt melting very fast and the hot melt dispensing amount can be adjusted by the frequency converter.

    5.  High Productive efficiency and good smoothness.





    Note



    Furthermore, we can customize the paper pleating production line of different specifications.



    Rotary Pleater Machine Filter Manufacturing Equipment for Polypropylene Air Filter

    Rotary Pleater Machine Filter Manufacturing Equipment for Polypropylene Air Filter



    Rotary Pleater Machine Filter Manufacturing Equipment for Polypropylene Air Filter
