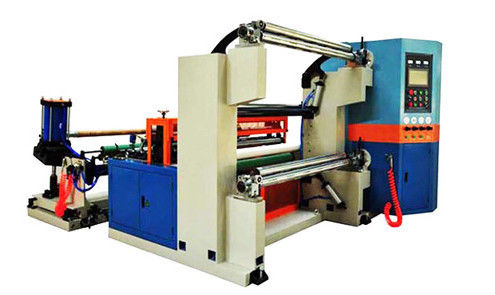

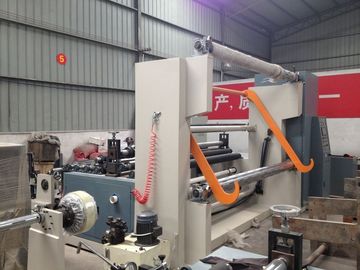

High Efficiency Automatic Paper Slitting Rewinding Machine , 2400mm Width

High Efficiency Automatic Paper Slitting Rewinding Machine , 2400mm Width

  • High Efficiency Automatic Paper Slitting Rewinding Machine , 2400mm Width
  • High Efficiency Automatic Paper Slitting Rewinding Machine , 2400mm Width
  • High Efficiency Automatic Paper Slitting Rewinding Machine , 2400mm Width
High Efficiency Automatic Paper Slitting Rewinding Machine , 2400mm Width
Product Details:
Place of Origin: Wenzhou, China
Brand Name: CHANGJIANG
Certification: CE ISO9001
Model Number: CJF-1100
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: Standard export package
Delivery Time: 30 Days after deposit
Payment Terms: 30% T/T payment in advance, 70% T/T payment before shipment
Supply Ability: Engineers available to service machinery overseas
Contact Now
Detailed Product Description
High Light:

Pleater Machine

,

Air Filter Manufacturing Equipment

High Efficiency Automatic Paper Slitting Rewinding Machine , 2400mm Width







Applications:



1. This machine is the specialized machine for slitting filter paper, nonwoven and other media.

2. It is equipped with photoelectric detection deviation correction device and manual deviation correction roller. Slitting speed is controlled by photoelectric sensor with steeples speed regulation.

3. It features high production efficiency, stable performance, regular cut and smooth winding up.



Specifications:



1.Max. Parent Web Width           2400mm

2.Max. Parent Web Diameter     1000mm

3.Max. Rewinding Diameter        1000mm

4.Min. Slitting Width    Disc Type Blade: 200mm(according to the paper thickness)

5.Thickness Range  Paper        40-500gsm

6.Max. Machine Speed              300m/min

7.Unwinding/Rewinding Shaft    6” Pneumatic Air Expanding Shaft


Feature:



1.Equipped with Siemens PLC and 7" touch screen. All the parameters are displayed on the monitor. 7" size screen gains a clear & better visual effect. Only material roll diameter and thickness needs to be setup, the PLC will give proper parameters for machine running automatically.

2.Equipped with two sets of Siemens brand Inverter Motor with bar code, one for material feeding, another for tension control.

3.Equipped with two sets of YASKAWA brand Frequency Inverters control the motors. One for material feeding, another for tension control.

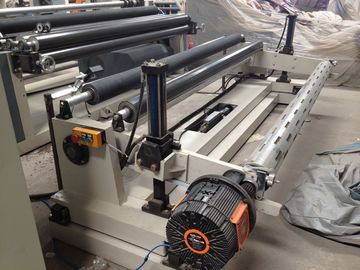

4.Equipped with automatic lift-up loading system for heavy material roll loading.The Max loading weight is around 3000kg.

5.Equipped disc type blade.

6.the disc type blade for thick material like paperboard.Min slitting width is 200mm

7.The Disc Cutter Assembly adopts the cam self-locking device without s screw. The parts are in CNC processing. The cutter edge material is 9Crsi with high endurance.



Machine Merits:



1.Equipped with automatic meter counter which will stop the machine when reach the pre-set length.It is planted in the PLC.

2.Equipped with pneumatic Brake for the unwind and two sets of magnetic clutch for rewind.

3.Equipped with you Dao ultrasonic EPC web guide for tracking the edge.

Three sets of auto tension control system are implanted the PLC, convenience operation.

4.All transmission rollers have been dynamic/static balance treated.

5.Equipped with air blower and expulsion tube.

6.Equipped with emergency switch.

7.With meter counter. Got to the setup data, the machine stops and alarms.

8.Equipped with 0.55Kw air blow for waste material edge trimmer.

9.All the electric appliances have been gained the CE certificate.
