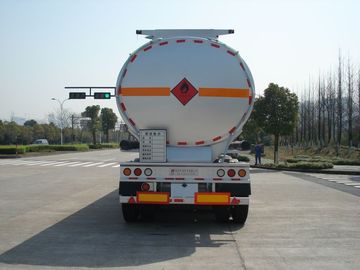

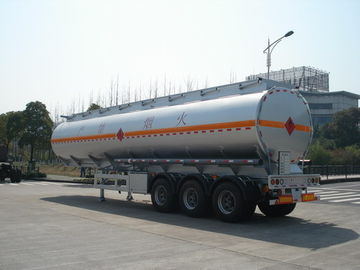

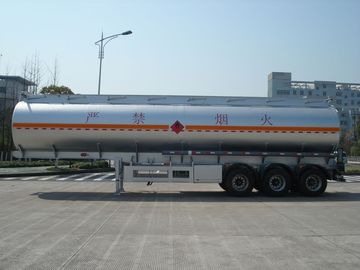

3x12T BPW axle 46000L Aluminum Alloy Petroleum / Oil Tank Semi Trailer

3x12T BPW axle 46000L Aluminum Alloy Petroleum / Oil Tank Semi Trailer

    • 3x12T BPW axle 46000L Aluminum Alloy Petroleum / Oil Tank Semi Trailer
    • 3x12T BPW axle 46000L Aluminum Alloy Petroleum / Oil Tank Semi Trailer
    • 3x12T BPW axle 46000L Aluminum Alloy Petroleum / Oil Tank Semi Trailer
    • 3x12T BPW axle 46000L Aluminum Alloy Petroleum / Oil Tank Semi Trailer
    • 3x12T BPW axle 46000L Aluminum Alloy Petroleum / Oil Tank Semi Trailer
  • 3x12T BPW axle 46000L Aluminum Alloy Petroleum / Oil Tank Semi Trailer

    Product Details:

    Place of Origin: Zhejiang.Hangzhou
    Brand Name: China Jinggong
    Certification: ISO9001, CCC
    Model Number: HZZ9401GRQ

    Payment & Shipping Terms:

    Minimum Order Quantity: No limited
    Price: negotiation
    Packaging Details: Naked
    Delivery Time: 45days
    Payment Terms: 30% T/T as advanced payment after signed contract, and 70% residual payment paid after buyer’s inspe
    Supply Ability: 10 Units/Months
    Port of Delivery:: Shanghai/Ningbo
    Contact Now
    Detailed Product Description
    Model: HZZ9401GRQ Certification: ISO9001, CCC
    Type: Semi-trailer Material: Stainless Steel
    Axle: 3x12T BPW ABS: Haldex
    Landing Leg: Jost Tyre: 11.00R22.5 Tubeless Tyre(12pieces)
    Dimension: 12500×2500×3712

    3x12T BPW axle 46000L (12,150 US Gallon) Aluminum Alloy Tank Semi Trailer for Light Petroleum/Diesel/Gasoline Delivery



    Use: Truck Trailer

    Type: Semi-Trailer

    Material: Stainless steel

    Certification: ISO & CCC

    Axles: 3x12T BPW

    ABS: Haldex

    Suspension: Air

    Landing Gear: JOST

    Kingpin: 50/90#




    Specifications:

    Name

    Standard Configuration

    Trailer Chassis

    Carbon Steel

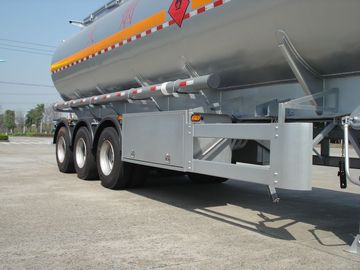

    Axles

    12T BPW axles, with ABS system

    Suspension System

    Air Suspension

    Kingpin

    90#

    Landing Leg

    KIC/JOST

    Tyre

    11.00R22.5 Tubeless tyre(12pieces)



    Overall dimension (mm)

    12500×2500×3712

    Rated Loading Mass (KG)

    40000kgs

    Rated Kerb Weight (KG)

    7500kgs

    Tank material

    Aluminum Alloy 5083

    Manhole Cover

    Aluminium alloy, 20” self-latching manhole cover, with air-van.

    Outlet port

    Pneumatic sea valve , fix all aluminum alloy connector.

    Pump System

    Optional

    Others

    Pipe box, ladder, walkway platform, toolbox,

    Fire Extinguisher, electrical system, lightening, mud guard, side fender, etc

    accordance by manufacture standard.



    The logistic vehicle series mainly included Pressured and Non-pressured Tank Transportation vehicles. Normally for transport the gasoline, light diesel oil, petroleum and other non-corresive fuel properties, rarely impact the damage for other components, widely used in various transportation units, gas stations and other logistic industries.
    Material optional for Carbon-steel, Stainless steel, Aluminum alloy


    Applications:

    1. Main frame is made of high strength low alloy steel, which can fully enhance its abilities of resistance to torsion, anti-seismic and anti-jolt, and meet the various loading requirements.
    2. The tanker is produced with the special equipments such as automatic welding machine(8m) and CNC plasma cutting and automatic submerged arc welding forming which can realize welding by one side in shape by two sides, having the merits of stable quality, less cost, and good-looking
    3. Sophisticated technique: Main parts of the trailer is processed with advanced equipment. The longitudinal beam is welded by a wholly automatic tracking submerged welding machine; Almost the steel spare parts are treated by shot blast before the assembling, which can greatly increase the adhesion of the paint.
    4. Frame: The frame is manufacture by a structure, which are made of high strength steel. This design reasonably to get a balanced consideration of the intensity, rigidity and toughness, advantages of low tare weight, heavy loading mass, not easy to be distorted.
    5. Axles: The axle can be selected in different famous brand of BPW and SAF, KIC, FUWA ect. domestic and overseas. Also, the ABS system can be optional with Haldex and WABCO etc., can be greatly increase the stability and safety.
    6. Suspension system: Mechanical suspension and air suspension series optional.
    • a. Mechanical suspension series: It used tandem and balance construction, have high strength and strong impacting resistance, evenly distribute the axle load into each axles. High strength material keep the service life much longer and efficient buffering, simple maintenance, easy replacement for the wearing parts.
    • b. Air suspension system: Optional BPW & SAF. More shocking proof which combinated with lifting and steering axles.
    1. Brake system: Much more safety and reliability on dual-loop air brake system.
    2. Air compressor: Displacement can be choosen upto 12cbm/min
