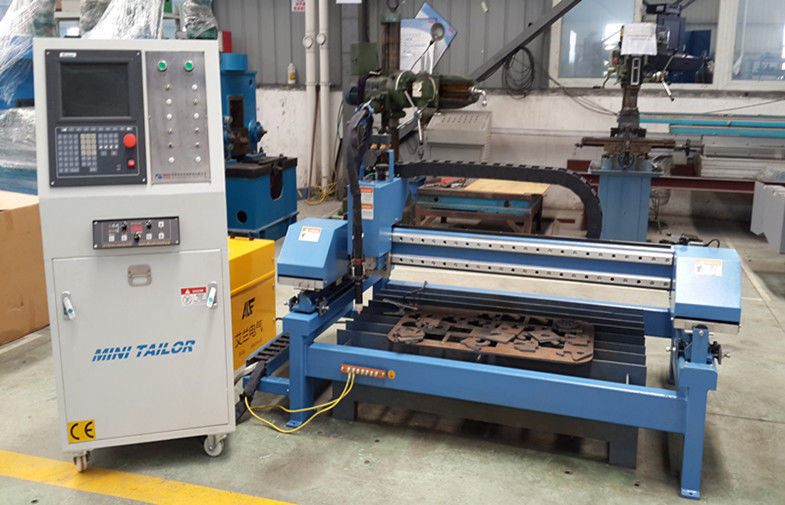

Intersecting Line Pipe CNC cutting machine / Automatic Metal Shearing Machine With Flame Torch

Intersecting Line Pipe CNC cutting machine / Automatic Metal Shearing Machine With Flame Torch

Intersecting Line Pipe CNC cutting machine / Automatic Metal Shearing Machine With Flame Torch

Product Details:

Place of Origin: JIANGSU ,CHANGZHOU
Brand Name: YATE
Certification: CE
Model Number: GSG-300 / GSG-500 / GSG-800

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Packed in plywood boxes
Delivery Time: 30-45 days after receiving the deposit
Payment Terms: 30% deposit,70% have to be paid before delivering
Contact Now
Detailed Product Description
Cutting Thickness: 6-50mm Model Number: GSG-300
Certification: CE CNC System: Hypertherm
Automation Degree: Automatic, Auto Cutting Mode: Flame, Plasma, Intersecting Line, Table
Drive Type: Servo Feature: High Speed, High Precision, Durable
Metal Processed: Metal, Pipe, Steel Product Name: Metal Shearing Machine





Intersecting Line Pipe CNC cutting machine / Automatic Metal Shearing Machine With Flame Torch





Description:



1. Adopted with Australian Fast CNC system, good performance cost.
2. CNC control system with 2-6 axis models
3. Servo driver and planet gear reducer are from international famous brands
4. Advanced chuck technology is used for pipe holder
5. Plasma or flame cutting mode, plasma power is from US and Germany
6. Multi functions for all kinds of intersection pipe cut, with constant or variable beveling angle.
7. Good outlook, easy operation and high precision in work
8. Applied in oil, construction, steel structure and shipyard industries





Applications:



Suitable for cutting the cylinder branch , two or three layer saddle cutting of the main pipe,

CNC pipe intersection cutting machine is special CNC equipment which is used for cutting metal pipe automatically.

It can reslize auto program and auto CNC nesting work for any complicated joint type of intertube and pipe and non-intertube.

And can cut any type welding bevel at one time.This product is widely used for steel structure ,shipbuilding,bridge and heavy machine industries.





Specifications:



Items

Specifications

Model

GSG-300

GSG-500

GSG-800

Pipe diameter

φ65-φ300

φ65-φ500

φ65-φ800

Pipe length

≤12000mm,optional for customer

Pipe weight

≤4000KG

≤5000KG

≤6000KG

Inner diameter of chuck panel

≤200mm

≤200mm

≤440mm

CNC system

Australian FASTCNC

Drive system

Servo driver

Servo system

Japanese Panasonic

Gear reducer

German NEUGART

CNC cutting torch

Flame torch: 1 set, plasma torch: 1 set

Flame cutting thickness

6-50mm

Flame cutting speed

50-750mm/min

Plasma power

US Hypertherm PMX serious

PMX45

PMX65

PMX85

PMX1650

MAX200

Plasma piecing thickness

≤6mm

≤10mm

≤10mm

≤12mm

≤25mm



Intersecting Line Pipe CNC cutting machine / Automatic Metal Shearing Machine With Flame Torch
