V / W type Small capacity powder tanker cement trailer with air compressor

V / W type Small capacity powder tanker cement trailer with air compressor

    • V / W type Small capacity powder tanker cement trailer with air compressor
    • V / W type Small capacity powder tanker cement trailer with air compressor
  • V / W type Small capacity powder tanker cement trailer with air compressor

    Product Details:

    Place of Origin: China
    Brand Name: TITAN
    Certification: CE/BV/CCC/SGS/ADR
    Model Number: powder tanker cement trailer

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 unit
    Price: negotiation
    Packaging Details: Naked, waxing on RORO or Bulk Ship or by 40GP, 40HQ,40FR and so on
    Delivery Time: 20 working days powder tanker cement trailer
    Payment Terms: T/T, L/C, Western Union
    Supply Ability: 5000 unit per month powder tanker cement trailer
    Contact Now
    Detailed Product Description
    Transportation: Cement Flour Powder Material Transportation Advantage: Customized Produce
    Tank Thickness: 4mm 5mm Tank Thickness Optional Type: V Type Or W Type Optional
    Export: Export To Africa, South-America, South-East Asia Market Trailer: Powder Tanker Cement Trailer
    Axle: 2 Axles, 3 Axles Optional Volume: 20 Cbm To 40 Cbm Volume

    small capacity powder tanker cement trailer

    with air compressor




    Introdution of powder tanker cement trailer

    Shandong TITAN are engaged in offering a quality range of bulk tanker cement trailer . The bulk cement carrier we offer is widely demanded for their durability and reliability. Safe to use and easy to install these products are valiable in various size and spefications.

    offer is widely demanded for their durability and reliability. Safe to use and easy to instal

    Our powder tanker cement trailer manufacturing equipment advantages
    1 Flat butt automatic welding machine(splice plate machine), to ensure the steel is flat, and seam is welded

    by one side in shape by two sides. So there is no minimal deformation, also clean and beautiful seam on

    both sides, round and smooth transfers.

    2 Automatic flat board turning-over machine, it is used in the procedure of the board turn-over after being

    welding. With a combination of the flat butt automatic welding machine, make the safety and efficiency.

    3 Tank rolling machine, the tanker body is shaped by one time, all of which features the machine good in

    appearance, efficient in production.

    4 Automatic girth welding machine for irregular shape tank. The welding seams is good in appearance,

    high in welding quality and production efficiency.

    5 Tube bending machine, the tube of tanker body adopt one time forming bending tube, improve the

    pipeline of safety and good appearance.



    6 Professional paint workshop for tanker trailer, from sand blasting, prime to top painting, guarantee the

    tanker body of brightness and the adhesion of paint.



    Referenced specification of powder tanker cement trailer

    Dimension

    Overall (L*W*H):12000*2500*4000 mm

    Tank Body

    Loading capacity: 20cbm to 40cbm

    Thickness: 5 mm

    Compartments: 1 compartment (or according to customers’ requirements)

    Diesel Engine Brand: Original WEICHAI Power  Model: 4100

    Air Compressor: Original SUYA Or HANGYA Brand

    Rubber Tubes: 6M long, one set

    Manhole: 2 sets

    Brake system

    Emergency relay valve: WABCO Brand

    Braking chamber: 6 sets of dual air brake

    ABS System: KEMI Brand

    Moving Parts

    Axle:3x13ton FUWA axles (16 ton braking performance)

    Tire/Rim:11.00R20 radial tire /8.0-20

    Suspension System

    Reinforced plate spring balanced suspension

    Leaf-spring :10pieces with width of 90mm

    Electrics

    24 volt electrical system rear lights

    King pin

    JOST 2" (50#) bolted type or 3.5" 90#

    Landing Leg Support

    JOST 28Ton

    Accessories

    2 tool boxes + 2 spare tire racks +umpers( side and rear)

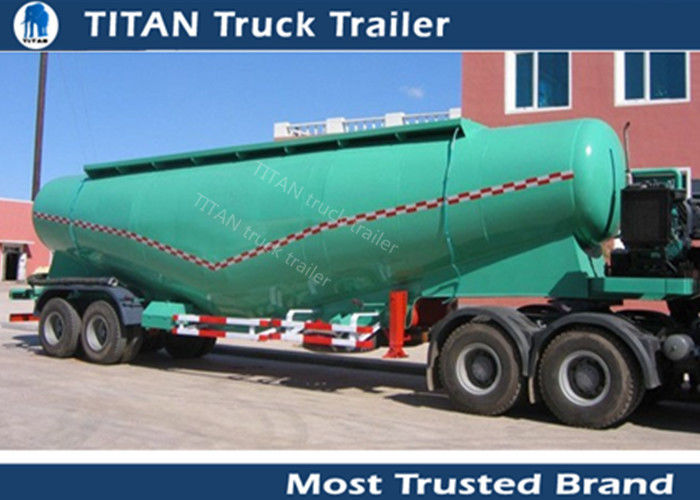

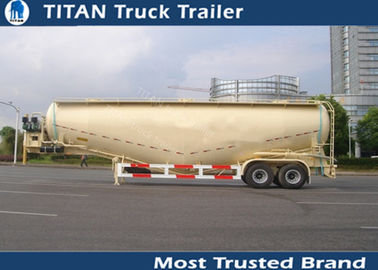

    two axles powder tanker cement trailer show:

    V / W type Small capacity powder tanker cement trailer with air compressor

    V / W type Small capacity powder tanker cement trailer with air compressor
