High Performance PP Spun Bond Non woven Fabric Production Line Double Beam

High Performance PP Spun Bond Non woven Fabric Production Line Double Beam

    • High Performance PP Spun Bond Non woven Fabric Production Line Double Beam
  • High Performance PP Spun Bond Non woven Fabric Production Line Double Beam

    Product Details:

    Place of Origin: CHINA
    Brand Name: FDFF
    Certification: ISO,
    Model Number: FD1600,FD1800,FD2400,FD3200

    Payment & Shipping Terms:

    Minimum Order Quantity: ONE CONTAINER
    Price: NEGOTIANT
    Packaging Details: WOODEN CASES
    Delivery Time: 45DAYS AFTER DEPOSIT
    Payment Terms: L/C, T/T
    Supply Ability: 100SETS /YEAR
    Contact Now
    Detailed Product Description
    High Light:

    nonwoven machine


    non woven fabric manufacturing machine

     Basic Info.

    Model NO.:1600, 2400.3200, 4000mm

    Automatic Grade:Automatic

    Certification:CE, ISO9001: 2000,



    Export Markets:Global



    Additional Info.



    Packing:Wooden Package

    Standard:1.6M, 2.4M, 3.2M, 4M etc.

    HS Code:8449009000

    Production Capacity:100set/Year



     Product Description


    Environmental Protection Material Non-Woven Machine
    Product Description

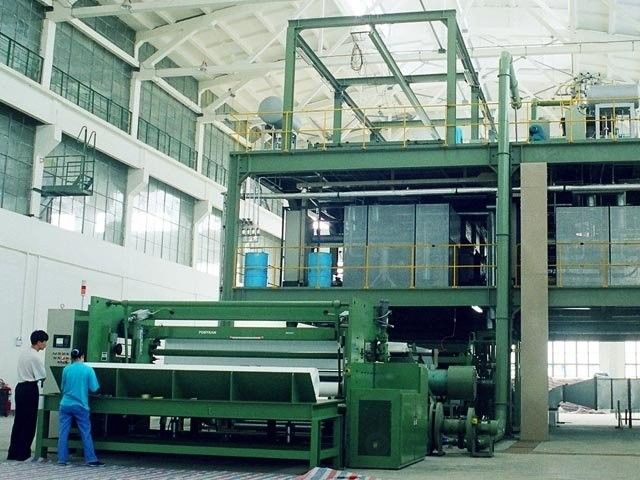

    Spunbonded Non-woven Machine

    This production line is filament polypropylene fiber spunbonded non-woven fabric equipment. Its raw material is polypropylene(PP), take the principle of spinning man-made fibres, duringpolymer filature, continuous filament is extended into fiber, during
    Which is finished by mechanical hot pressing. The machine assembly we adopt is now advanced veneer
    Integer slot air flow draw technology, the whole process from material feeding to cloth
    Output is automatic controlshort production flow, high working efficiency. The non-woven fabric we produce has high strength, good softness, innocuity, acterium-proof, corrosion
    Resistance, high-levek draw strength ans elongation rate. They are widely used for dress,
    Decoration materials, medical sanitation materials, daily life products and in the industrial, agricultural fields. In addition,
    This production line can produce non-woven fabrics of different color, differen
    Grams, different lines according to ueses'demand
    Width: 1.6m, 2.4m, 3.2m, lines on non-woven fabric: Dots, cross lines, straigh lines.

    Product Description
    Double Beam Nonwoven fabric making machine


    >> Major Features & Function:


    (1). Material: PP chip
    (2). Weight range: 10-200G/M2
    (3). Fabric usage: Medical applicant, Mask etc.
    (4). Absorb the advanced technology from abroad
    (5). Reasonable design
    (6). Superior performance, uniform web form
    (7). Filament denier: Less or equal to 2.5 denier.



    Spun laid process and technical flow chart:

    Additive(recycling waste edge)---> Raw material -->Melting--> Filtering-->Measuring-->Spinning-->Cooling-->Stretching-->Web forming-->Calendaring-->Rounding-->Final products

    Parts of spun bonded nonwoven fabric production line:
    Screw extruder ---> Metering pump--->Monomer suction device--->Quenching air chamber--->Stretching device--->Calendar--->Tension device---> Rim charge auxiliary screw and recycling device ---> spinning beam --->Filter--->Winder and suction system


    >> Major Technical Parameters

    Specification1600 SS/S2400 SS/S3200 SS/S
    Dies QuantitySS: 2 sets S: 1 set
    Effective Width (mm)160024003200
    Weight Proportion (G/M2)12-80
    Rated Line Speed (m/min)SS: 200-300
    S: 150
    Production Capacity (T/Y)SS: 3000-3900SS: 4500-5850SS: 6000-7800
    S: 1500-1950S: 2250-2925S: 3000-3900
    Fiber Denier1.6-2.5 D



    Production line:

    S,SS,SMS,M PP spunbonded nonwoven production line

    Effective Width


    Fabric Weight


    Filament Denier


    Production Capability(T/Y)


    Screw Diameter(mm)


    Length-diameter Ratio


    Machine Speed


    Fabric Color

    any color available

    Finished Fabric Feature

    Waterproof, anti-uv, anti-static, anti-pull, anti-alcohol, anti-oil, eco-friendly
