500 - 1000 L / H Pasteurized Milk Production Line For Plastic Bottle

500 - 1000 L / H Pasteurized Milk Production Line For Plastic Bottle

    • 500 - 1000 L / H  Pasteurized Milk Production Line For Plastic Bottle
    • 500 - 1000 L / H  Pasteurized Milk Production Line For Plastic Bottle
    • 500 - 1000 L / H  Pasteurized Milk Production Line For Plastic Bottle
    • 500 - 1000 L / H  Pasteurized Milk Production Line For Plastic Bottle
  • 500 - 1000 L / H  Pasteurized Milk Production Line For Plastic Bottle

    Product Details:

    Place of Origin: Shanghai,China
    Brand Name: Joylong
    Certification: ISO CE
    Model Number: 10000L / D

    Payment & Shipping Terms:

    Minimum Order Quantity: 1SET
    Price: USD100000-500000.00/SET
    Packaging Details: Export standard package
    Delivery Time: 60days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 10SET/MONTH
    Contact Now
    Detailed Product Description
    Material: Milk Powder Capacity: 500l /h
    Package: Plastic Bottle Projects: Turn Key
    Warranty: One Year Machine: SUS304

    500 - 1000 L / H  Pasteurized Milk Production Line For Plastic Bottle

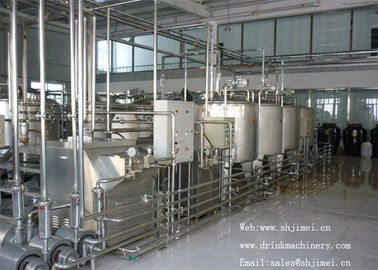

    1. Milk reception or powder & water mixing unit.
    This part is to prepare and mix the raw material. If the fresh milk is in urgent need or not enough for production, powder milk can be used to replace it.
    2. Mixing and sugar melting unit.
    Mixing machine and heat system are needed to melt the sugar and supply hot water, and then before entering the mixing tank (blending tank) for further mixing, the syrup should be cooled.
    3. Pasteurizer and homogenizer.
    This part is to kill the bacteria, thus ensuring the safety of products.
    the homogenizer is used to make the products more homogeneous which can help to improve the quality and prolong the shelf life of products. the degasser is used to remove the air that is mixed in the product. According to different products types and filling types, the pasteurizer is strictly chosen to suit the plant.

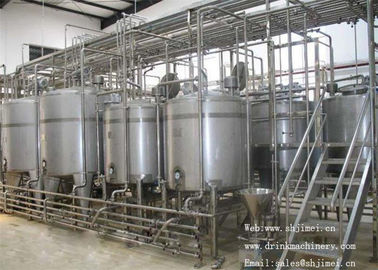

    4. Storage or yogurt producing unit.

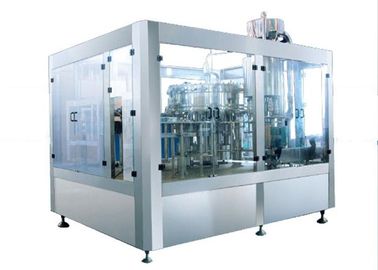

    5. Filling or packing unit.
    We can provide many kinds of filling types, such as plastic bag, PRT bottle, HDPE bottle, glass bottle, gable bottle, and plastic cups and so on. You can choose what you want.
    6. CIP cleaning system.

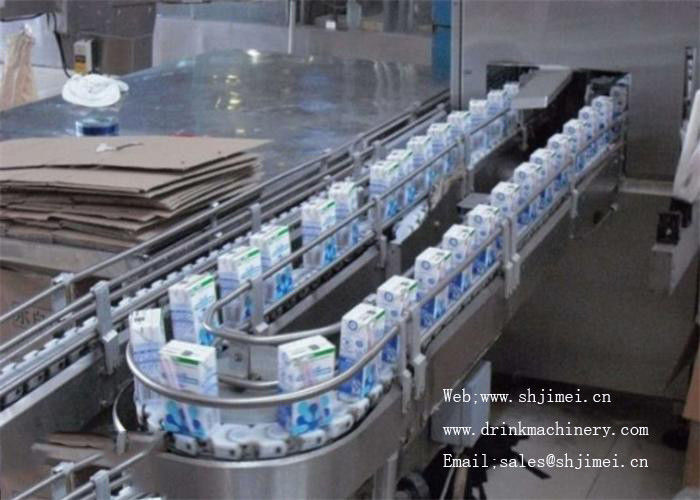

    7. After treatment equipments such as conveyer, package or pallet etc.
    8. Some assistant equipments like steam boiler, air compressor and cold water unit etc.
    9. Materials for the product pipes installation, power pipes installation and
    also electrical installation.
    Only a simple sample is mentioned above.
    We can design and manufacture whole line of milk, juice production line which is called turnkey projects, according to your requirement.
    the capacity of our plant can be 2T-300T/D.
    Products types can be of 1 or 2 or more kinds.
    Filling types can be decided by customer.
    Competitive Advantages
    Well and High Quality Control ,
    Prompt Delivery ,
    New Product ,
    Customer's Design and Logo are Welcome ,
    Competitive Prices ,
    Earth-friendly Products ,
    In a Variety of Design ,
    Small Order Acceptable ,
    ODM Accepted ,
    OEM Accepted
    Safety/Quality Approvals
    ISO CE





    Specification:


    Milk processing line

    NO.

    NAME

    MAIN TECHNOLOGY PARAMETER

    1

    MILK RECEIVESTORAGEAND CREAM SEPARETOR UNIT

    2

    electron pound scale

    maximum weighing 500KG

    3

    milk weighing tank

    made of SUS stainless steal, single layer, product feeded in through 40 mesh filter net, CIP cleaning ball

    4

    milk acceptor

    SUS304 stainless steel, single layer, CIP cleaning ball

    5

    milk pump

    SUS304 stainless steel, pump lift 24M, Hard Alloy Mechanical Seal, Inner Shell Bright-Polished

    6

    twin piping filter

    SUS304 stainless steel, two pipe, Stainless Steal Filter Element 100 Mesh

    7

    dish separator

    auto residue discharge

    8

    chiling tank

    SUS304 stainless steel, alveolate jacket, attached with compressor

    9

    milk pump

    SUS304 stainless steel, pump lift 24M, Hard Alloy Mechanical Seal, Inner Shell Bright-Polished

    10

    PREPARING UNIT

    11

    blending tank

    SUS304 stainless steel, heat insulated, top off- center votical agitator, conical head, airtight manhole, breather valve, digital readout thermometer, anti-eddy baffle, supporters with adjustable feet

    12

    milk pump

    SUS304 stainless steel, pump lift 24M, Hard Alloy Mechanical Seal, Inner Shell Bright-Polished

    13

    mini set of plate-type heat exchanger

    SUS304 stainless steel, two stages,

    14

    high speed emulsification tank

    SUS304 stainless steel, heat insulated, bottom high speed emulsifier, digital readout thermometer, supporters with adjustable feet

    15

    milk pump

    SUS304 stainless steel, pump lift 24M, Hard Alloy Mechanical Seal, Inner Shell Bright-Polished

    16

    twin piping filter

    SUS304 stainless steel, two pipe, Stainless Steal Filter Element 100 Mesh

    17

    sterilizing, homogenizing unit

    18

    UHT sterilizer

    tub-type, sterilzing temperature 137 C, holding time 4S, full automatic control

    19

    high pressure homogenizer

    40MPa, (starting box included)

    20

    temperature holding

    SUS304, holding 300S

    21

    distributing plate

    SUS304, 3 holes

    22

    cheesebutter processing unit

    23

    bufferying tank

    SUS304 stainless steel, heat insulated, top off- center votical agitator, conical head, airtight manhole, breather valve, digital readout thermometer, anti-eddy baffle, supporters with adjustable feet

    24

    milk pump

    SUS304 stainless steel, pump lift 24M, Hard Alloy Mechanical Seal, Inner Shell Bright-Polished

    25

    cream seperator



    26

    bufferying container

    SUS304, with cover

    27

    milk pump

    SUS304 stainless steel, pump lift 24M, Hard Alloy Mechanical Seal, Inner Shell Bright-Polished

    28

    butter-churner

    SUS304, stepless timing

    29

    cheese vat

    SUS304, with heating jacket and insising device

    30

    pressor

    SUS304, 6 heads

    31

    mould

    SUS304, 10L, with cover

    32

    yogurt fermentation unit

    33

    fermentation tank

    SUS304 stainless steel, heat insulated, top off- center votical agitator, conical head, airtight manhole, breather valve, digital readout thermometer, anti-eddy baffle, supporters with adjustable feet

    34

    rotary pump

    SUS304 stainless steel, Hard Alloy Mechanical Seal, manual stepless shift

    35

    plate cooler

    SUS304, single stage, milk discharge at 4C

    36

    rotary pump

    SUS304 stainless steel, Hard Alloy Mechanical Seal, manual stepless shift

    37

    filling unit

    38

    higher position tank

    SUS304 stainless steel, heat insulated, top off- center votical agitator, conical head, airtight manhole, breather valve, digital readout thermometer, anti-eddy baffle, supporters with adjustable feet

    39

    pasteurized milk filling machine



    40

    yogurt filling machine



    41

    CIP system

    42

    semi-auto CIP system

    outer coat of SUS304 stainless steel material, inner shell of SUS316, single cleaning way, Concentrated acid/alcali tank adding system based on US technology, 100L× 2 acid/alcali Concentrate tanks

    43

    CIP return pump

    SUS304 stainless steel, pump lift 24M, Hard Alloy Mechanical Seal, Inner Shell Bright-Polished

    44

      installation part

    whole milk processing line installation and commissioning





    500 - 1000 L / H  Pasteurized Milk Production Line For Plastic Bottle

    500 - 1000 L / H  Pasteurized Milk Production Line For Plastic Bottle
