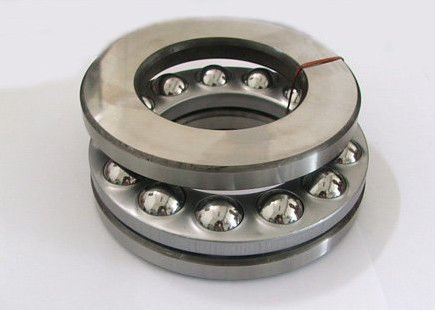

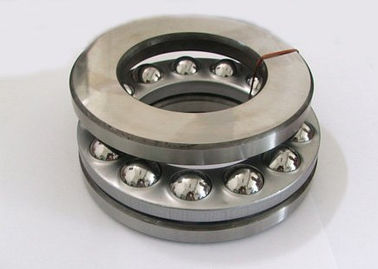

Double Direction Thrust Ball Bearings 52224 ENE Brand bearing 52224 With High Precision

Double Direction Thrust Ball Bearings 52224 ENE Brand bearing 52224 With High Precision

Double Direction Thrust Ball Bearings  52224 ENE Brand bearing 52224 With High Precision
Product Details:
Contact Now
Detailed Product Description
High Light:

large ball bearings

,

high speed ball bearings



Double Direction Thrust Ball Bearings 52224 With High Precision

52224 Thrust ball bearings double direction

Manufacturing Standard

Precision Rating

ABEC-1(p0) ABEC-3(p6) ABEC-5(p5) ABEC-7(p4)

Seals Type

Open, Z,ZZ,RS,2RS

Material

Bearing steel,carbonsteel,stainless steel,ceramic

Bearing steel standard

GCr15,SUJ2,100Cr6

Vibration Level Code

V,V1,V2.V3

Radial Play(Clearance)

C0,C2,C3,C4,C5

Noise Level

Z1,Z2,Z3,Z4

Service support

customization,OEM



Introduction

Thrust ball bearings are classfied into single direction and double direction thrust ball bearings.Thrust ball bearings can handle axial loads only. Thrust ball bearings are separable, the shaft washer, housing washer, ball and cage assembly can be mounted separately. Shaft washers have a ground bore to enable an interference fit. The bore of the housing washer is turned and always larger than the shaft washer bore.

Features

  •     Available in two designs: single direction and double direction.
  •     designs are available with spherical aligning seats or aligning seat washers.
  •     High quality steel-ultra clean steel to extend bearing life by up to 80%.
  •     High Grade Balls - Quiet and smooth operation even at high speed.
  •     Optional seating rings take initial misalignment.



Application

Thrust ball bearing applies only to bear a part of the axial load and low speed, such as crane hook, vertical pumps, vertical centrifuge, jack, low speed reducer, etc .


Principal dimensions Basic load ratings Speed ratings Designation
      dynamic static Reference speed Limiting speed

d D H C C0
mm     kN   r/min
100 170 68 140 440 1600 2200 52224


Double Direction Thrust Ball Bearings  52224 ENE Brand bearing 52224 With High Precision 0



                                 Double Direction Thrust Ball Bearings  52224 ENE Brand bearing 52224 With High Precision 1                                                                                  Double Direction Thrust Ball Bearings  52224 ENE Brand bearing 52224 With High Precision 2

                            Double Direction Thrust Ball Bearings  52224 ENE Brand bearing 52224 With High Precision 3                                              Double Direction Thrust Ball Bearings  52224 ENE Brand bearing 52224 With High Precision 4

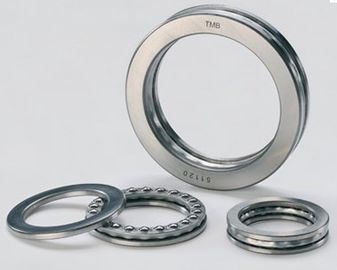

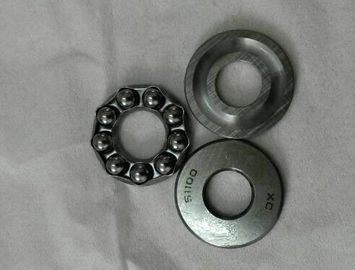

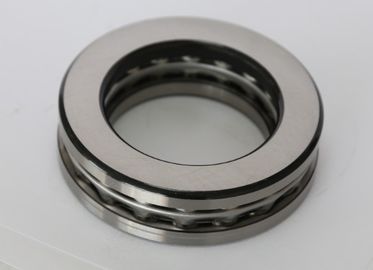

      Single direction  thrust ball bearing                   Double direction thrust ball bearing





Double Direction Thrust Ball Bearings  52224 ENE Brand bearing 52224 With High Precision 5

Double Direction Thrust Ball Bearings  52224 ENE Brand bearing 52224 With High Precision 6

Double Direction Thrust Ball Bearings  52224 ENE Brand bearing 52224 With High Precision 7
