Beijing Automobile Spare Part Co.,Ltd.
High quality, Best service,Reasonable price.
Place of Origin: | China |
Brand Name: | Puhler Grinding mill |
Certification: | CE/ISO/SGS |
Model Number: | PHE 15 |
Minimum Order Quantity: | 1pc |
---|---|
Price: | negotiation |
Packaging Details: | Packed in carton firstly, and then reinforced with wooden case for outer packing |
Delivery Time: | 40 working days after received your payment |
Payment Terms: | T/T or western Union, MoneyGram, L/C |
Supply Ability: | 30pcs per month |
Product Name: | Horizontal Easy Agitator PHE 15 | Weight(Kg): | 750 |
---|---|---|---|
Size Of Panel: | 1286mm*932mm*1638mm | Motor Power(kw): | 13.5-15 |
Effective Volume(L): | 15 | Batch Size(L): | 50-250 |
Certification:: | ISO | Additional Capabilities:: | Milling |
Product Type:: | Paint | Brand Name:: | PUHLER |
High Light: | disc mill machine,grinding equipment |
Super Fineness Disk Mill Machine With Cooling System For Nano Fineness

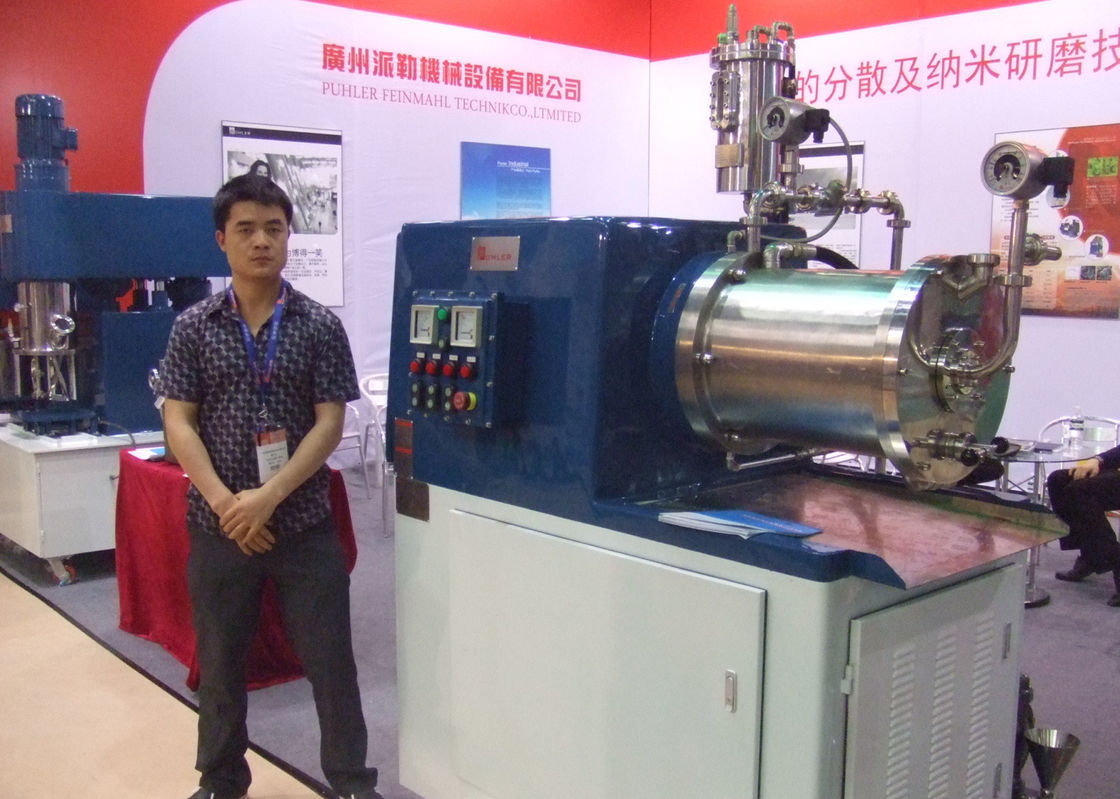

Puhler Horizontal Easy Agitator PHE Mill 15 for grinding
Characteristics
Sleeve rotor pin type Sand Mill adopts modified pin grinding system, with the design of material discharging in front while feeding at behind, avoid the problem of materials piled up at the outlet when grinding, the minimum size of the grinding medium can be 0.02mm, it can improve the production efficiency and grinding capacity enormously, suitable for materials which are difficult to scattering. Fineness of products can be 200 Nanometer.
high precision & large flow separator, inside of the sleeve rotor, nearly have no abrasion based on the principle of centrifugal force, thus it has long service life, and can meet the demand of grinding materials in large flow and repeatedly. Its production capacity is 3~5 times than traditional sand mill.
Double end surface mechanical seal with cooling system, use the cooling liquid which can be dissolved with materials, avoid the contamination to the materials.
Description:
PHE Disk mill
The machines and plants manufactured by the Nano Grinding Business Unit of the Puhler Group are used primarily in the following areas of application:
The demands placed on machines and technology in these different industries are extremely varied. They must be reliable, have a long service life and be easy to custom tailored for the particular application. That is our strength and you can rely on it. We will work with you to develop the right solution for your processing task.
Specifications:
Model specification |
Laboratory |
Production |
|||||||||
PHE1 |
PHE5 |
PHE15 |
PHE30 |
PHE50 |
PHE100 |
PHE200 |
PHE500 |
PHE1000 |
PHE3000 |
PHE6000 |
|
Chamber volume(L) |
1.5 |
4 |
17 |
33 |
68 |
113 |
248 |
666 |
1350 |
3820 |
7200 |
Effective volume(L) |
1 |
4 |
15 |
27 |
49 |
93 |
185 |
486 |
1017 |
3070 |
6800 |
Batch size(L) |
3-50 |
15-120 |
50-250 |
100-500 |
200-1000 |
500-2500 |
1000-10000 |
- |
- |
- |
- |
Rotation speed (rpm/min) |
600-3000 |
800-2300 |
700-1600 |
700-1600 |
800 |
650 |
500 |
350 |
250 |
200-350 |
200-300 |
Production capacity(Kg/h) |
3.8 |
22-260 |
52-420 |
70-700 |
140-1400 |
250-2500 |
420-4200 |
840-8400 |
1400-14000 |
2600-33000 |
- |
Motor power(kw) |
4-4.5 |
7.5 |
13.5-15 |
18.5-24 |
37 |
55-75 |
75-90 |
160-200 |
315-355 |
1200 |
2200 |
Length(mm) |
895 |
950 |
1286 |
1628 |
1944 |
2000 |
4188 |
3654 |
5855 |
18000 |
32000 |
Width(mm) |
647 |
410 |
932 |
1065 |
1150 |
760 |
1252 |
2180 |
2645 |
3000 |
6800 |
Height(mm) |
1050 |
1400 |
1638 |
1850 |
2115 |
1572 |
1850 |
1350 |
1680 |
3800 |
4500 |
Weight(kg) |
200 |
320 |
750 |
850 |
2050 |
2500 |
3700 |
8100 |
17000 |
43000 |
60000 |
Applications:
Printing Inks, Chemical Fiber Coatings, Gravure Inks,Tio2 Powder, Fillers, Agriculture Chemicals, Offset Inks, Pigments ,Packing Inks, Minerals, Paints, Ceramics And Glazes, Coil Coatings, Non Ferrous Metals, Paper Coatings, Heat Sensitive Coatings, Special Chemicals, Cosmetics, Hard Metals (Tungsten Carbide, SiC)
High quality service- from consultation to final production
Puhler Group supplies turn key project which includes:
Designing for whole production process
Laboratory test of new products
Designing and making of machinery and electric circuit
Installation and commissioning of the equipment
Training of the operator
Service for authentication
Our Services:
1. How about your advantages?
a. On time delivery.
b. More than 20 years’ experience.
c. Quality guaranteed and professional service.
d. Various design based on client’s requirements.
2. How to place order?
Send inquiry→Basic quotation→Confirm details→ PI & Contact→Pay deposit→Production ( 20-30 days)→Pay balance→Delivery (5-8 days by air, 28-35 days by sea.) →After-sale
service.
3. Will you send us drawing of required machine for checking?
Yes, we’d like to send you our draft drawing of the required machine . After you place
order, we shall send you details drawing and technical parameters. Then shall put into
production once you confirm the production.
4. Is there any quality warranty and after service?
The warranty period of mechanical portion of the equipment shall be a year after you
received the equipment, and help buyer installation and commissioning the equipment
