Fanuc Controlled CNC Precision Machines for Grinding Valves

Product Details:

Place of Origin:	China
Brand Name:	sm
Certification:	ISO9001
Model Number:	fqm100

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Packaging Details:	suitable for exportation for sea freight
Delivery Time:	45~90 days
Payment Terms:	TT/ LC
Supply Ability:	10 SET /month

Contact Now

Detailed Product Description

High Light:

grinding valves

machines for grinding valves

cnc machines for grinding valves

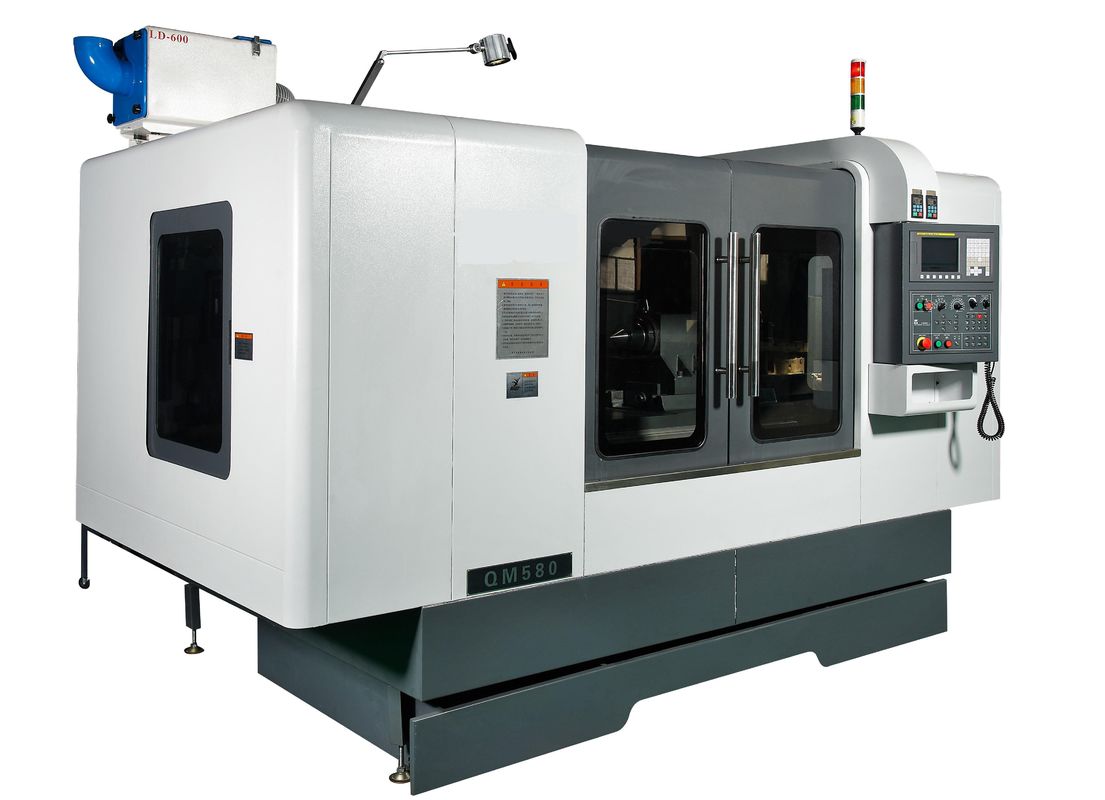

Fanuc Controlled CNC Precision Machines for Grinding Valves

Description:

1. The CNC spherical grinding machine developed by our company has remarkable quality.The configuration of this machine is artistic and elegant.We update and improve our products according to the proposals from our customers on and on.Within a long history of our customers’ feedback,this machine has grown into a high-efficiency,stable and precision spherical grinding machine.

2. The guide way adopts box way type to be designed.It is handled by supersound quenching process,which prolongs the working life and enhances the mechanical property.In order to decrease the friction coefficient of machinery to minimum and ensure the stabilization of the machining accuracy,the plate sliding contact surfaces are plastic coated（teflon）.

3. The castings not easily distort,stand wear and tear and have stable property by artificial aging treatment.

4. The CNC control system is adopted so it has a high level of automation and one worker could control more machines.Products quality and working efficiency could be improved.

5. The main spherical material could be processed：A105、2Cr13、304、304L、316、316L、ENP（chemical nickel-plating）、Chrome Plating（hard chrome）、Tungsten Carbide（wolfram carbide）、ceramic sphere.

6. The machine could apply to grinding sphere on a large scale in valve industry.

Specification:

Item	Unit	The main technical parameter QM380/8″
Maximum diameter of the ball to be ground	mm	Φ80-φ320
Maximum bore diameter of the valve ball	Inch	3” - 8″
The distance between the top center line and the table	mm	250
Max weight of the valve ball	Kg	1000
Main shaft Power	kw	11
Main shaft rotary speed range	Rpm	0～8000
Lathe head motor power	kw	3
Lathe head rotary speed range	Rpm	6-125
X/Z axis travel	mm	300/250
Adjustment of the tailstock	mm	200
Tip point of lathe head and tailstock		Mohs 5"
Positioning accuracy on X/Z axis	mm	±0.005
Repeat positioning accuracy on X/Z axis	mm	±0.003
Coarse of valve ball	Ra	0.4-0.2
Roundness of valve ball	mm	<0.015
Overall dimensions (LWH)	mm	2810×2400×2400
Machine weight	Kg	5000

Item	Unit	The main technical parameter QM580/16″
Maximum diameter of the ball to be ground	mm	Φ300-φ560
Maximum bore diameter of the valve ball	Inch	8” - 16″
The distance between the top center line and the table	mm	315
Max weight of the valve ball	Kg	2800
Main shaft Power	kw	37
Main shaft rotary speed range	Rpm	100～3000
Lathe head motor power	kw	3
Lathe head rotary speed range	Rpm	6-125
X/Z axis travel	mm	500/400
Adjustment of the tailstock	mm	200
Tip point of lathe head and tailstock		Mohs 6"
Positioning accuracy on X/Z axis	mm	±0.005
Repeat positioning accuracy on X/Z axis	mm	±0.003
Coarse of valve ball	Ra	0.4-0.2
Roundness of valve ball	mm	<0.02
Overall dimensions (LWH)	mm	3000×2960×2600
Machine weight	Kg	8000

Item	Unit	The main technical parameter QM880/24″
Maximum diameter of the ball to be ground		Φ560-φ880
Maximum bore diameter of the valve ball	Inch	16” - 24″
The distance between the top center line and the table	mm	450
Max weight of the valve ball	Kg	3500
Main shaft Power	kw	45
Main shaft rotary speed range	Rpm	100~2500
Lathe head motor power	kw	5.5
Lathe head rotary speed range	Rpm	6-125
X/Z axis travel	mm	800/600
Adjustment of the tailstock	mm	320
Tip point of lathe head and tailstock		Mohs6"
Positioning accuracy on X/Z axis	mm	±0.01
Repeat positioning accuracy on X/Z axis	mm	±0.005
Coarse of valve ball	Ra	0.4-0.2
Roundness of valve ball	mm	<0.03
Overall dimensions (LWH)	mm	400027002400
Machine weight	Kg	16000
