3.7kw Five Axis CNC Sharpening Machines With Siemens Servo Motor

Product Details:

Place of Origin:	China
Brand Name:	JJR
Certification:	ISO9000
Model Number:	YH9460

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Packaging Details:	in wooden cases
Delivery Time:	1month
Payment Terms:	T-T , L/C
Supply Ability:	50sets/month

Contact Now

Detailed Product Description

Diameter Of Cutter:	6’~24’	Material Of Grinding Wheel:	CBN
Diameter Of Grinding Wheel:	300	Speed Of Grinding Wheel:	1800-5200
Diameter Of Indexing Rotary Table(mm):	Ф450	A Obliquity Of Worktable:	-90°~40°
Speed Of B-axis(r/min):	16	Speed Of A-axis(r/min):	11
Vertical Travel Of Grinding Wheel(mm):	400	Distance From Worktable Surface To Grinding Wheel Axes(mm):	130~530
Travel Of Grinding Wheel Axial Direction(mm):	400	Distance From Grinding Wheel Surface To Worktable Center(mm):	-100~300
Horizontal Travel Of Grinding Wheel(mm):	±500	Power Of Motor (kw):	3.7
High Light:	hob sharpening machine , gear grinding machines

3.7kw Five Axis CNC Sharpening Machines With Siemens Servo Motor:

Applications of Machine:

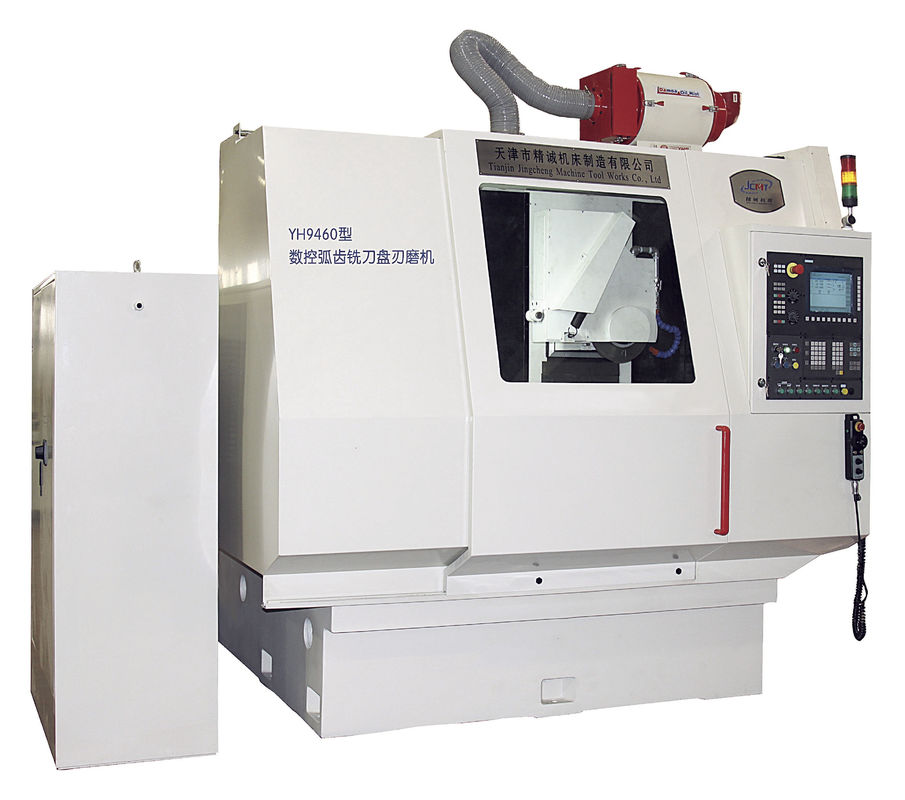

The model YH9460 CNC Spiral Bevel Gear cutter Sharpener is designed for sharpening the milling cutter and broach cutter which used for cutting the spiral bevel gear. The machine adopts the CBN grinding wheels and suitable for spiral bevel gear and sharpening the cutting faces of the tools in the tool factories.

Characteristics:

● The machine adopts double measuring head to testing cutter tooth and grinding wheel position, the operation is accurate and simple.

● The machine uses CBN grinding wheel with high-precision and smooth finish.

● The machine can grind GLEASON cutter and OERLIKON system EN cutter.

● The machine is controlled by five-axis which adopts SIEMENS servo motor, the grind with high-efficient and stability.

● The machine adopts German Renishaw high-precision measuring device. Don't try to grinding, just put the cutter to install on the machine can automatically grinding, grinding quantities can control, save the adjustment time, improve the grinding accuracy.

● The diameter of grinding cutter is 6”~24”; it can meet many factories requirements.

● The machine adopts CNC rotary table in Taiwan bran. It only change the fixture of cutter so that can achieved exchange of GLEASON and OERLIKON EN cutter, the operation is easy.

Parameters Table:

Model Parameter	YH9460
Diameter of cutter	6’~24’
Material of grinding wheel	CBN
Diameter of grinding wheel	300
Speed of grinding wheel	1800~5200
Diameter of indexing rotary table(mm)	Ф450
Mounting diameter of cutter spindle(mm)	Ф58.221×1/24
	Ф126.966×1/24
	Ф215.8
A Obliquity of worktable	-90°~40°
Speed of B-axis(r/min)	16
Speed of A-axis(r/min)	11
Vertical travel of grinding wheel(mm)	400
Distance from worktable surface to grinding wheel axes(mm)	130~530
Travel of grinding wheel axial direction(mm)	400
Distance from grinding wheel surface to worktable center(mm)	-100~300
Horizontal travel of grinding wheel(mm)	±500
Power of motor (kw)	3.7
Dimension (L×W×H)(mm)	2000×2650×3000
Weight (Kg)	10000

Company Profile:

Heng Yong company gathered many experienced experts. This team is lead by people have over decades of experience, and filled with young, energetic engineers. With strong research and developing ability, our company put extraordinary effort on developing complete sets of gear machinery. Now we are able to provide our customer the main products as follows: Gear Shapers, Straight Bevel Gear Generators, Spiral Bevel Gear Generators, Spiral Bevel Gear Grinders, Hypoid Gear Testers, Gear Lappers, Gear Quenching Press, Gear Chamfering Machines, Gear Hobbers, Honing Machines, Vertical & Horizontal Machining Centers, Special Precision Speed Reducers, Roll Stander for Seamless Tube Stretch Reducing Mill, Gear Coupling Family, Low Drive Devices and Environmental Protective Equipment of 16 kinds, more than 30 families, and more than 150 types and specifications. The company focus on developing heavy-duty, large CNC gear machinery, which are urgently needed by the government and makes industrialize as soon as possible, provide a great variety of advanced gear machinery to the market. The company is using the leading 3D designing software for developing and designing. The company combines producing with research and development by Cooperating with TIANJIN University and other colleges for many years.
