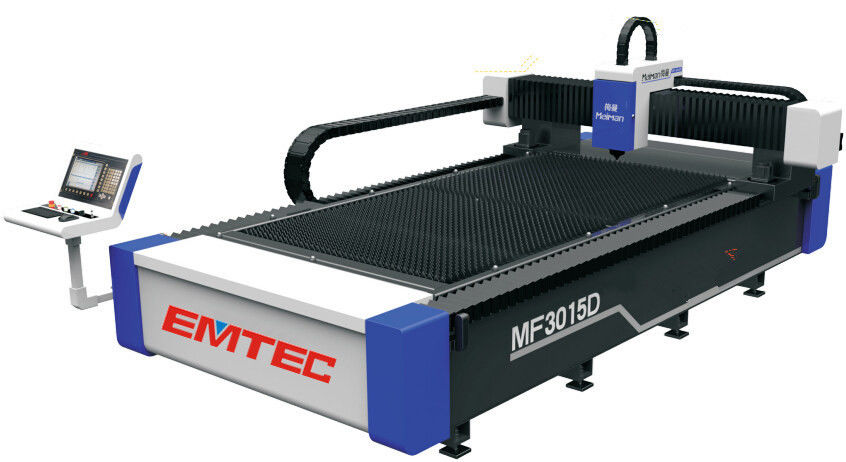

elevator Car spare parts laser Cutting Machine

Product Details:

Place of Origin:	CHINA
Brand Name:	EMTEC
Certification:	CE/CSA/CCC
Model Number:	MF3015-D

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	125000
Packaging Details:	Wooden case
Delivery Time:	35 days
Payment Terms:	LC

Contact Now

Detailed Product Description

Machine Application:
Carbon Steel Plate Cutting
Stainless Steel Plate Cutting
Aluminum Plate Cutting
HVAC duck process
Decorative Lamps process
Metal Craft products production
Lift car process
Cabinet Process
Kitchen ware process
Stainless Steel products process
Flexible Machining
Features:
Advantage of fiber laser cutting machine
-High quality laser beam
-Smaller focus spot, good processing quality, efficient working process
-Faster Cutting Speed: Two times faster than same power CO2 laser cutting
-High Stability: Max100000 hours key parts lifetime
-Energy saving and environment protection much more electro-optical conversion efficiency up to 30%, 3 times higher than CO2 laser power.
-Much more Lower Power Consumption: 20-30% power consumption lower than CO2 laser power
-Lower maintenance cost: No need laser power working gas, No need reflector.
-Easy to use optical fiber laser transmission, easy to adjust optical path,
-Small volume of laser power, compact structure of machine tool easy to flexible machining
Technical

MF3015D-500W CNC Fiber Laser Cutting Machine
Cutting Area	3000×1500 mm
X-axis	3000 mm
Y-axis	1500 mm
Z-axis	120 mm
Max Speed	50 m/min
Laser Power	500W
Max Cutting Thickness	0.5-6mmMS 0.5-3mmSS
X-axis, Y-axis cutting accuracy	0.05 mm
X-axis, Y-axis re-positioning Accuracy	0.025 mm
Noise	<85db
Operating Voltage	Three phase 380v±5%/50Hz
Dimension(LxWxH)	5600x2800x1800
Total Power	20KVA

Configuration

Name	Producer or Brand
Fiber Laser Power	SPI from Germany
Cutting Head	Precitec from USA
Rolling Ball Screw	HIWIN
Rail	HIWIN
Pneumatic System	SMC JAPAN
Electrical Components	Schneider
Gear Box	LIMING
CNC System(including software)	PA8000
AC Servo Motors and Drivers	Yasukawa Japan
CAD/CAM Automatic Programming Software	CNC-KAD Israel
Water Chilling Units	Chinese Brand
Smoke Exhaustion System	Domestic Brand

Working Condition

No.	Item	Contents	Requirements
1	Power Supply	Three-phase five-wire	380V±5%/50Hz/60A
2	Water Supply	Cooling water	Distilled water
3	Gas	O2(1MPa),N2(2.5MPa)
		Air	Working Pressure 1.25MPa
		Air	Flow rate 1.3m³/min
4	Working Condition	Temperature	5~40°
		Humidity	Less than 70%
		Foundation	Filed level and not strong Vibrations

Cutting Speed Chart (For the reference only)

Laser Power(W)	Material	Cutting Thickness (mm)	Cutting Speed (mm /min)	Cutting Gas
500	Stainless Steel	1	13000	N2
		2	5000	N2
		3	2000	N2
500	Carbon Steel	1	11000	O2
		2	6000	O2
		3	4000	O2
		4	1800	O2
		5	1000	O2
