Product Introduction:
Raw Material: Waste Paper
(Could be recycled , no pollution, protect environment)

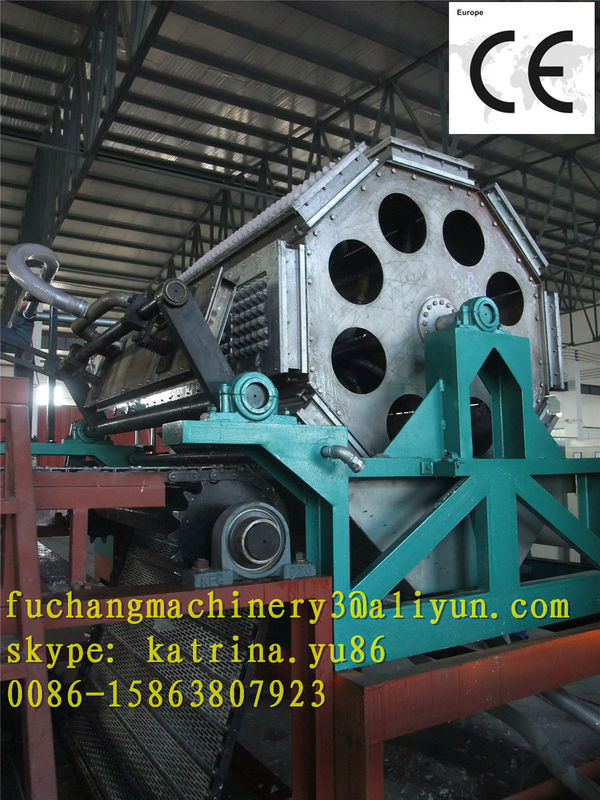

Roller Type Pulp Moulding Machinebring in advanced technology to develop and exploit our own FC brand products. It gets good comments from customer and gain social acceptance in society as a result of its excellent performance characteristic. The main part of our machine use stainless steel material, other auxiliary parts adopt domestic famous brand. We already develop automatic counting stacking and packing system etc.FC series pulp moulding machine features of high efficiency, low maintenance and energy saving .The pulp molding system can use all kinds of waste paper to produce high quality molded fiber products .With different moulds it can produce egg trays, vegetable trays, fruit trays, can trays, seedling tray, etc.
Product name | Roller type |
Model | FC-ZMG3-24 | FC-ZMG4-32 | FC-ZMG6-48 |
Output pcs/h | 2500-3000 | 3500-4000 | 5000-5500 |
Molding Mould/pcs | 24 | 32 | 48 |
Transfer Mould/pcs | 3 | 4 | 6 |
Principle of ourPulp Moulding Machine:
After take sanitary measures of the waste paper, put the waste paper into hydrapulper with water. After progress of batting pulp , grind pulp, size mixing, then send the pulp into molding machine by pump. The foaming mould continuously uniform rotation, the mould absorb the pulp by vacuum, the pulp which adsorb to the mould uniformly dehydrate by Filter and Dehydration hole, Guarantee product and the mould compatibility. when the foaming moulds matched with transfer moulds ,the automatic control system send compression air to control the forming molds, at the same time, transfer mold form a vacuum, the product is send to the transfer mould , then the transfer mold put the product on to the conveyer belt of drying line. The Egg Tray Machine line also equipped with automatic packing ,automatic stacking and counting system so the products can packing well.
The whole Pulp Moulding Machine
（ pulp making system+Forming system+Drying system+Packing system.）
(1):Pulping making system of Pulp Moulding Machine:
Pulping system including hydrapulpter, pulp pump, multi-function refiner machine, blender, control cabinert, ect.
It can make the paper pulp by the waste paper and water. And it is the first step in making process.
(2):Forming system of Pulp Moulding Machine:
Mainly part is the forming machine. We could produce the forming moulds and transfering moulds based on our customers request. The material of the mould could be Aluminum, Resin, Plastic(mostly choose aluminum).
(3):Drying line of Pulp Moulding Machine:
This is the very important in the whole of Egg Tray Machine line. When the egg tray be made over by the forming machine, the egg tray will be put on the drying line, they will through the drying channel, at last you can get the dry trays !
(4):Packing machine Pulp Moulding Machine:
This is the last step of Egg Tray Machine, when we get the finished tray from the drying line, we can packing the egg tray.
Some advantages of Pulp Moulding Machine:
(1):Fully automatic production line for paper egg tray, vegetable trays, fruit tray, can trays ,seeding trays ,cup holder, bottle tray etc..
(2):More than 10 years experience in this field, chinese reliable supplier and support by the chinese government and university.
(3):Most parts of Egg Tray Machine are famous brand in domestic ,some parts are Japan orGermany brand.
You can know more from our video link, pls contact me to get.
Finished Products
