Place of Origin: | Wuxi, China |
Brand Name: | Ronniewell |
Certification: | CE, ISO, Certification of original |
Model Number: | HP1020 |
Minimum Order Quantity: | 1 set |
---|---|
Price: | To be confirmed with us |
Packaging Details: | Mainframe naked, spare parts packed in case |
Delivery Time: | 30 working days after down payment |
Payment Terms: | 30% TT in advance, 70% TT before the shipment |
Supply Ability: | 10 sets per month |
Assembling Speed: | 0.4~2.5m/min | Color: | Customized |
---|---|---|---|
Application: | Steel Plate | Automation: | Automatic |
Product Name: | Shot-blasting Machine | Usage: | Industrial |
High Light: | h beam assembling machine,Assembly Machine |
Auto H-beam Production Line , Steel Plate Shot-blasting Machine
Quick Detail:

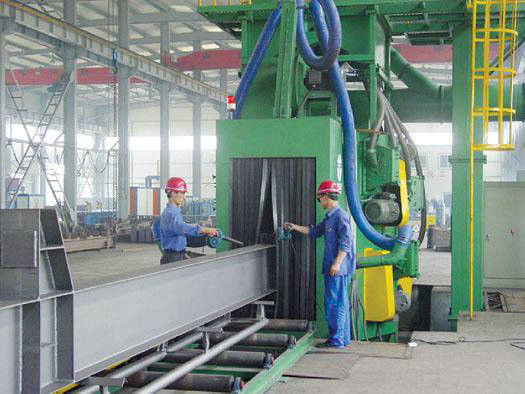

HP1020 H beam shot blasting machine is specially designed for the surface cleaning and intensifying of H beam.
Description:
Applications:
It can intensifying roughness and increase the adhesion effect. there are 8 shot-blasting device and anti-corrosion device on both sides of the blasting area. they will be installed at the best piece according to the characteristics of H beam. there is a protecting cover lining on the internal wall of the box. which is replace. the dust-removing system adopts the internationally advanced drum-type device ,characterized by high efficient ,low running resistance, small volume and light weight .the dust emission meets the relevant requirements of the country regarding environmental protection.
Specifications:
If you do not see anything that matches your requirements please contact us to discuss your needs further.
Item |
Spec. |
||
Work-piece specification |
Section sizes(W×H) |
1000×2000mm |
|
Plate width |
2000mm |
||
Plate thickness |
6~60mm |
||
Work-piece length |
3500~12000mm |
||
Quality standard |
Surface cleanness (GB8923-88) |
A-B Sa2~Sa2.5 |
|
Surface roughness (GB1031-83) |
20~50um |
||
Noise |
≤93dB |
||
Productivity (work-piece overpass speed) |
0.4~2.5m/min |
||
Conveyor |
MAX. Transporting speed |
4m/min |
|
Transporting speed |
0.4~4m/min |
||
Power |
2×2.2kW=4.4kW |
||
Max. loading |
1000kg/m |
||
Shots-blaster |
Model |
YP350 |
|
Quantity |
8 sets |
||
Blasting volume |
8×250kg/min |
||
Power |
8×15kW |
||
Lifter |
Transporting volume |
120t/h |
|
Power |
11kW |
||
Longitudinal spiral transporting unit |
Transporting volume |
120t/h |
|
Power |
7.5kW |
||
Transverse spiral transporting unit |
Transporting volume |
120t/h |
|
Power |
4kW |
||
Separator |
Separating volume of separator |
120t/h |
|
Shots-cleaning unit |
Power |
15kW |
|
Winding volume |
6350m3/h |
||
Initial adding volume |
6000kg |
||
Dust-collecting system |
Winding volume |
20400m3/h |
|
Power |
22kW |
||
Total power |
183.9kW |
Competitive Advantage:
