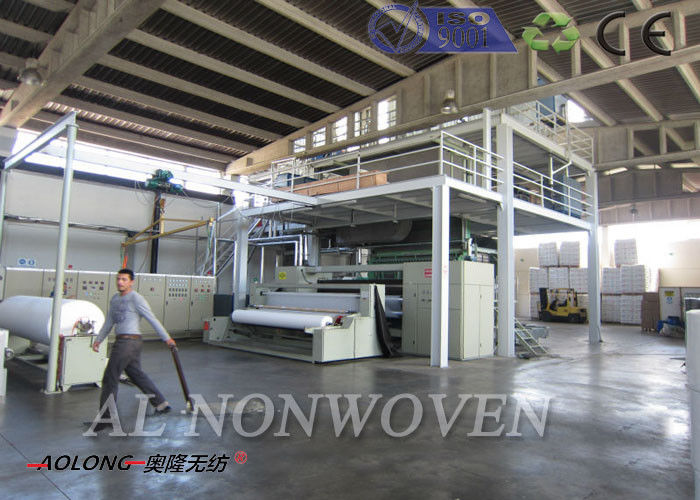

High Speed 300m/min SSS PP Non Woven Fabric production Line / Equipment Width 1600mm

Product Details:

Place of Origin:	China
Brand Name:	AL
Certification:	CE,ISO9001
Model Number:	AL-1600SSS,AL-2400SSS,AL-3200SSS

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	Negotiations
Packaging Details:	Wooden case; carton
Delivery Time:	150~180 days
Payment Terms:	T/T;L/C
Supply Ability:	20sets/year

Contact Now

Detailed Product Description

High Light:

PP Non Woven Fabric Making Machine

non woven fabric manufacturing machine

High Speed 300m/min SSS PP Non Woven Fabric production Line / Equipment Width 1600mm

Quick details

1> Model : AL-1600SSS , AL-2400SSS , AL-3200SSS

2> Width : 1600 to 3200mm

3> Fabric :GSM :15~250 g

4> Speed : 0~300m/min

6> Fineness : 1.5~2.5dtex

5> CE ; ISO9001

Parts Of PP Non Woven Fabric production Line :

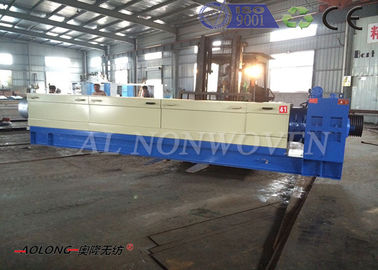

Recycle extruder---->Main extruder---->Filter---->Metering pump---->Monomer suction device--->Spinning box---->Quenching air chamber---->Stretching device---->Web former---->Calender---->Winder---->Slitter

Spun-Laid Process And Technical Flow Chart:

Additive(Recycling offcut fabric)---->Raw material---->Melting---->Filtering---->Measuring ---->Spinning---->Cooling---->Stretching---->Web forming---->Calendering---->Winding----> Cutting---->Final product

General Information For Non Woven Fabric production Line

Model No.	AL-1600SSS	AL-2400SSS	AL-3200SSS
Working Width	1600mm	2400mm	3200mm
Fabric GSM	15~250	15~250	15~250
Power Input	800KVA	950KVA	1600KVA
Consumption	600~800KW	600~800KW	600~800KW
Annual Output	4700T	6900T	9200T
Embossing Pattern	Diamond, Oval
Speed	10~300m/min
Fineness	1.5~2.5dtex

Final non woven fabric

High Speed 300m/min SSS PP Non Woven Fabric production Line / Equipment Width 1600mm 0

Fabric Usage

SSS spun bonded non woven fabric is composed of continuous filament, have good tensile strength and elongation, mainly for health and medical non woven products.
