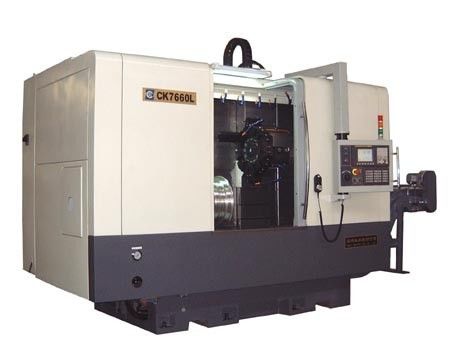

Horizontal CNC Lathe Machine for hub cutting , i. e. precision OD and ID turning
CK7660l CNC Lathe with complete functions is designed especially for hub cutting, i. e. precision OD and ID turning of 12"~18"hubs in car industry.
CK7660L CNC Lathe
Features:
This lathe, with complete functions is designed especially for hub cutting, i. e. precision OD and ID turning of 12"~18"hubs in car industry. The whole lathe is in column structure and uses high grade cast iron as major pieces. Since finite element force analysis is applied on main parts the lathe is rigid and remains table during speed cutting. Two guide ways are quality reinforced linear ways. A balance cylinder is fitted to X-axis column to distribute the weight of carriage, hence improves the machining accuracy and speed feeding capacity, and reduces the set-up time. Large-flow and chip-flushing cooling system can carry built up heat away immediately all the time and covey chips fluently. Environment protection is considered into design. The lathe is specially suitable for speed and precision turning of hubs in car and motorcycle in
Condition: |
New
|
Place of Origin: |
Shanxi,China (Mainland)
|
Brand Name: |
BOCHI
|
Model Number: |
CK7660L
|
Type: |
Horizontal
|
CNC or Not: |
CNC
|
Voltage: |
380V
|
Power(KW): |
30-37kw
|
Dimension(L*W*H): |
|
Weight: |
7000kg
|
Certification: |
ISO9001:2000
|
Warranty: |
one year
|
Main parameter and specifications:
Item | Unit | CK7660L | |
Capacity | Max swing over bed | mm | Φ750 |
Max swing over slide | mm | Φ600 | |
Max chuck type workpiece turning length | mm | 350 | |
Max turning dia. | mm | Φ630 | |
Guide way | Bed way span/section | mm | 420/45 |
Carriage way span/section | mm | 284/35 | |
Spindle | Spindle nose | GB5900.1 | A2-8 |
Spindle thru-hole | mm | Φ105 | |
Spindle bearing dia.(front/rear) | mm | Φ140/Φ130 | |
Spindle speed | r/min | 22-2200 | |
Main motor (cont./30min) | kw |
30(37)(FANUC servo) 22(30)(Greenland servo) |
|
Max spindle torque output | Nm | 550 | |
Hydraulic jig/cylinder | F52/MS200C(AUTO STRONG ) | ||
Carriage | X/Z-axis travel | 410/720 | |
X/Z-axis rapid traverse | mm /min | 20/24 | |
X/Z-axis servo motor | kw | 2.1/3.8 | |
X/Z-axis ball screw dia. | mm | Φ40/Φ50 | |
X/Z-axis screw bearing dia. | mm | Φ30/Φ40(NSK) | |
Turret | Number of station | 12(8)-station | |
Tool section (turning/boring) | mm | □25X25/Φ40 | |
Others | Power source | kVA | 60 |
Dimension (L×W×H) | mm | 3205X2075X2425 | |
Total weight | kg | 7000 |
