Beijing Automobile Spare Part Co.,Ltd.
High quality, Best service,Reasonable price.
Place of Origin: | CN |
Brand Name: | TF |
Certification: | CE , ISO |
Model Number: | LM1502 |
Minimum Order Quantity: | 1 Piece |
---|---|
Packaging Details: | Standard exporting wooden package |
Delivery Time: | 25 working days |
Payment Terms: | T/A, L/C, D/P, T/T, Western Union, MoneyGram,paypal |
Supply Ability: | 1000 Piece per month |
Voltage: | 380v | Power(W): | 18.5 / 22 Kw |
---|---|---|---|
Dimension(L*W*H): | 1200*2000*3000mm | Weight: | 28000Kg |
Certification: | CE, ISO9001, ISO14001 | Warranty: | 12 Months |
After-sales Service Provided: | Overseas Third-party Support | Max. Loading Weight On Work Table: | 28000kg |
Work Table: | 1200*2000mm | X/Y/Z Travel: | 10000/12000/10000mm |
Distance From Spindle To Table: | 115 - 915 Mm | Net Weight: | 28000kg |
Max . Spindle Speed: | 6000 Rpm | Customized: | Yes |
High Light: | CNC machining services,CNC precision machining |

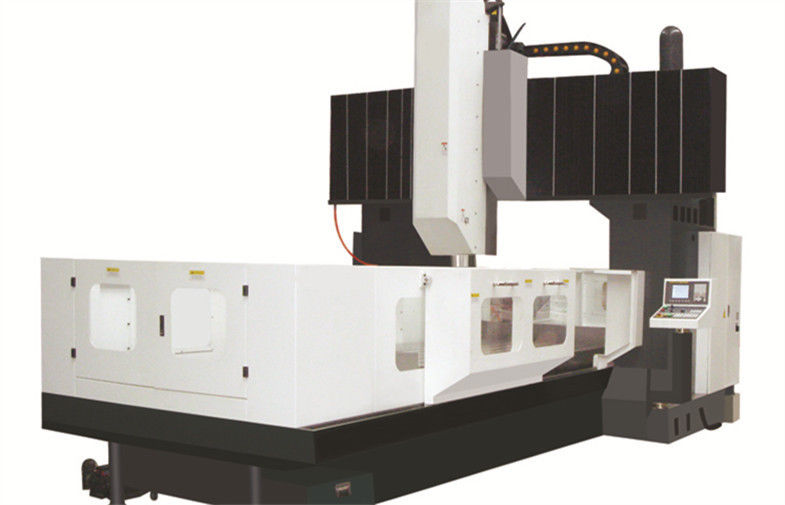

LM1502 Gantry Machine Center of system Fanuc with High Strength Cast Iron and Taiwan Spindle
Quick Detail:
● High strength cast iron
● Taiwan spindle
● Taiwan ball screw and locking nut
● Taiwan pressure cylinder
● Japanese NSK bearing
● Germany R+W coupling
● Automatic lubrication system
● Chip conveyor at optional
Applications:
This machine is applied to the large and medium-sized mechanical parts processing and complex mold making
By installed and clamped for one time, the work piece could be milled, drilled, tapped, reamed and many kinds of procedures
Specifications:
Specifications |
Unit |
LM1502 |
Work table size |
mm |
1200*2000(3000) |
Distance between two column |
mm |
1650 |
Load capacity of work table |
T |
3 |
T-slot (No.* slot width *spacing) |
mm |
7-28*150 |
X axis travel |
mm |
2000(3000) |
Y axis travel |
mm |
1650 |
Z axis travel |
mm |
800 |
Outer diameter of spindle |
mm |
φ190 |
Spindle speed |
rpm |
6,000 |
Spindle motor |
kW |
18.5/22 |
Cutting feed speed |
mm/min |
10-10000 |
X axis rapid feed speed |
m/min |
10 000 |
Y axis rapid feed speed |
m/min |
12 000 |
Z axis rapid feed speed |
m/min |
10 000 |
Position accuracy |
mm |
0.025 / 1 000 |
Reposition accuracy |
mm |
0.015 / 1 000 |
System |
|
FANUC |
NW |
T |
28 |
Warranty
1. engineers are available to do oversea machinery service. In some countries, we have oversea agent doing
after-sale service in time and professionally.
2. 24 hours heart to heart service on-line or mobile.
3. training in our factory and on-line are free of cost.
4. warranty is 12 months, small broken parts are free of cost to replace, spare parts are delivered with machine
for customer convenience.
5. We offer best agent price and distributer price
