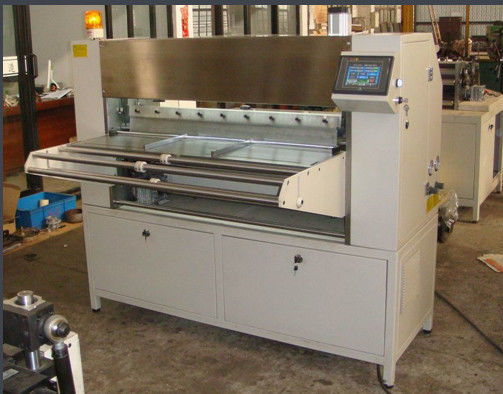

0.75KW 380V Filter Paper Pleating Machine Pleating Height 5mm - 55mm

Decoiler 2. Slitting machine 3. Marking machine 4. Pleating Machine

This type of machine is capable for one-layer or multi-layered filter media pleating.

It is well designed for filtration media, i. E, impregnated filter paper, glass fiber (HEPA Filters) synthetic media, various types of stainless steel wire mesh as well as combination of fabric and wire mesh duly stitched together.

It can also pleat paper card board, copper, aluminium and other metallic foils as may be required.

SLITTING MACHINE 1100 Type

1. Paper feeding speed: 0.5 - 12m/min
2. Width available: 35 - 1100mm
3. Power: 0.75KW 380V
4. Machine weight: 400KG
5. Machine dimension: 1250mm x 680mm x 1120mm

MARKING MACHINE 1100 Type

1. Marking height: 8 - 55mm
2. Width maximum: 1050mm
3. Power: 1.5KW 380V
4. Machine weight: 450KG
5. Machine dimension: 1500mm x 850mm x 1200mm

PLEATING MACHINE 1100 Type

1. Pleating height: 5 - 55mm (or 15 -120mm)
2. Layers pleated: 1 - 5 (Light type and strengthened type)
3. Pleating speed: 20 - 150 pleats/min
4. Max. Pleating width: 1100mm
5. Thickness of material: 0.5 - 3mm
6. Speed adjustable motor: 1.5KW
7. Power: 1.5KW 380V Heater Power: 3KW Heat Temperature: 160° C
8. Machine weight: 730KG
9. Machine dimension: 1430mm x 1550mm x 1400mm
