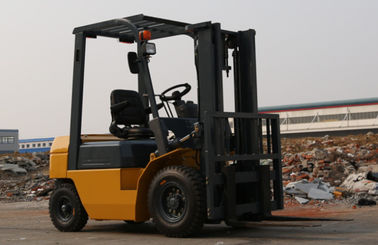

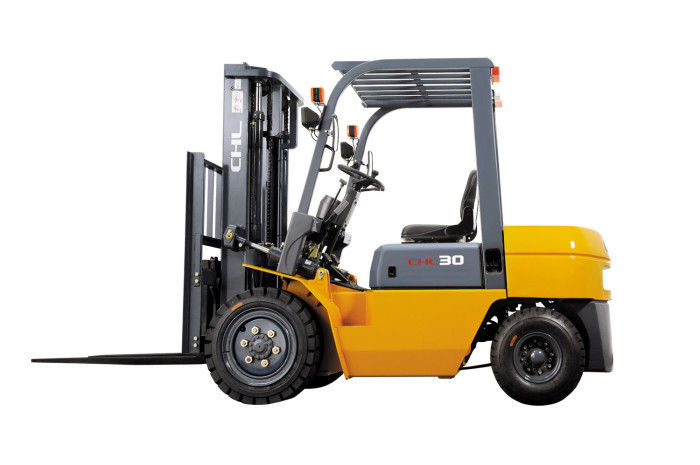

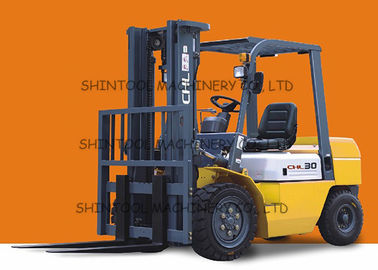

3T Internal combustion Gasoline Forklift Truck with HELI transmission
Quick Detail:
1. Product Category: Material Handling
2. Forklift Power Type: Gasoline
3. Product Use: Loading & unloading cargo, moving cargo in pallets
3. 3000kg rated capacity, 3000mm lifting height, 500mm load center
4. Japanese NISSAN K25 engine and Chinese BAIYANG engine.
5. Chinese HELI hydraulic transmission
6. Standard with Electric-hydraulic Directional Control Valve
Gasoline forklift truck Description:
Anhui Heli Co., Ltd, was originally founded in 1958. During the past 55 years' development, Anhui Heli
always focus on forklift business. We have been No. 1 in China since 1991, and ranked No. 8 in the world
in 2013.
CHL is one forklift brand of Anhui Heli, mainly to supply reliable and affordable lift trucks. Based on the
Anhui Heli's advanced technology and equipment, CHL trucks' quality is at TOP level in China. Mass
production helps to lower cost, SAP system and Lean Production ensure high quality. Those promise CHL
trucks always be reliable and Competitive.
Gasoline forklift truck Applications:
Material Handling, loading & unloading cargo, moving cargo in pallets in warehouse, factory building,
storage yard, airport, sea port, super market.
3.0 Tonne Gasoline Fork Lift Truck Specification:
|
Model
|
CPQ30
|
CPQD30
|
|
Power Type
|
|
Gasoline
|
|
Rated Capacity
|
kg
|
3000
|
|
Load Center
|
mm
|
500
|
|
Driving Mode
|
|
Sit-on type
|
|
Overall max. lifting height(with backrest)
|
h4
|
mm
|
4262
|
|
Max. Lifting height
|
h3
|
mm
|
3000
|
|
Height mast retracted(upright)
|
h1
|
mm
|
2065
|
|
Free lift height
|
h2
|
mm
|
160
|
|
Backrest height(from upper face of forks)
|
h8
|
mm
|
1227
|
|
Overall height(overhead guard)
|
h6
|
mm
|
2190
|
|
Overall length(without forks)
|
(L1/L2)
|
mm
|
3752/2682
|
|
Front overhang
|
X
|
mm
|
479
|
|
Rear overhang
|
L4
|
mm
|
495
|
|
Wheel base
|
L5
|
mm
|
1700
|
|
Coupler height
|
h5
|
mm
|
310
|
|
Min. groud clearance under mast
|
m1
|
mm
|
135
|
|
Overall width
|
B
|
mm
|
1225
|
|
Lateral fork adjustment(Outside of fork)
|
R
|
mm
|
1060/250
|
|
Inside turning radius
|
Wa
|
mm
|
2400
|
|
Outside turning radius
|
V
|
mm
|
200
|
|
Min. intersecting aisle
|
Ra
|
mm
|
2380
|
|
Tilting angles(forward/backward)
|
α /β
|
|
6° /12°
|
|
Fork Size
|
axbxc
|
mm
|
1070*125*40
|
|
Max. Traveling speeds(laden/unladen)
|
km/h
|
19/20
|
|
Lifting Speeds(laden/unladen)
|
mm/s
|
450/500
|
|
Lowering Speeds(laden/unladen)
|
mm/s
|
450/550
|
|
Service Mass
|
kg
|
4270
|
|
Load Wheel. laden(Front/Rear)
|
kg
|
6543/727
|
|
Load Wheel. unladen(Front/Rear)
|
kg
|
1708/2562
|
|
Wheel (Front/Rear) X=Driving Wheel
|
|
2X/2
|
|
Tyre(Front/Rear)
|
|
Pneumatic type
|
|
Service Brake
|
|
Hydraulic-Foot Pedal
|
|
Paking Brakes
|
|
Mechanical-Hand Lever
|
|
Battery Voltage/Capacity
|
V/Ah
|
12/80
|
Competitive Advantage:
- 15 months (2000 hours) quality warranty, all kinds of spare parts are available.
- CHL is HELI factory new brand. New brand must be reasonable price and good quality.
- CHL forklift made in ANHUI HELI factory, the same assembling line of HELI brand forklift. CHL brand forklift`s quality is the same with HELI brand.
- CHL forklift all use full casting steering axle. It is only one forklift factory can control this full casting technology in China. Advantage of the full cast of the bridge is capable of oil spill prevention, anti-vibration, anti-rust, doubled long service life than other welding steering axle.
- CHL forklift use HELI Hydraulic Transmission: Based on TCM technology, better than TCM. Equipped with Durable transmission, Intake system & intake silencer, Automatic engine preheating system. It has been validated by over twenty years` test in the world market.
- Our CHL forklift more then 70% spare parts produce by self. And they develop SAP system that can guarantee the forklift sold have reliable parts supply and quality. So, in the whole forklift life, you can get the Genuine Parts from us or your market.
3.0T Gasoline forklift truck Detailes:
1. Reliable drive system
As the most reliable transmission system produced by HELI, it has been validated by over twenty years'
experience in the world market. Meanwhile, various ancillary device of the power system ensure the
reliability effectively.
2. Air intaking system
Air suction inlet installing on top of the overhead guard brace far away from the dust produced when
travelling. Cleaner air sucked prolonging engine service lift.
3. Reliable casting steering axle
Compact structure, small deformation when loading
Shock absorber installed improving driving comfort
Dust proof and water proof structure increasing service life and reliability effectively
Low maintenance cost in later stage
4. Ease of service
Installation of heat resistance and sound absorbing material and rubber sealing
Easy lift engine hood with wide 80 degree opening
Engine hood assist damper with lock device
