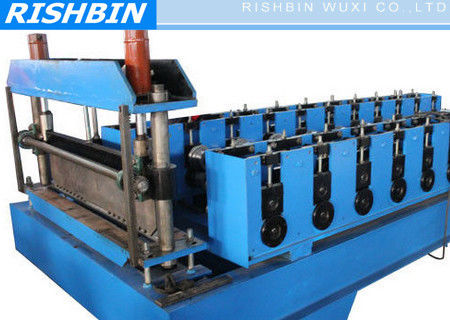

22KW Chain Drive Transmission COMFLOR Deck Roll Forming Machine with 24 - 28 Stations
Composition of Machine
Roll forming main machine…………………………….1 unit
10T manual de-coiler…………………………………….1 unit
Control panel…………………………………………...1 unit
Hydraulic station…………………………………… …1 unit
Manual out table………………………………… ……1 unit
Spare tools……………………………………………...one box
Specifications of COMFLOR Decking Roll Forming Machine
1: Coil width: depend on profiles
2: Working speed: 12m—15m/min (not contain cutting)
3: Roll station: 24-28 stations
4: Material of roller: GCr12 forged steel, polished and coated with hard chrome, 58-62 HRC
5: Material of main shaft: S45C forged steel, diameter roller: Ф80mm
6: Press roller: make press is ensure the end product stronger.
- Material of press roller: Gcr12 forge steel, polished and coated with chrome
- The press roller is in the last station
7: Feeding and guide: adopt hand wheel to easy adjust the feeding with
8: Main power: 22KW (2 x11kw)
9: Forming thickness: 0.7mm—1.2mm
10: Transmission: by one inch double chain
11: Size of machine: about 13000×1700×1300mm L x W x H (machine in two parts)
12: Weight: about 11000Kgs
13: Color: blue and yellow
14: Structure of frame: H beam steel plate
15: Cutting:
(1) Cutting type: hydraulic cutting
(2) Cutting after forming: Cut the sheet after roll forming to required length
(3) Cutting motion: The main machine automatically stops and the cutting will take
place. After the cutting, the main machine will automatically start.
(4) Material of blade: CR12 with heat treatment
(5) Length measuring: Automatic length measuring
(6) Tolerance of length: 3m+/- 1.5mm
Forming Process
Decoiling—feeding—guide----roll forming----cut to length—product packing
The external of Machine:
Applications:
Steel Roof Deck sheets can be used as a composite floor system or as a permanent form work.
It binds withconcrete slab and together forms a part of the floor structure. The interlocking
between the concrete and theroof floor deck occurs by a system of embossment and ribs that
are built into the deck, creating a reinforced concert slab. This fast and simple installation using
high strength product, gives immediate access to a working platform of permanent form and positive
reinforcement. With its advantage, the steel roof deck is widely used various steel constructions
1. Versatility
2. Structural Strength with Less Weight
3. Attractive Appearance
4. All Weather Construction
5. Proven Durability
6. Economy and Value
Steel structural floor panel is the type of steel construction material with character of low light,
hard, easy to install, which extensively apply in constructing skyscraper, residential building
and bridge. Our World Technology Machinery steel structural floor panel with the feature of
reliable, convenient operation, automatic can be used in various steel structural floor panels forming.
We can manufacture as per customer provided drawings or real objects of sectional materials,
customization is welcome.
The following are some floor decking panel profiles as reference.
