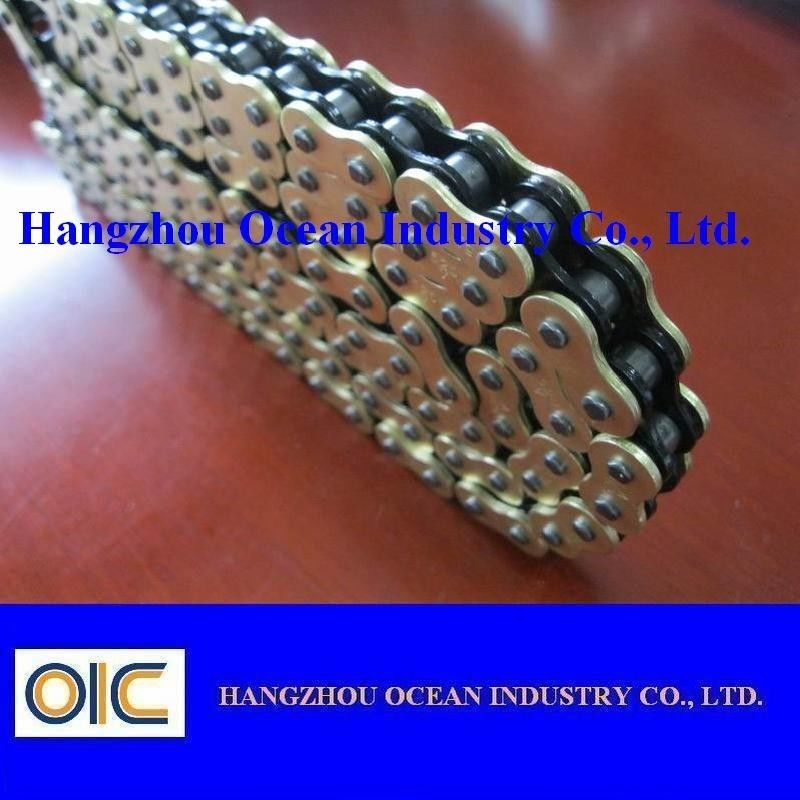

520-120L Motorcycle O Ring Chain In Black and Gloden Colour

Product Details:

Place of Origin:	CHINA
Brand Name:	mw
Certification:	ISO
Model Number:	520-120L

Payment & Shipping Terms:

Minimum Order Quantity:	100M
Price:	USD1-10/M
Packaging Details:	STANDARD SEA WORTHY PACKAGE
Delivery Time:	30 DAYS
Payment Terms:	L/C, D/A, D/P, T/T, Western Union
Supply Ability:	10000M/DAY

Contact Now

Detailed Product Description

520-120L Motorcycle O Ring Chain Transmission Spare Parts In Black and Gloden

520-120L Motorcycle O Ring Chain In Black and Gloden Colour

We also supply motorcycle chain 25, 25H, 06B, 415, 415H, 420, 420H, 428, 428H, 520, 520H, 525, 525H, 530, 530H, 630, O ring and X ring chain and so on, our chains are both excellent in quality and reasonable in price

1. Good quality and reasonable price

2. Has taken measure to better antirust

3. Long-life duration and high strength

4. Pre-stretching and running for each motor chain before delivery

5. Riveting: Two sides riveting or four sides riveting

6. All parts are heat treatment (quenching and tempering) and controlled in a reasonable tolerance range

7. We can also produce as your sample or drawing

8. Packing: According to your demand to design

Specifications are as follows:

Chain No.	Pitch	Roller diameter	Width between inner plates	Pin diameter	Pin length		Inner plate depth	Plate thickness	Ultimate tensile strength	Average tensile strength	Fatigue
	p	d1 max	b1 min	Ld2 max	max	Lc max	h2 max	T1	Q min	Q0	amx
	mm	mm	mm	mm	mm	mm	mm	mm	kn	kn	kgf
06B	9.525	6.35	5.72	3.28	13.2	14.2	8.2	1.3	9	10
415	12.7	7.75	4.88	3.96	12.5	13.9	10.4	1.3	11.6	12.5	380
415H	12.7	7.75	4.88	3.96	13.1	14.5	11.5	1.5	15.6	16.1	380
420	12.7	7.77	6.35	3.96	14.5	16.1	12	1.5	16	16.5	380
420H	12.7	7.77	6.35	3.96	15.7	17.4	12	1.8	17	17.5	380
428	12.7	8.51	7.75	4.45	16.5	18.05	12	1.6	17.8	18.5	380
428H	12.7	8.51	7.75	4.45	18.3	19.08	12	2.03	20.6	21.1	450
428HG	12.7	8.51	7.75	4.51	18.9	20.1	12.3	2	20.6	21.5	450
520	15.875	10.16	6.35	5.08	17.7	19	15	2	26.5	29.5	650
520H	15.875	10.16	6.35	5.24	18.9	20.5	15	2.42	30	31	700
525	15.875	10.16	7.94	5.08	18.8	20.5	15	2.03	26.6	29	650
525H	15.875	10.16	7.74	5.24	20.4	22.2	15	2.42	30	31	700
530	15.875	10.16	9.4	5.08	20.9	22.2	15	2	26.5	29.7	650
530H	15.875	10.16	9.4	5.08	21.9	24.2	15	2.42	30	31.5	700
630	19.05	11.91	9.4	5.94	22.2	24	18	2.4	35	37	800
